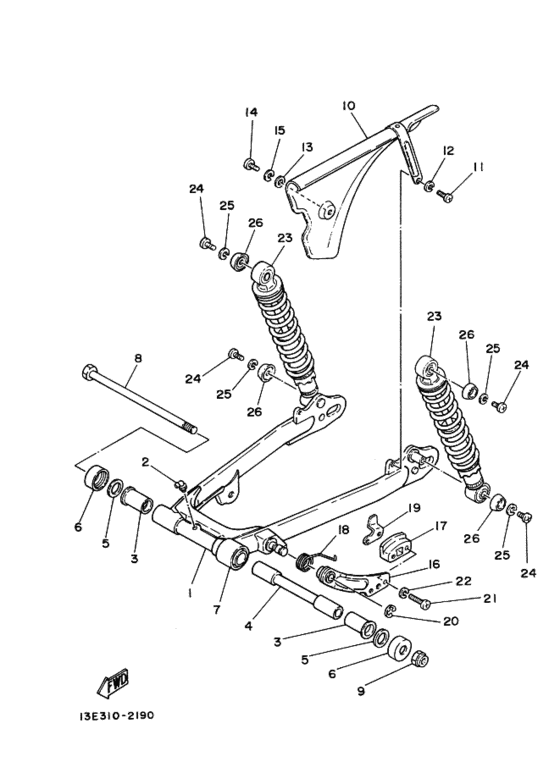

ﾘﾔｱｰﾑ. ﾘﾔｻｽﾍﾟﾝｼﾖﾝ Diagram Yamaha TY
- Year
- 1980
- Colour
- White (WW; 0036)
- Model code
- 5250
- Sales region
- Japan (010)
- Engine Capacity
- 175
- Color Variant
- A
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-22110-00-35
Rear Arm
リヤアームコンプリート; シルバー |
525-22110-00-35 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
リヤアームコンプリート; シルバー |
999-99999-99-00 |
— | ||
|
2
|
2
937-00060-05-00 Nipple, Greaseニツプル，グリース; |
937-00060-05-00 |
from US $5.38 |
||
|
3
|
3
90386-18028-00 Bush |
90386-18028-00 |
from US $8.28 |
||
|
4
|
4
90389-12002-00 Bush |
90389-12002-00 |
from US $28.19 |
||
|
5
|
5
401-22127-00-00 ShimＵＮ |
401-22127-00-00 |
from US $3.12 |
||
|
6
|
6
401-22128-01-00 Cover, Thrust 1シール，ガード; |
401-22128-01-00 |
from US $8.28 |
||
|
7
|
7
437-22151-00-00 Seal, Guardシール，ガード; |
437-22151-00-00 |
US $29.89 |
||
|
8
|
8
525-22141-00-00 Shaft, Pivot |
525-22141-00-00 |
US $46.76 |
||
|
9
|
9
90185-12046-00 Nut, Self-Locking |
90185-12046-00 |
from US $6.38 |
||
| replacement | |||||
|
9
|
9
90185-12134-00 Nut, Self-Locking |
90185-12134-00 |
from US $6.30 |
||
|
10
|
10
525-22311-01-35
Case, Chain
ケース，チエーン; シルバー |
525-22311-01-35 |
— | ||
|
11
|
11
98501-05010-00 Screw, Pan Head |
98501-05010-00 |
US $1.21 |
||
| replacement | |||||
|
11
|
11
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
12
|
12
929-01051-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01051-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-05100-00 Washer, Springワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
13
|
13
90201-06067-00 Washer, Plateワツシヤ，プレート; |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
13
|
13
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.86 |
||
|
14
|
14
98501-05008-00 Screw, Pan Head |
98501-05008-00 |
from US $1.07 |
||
| replacements | |||||
|
14
|
14
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
14
|
14
985-80050-08-00 Screw, Pan Head |
985-80050-08-00 |
from US $1.50 |
||
|
15
|
15
929-01051-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01051-00-00 |
— | ||
| replacement | |||||
|
15
|
15
92990-05100-00 Washer, Springワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
16
|
16
434-22179-00-93
Arm, Tensioner
アーム，テンシヨナ; クロムメツキ |
434-22179-00-93 |
— | ||
| replacement | |||||
|
16
|
16
434-22179-00-00
Arm, Tensioner
アーム，テンシヨナ; クロムメツキ |
434-22179-00-00 |
— | ||
|
17
|
17
493-22178-01-00
Tensioner
|
493-22178-01-00 |
— | ||
|
18
|
18
90508-32140-00
Spring, Torsion
スプリング，トーシヨン; |
90508-32140-00 |
— | ||
|
19
|
19
434-22153-00-91
Guard, Chain
ガード，チエーン; ユニクロ （コウタク） |
434-22153-00-91 |
— | ||
| replacement | |||||
|
19
|
19
434-22153-00-00
Guard, Chain
ガード，チエーン; ユニクロ （コウタク） |
434-22153-00-00 |
— | ||
|
20
|
20
93430-10015-00 Circlipサークリツプ; |
93430-10015-00 |
from US $2.41 |
||
|
21
|
21
98501-05025-00 Screw, Pan Head |
98501-05025-00 |
US $1.35 |
||
| replacement | |||||
|
21
|
21
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
22
|
22
929-01051-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01051-00-00 |
— | ||
| replacement | |||||
|
22
|
22
92990-05100-00 Washer, Springワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
23
|
23
525-22210-00-00
Shk/abs Assembly, Rear
|
525-22210-00-00 |
— | ||
|
24
|
24
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
24
|
24
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
25
|
25
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
25
|
25
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
26
|
26
90207-06009-00 Washer, Finish |
90207-06009-00 |
from US $7.37 |
||
