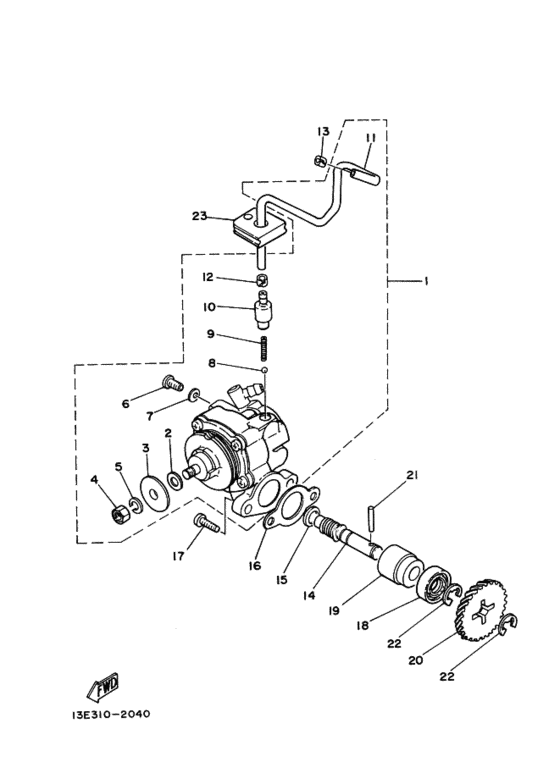

Oil pump Diagram Yamaha TY
- Year
- 1980
- Colour
- White (WW; 0036)
- Model code
- 5250
- Sales region
- Japan (010)
- Engine Capacity
- 175
- Color Variant
- A
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-13101-01-00 Oil Pump Assembly |
525-13101-01-00 |
from US $272.34 |
||
|
2
|
2
137-13137-00-03 Shim (T=0.3)．．シム，プランジヤ ; ０３Ｔ; ＵＲ |
137-13137-00-03 |
from US $3.26 |
||
|
2
|
2
137-13137-00-05 Shim (T=0.5)．．シム，プランジヤ ; ０５Ｔ; ＵＲ |
137-13137-00-05 |
from US $3.26 |
||
|
2
|
2
137-13137-00-10 Shim (T=1.0)．．シム，プランジヤ ; １０Ｔ; ＵＲ |
137-13137-00-10 |
from US $3.26 |
||
|
3
|
3
137-13138-01-00 Plate, Adjusting．プレート，アジヤステイング; |
137-13138-01-00 |
from US $7.93 |
||
|
4
|
4
953-01056-00-00
Nut
．ナツト; |
953-01056-00-00 |
— | ||
| replacement | |||||
|
4
|
4
95380-05600-00 Nut．ナツト; |
95380-05600-00 |
from US $1.42 |
||
|
5
|
5
929-01051-00-00
Washer, Spring
．ワツシヤ，スプリング; |
929-01051-00-00 |
— | ||
| replacement | |||||
|
5
|
5
92990-05100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
6
|
6
989-01040-08-00
Screw, Bind
．スクリユ，バインド; |
989-01040-08-00 |
— | ||
| replacement | |||||
|
6
|
6
98980-04008-00 Screw, Bind．スクリユ，バインド; |
98980-04008-00 |
from US $1.21 |
||
|
7
|
7
90430-04004-00 Gasket．ガスケツト; |
90430-04004-00 |
from US $1.28 |
||
|
8
|
8
93505-32002-00 Ball．ボール; |
93505-32002-00 |
from US $1.84 |
||
|
9
|
9
278-13169-00-00
Spring, Check Ball
．スプリング，チエツクボール; |
278-13169-00-00 |
— | ||
| replacement | |||||
|
9
|
9
90501-02018-00 Spring, Compression．スプリング，チエツクボール; |
90501-02018-00 |
from US $3.97 |
||
|
10
|
10
402-13552-00-00 Nozzle．ノズル; |
402-13552-00-00 |
from US $9.07 |
||
|
11
|
11
90445-05278-00 Hose (L200)．ホース; |
90445-05278-00 |
from US $2.98 |
||
| replacements | |||||
|
11
|
11
904-4505N-13-00 Hose (L200)．ホース; |
904-4505N-13-00 |
from US $1.34 |
||
|
11
|
11
904-4505M-07-00 Hose (L700)．ホース; |
904-4505M-07-00 |
from US $4.34 |
||
|
12
|
12
90468-02033-00 Clip．クリツプ; |
90468-02033-00 |
from US $1.35 |
||
|
13
|
13
90468-02033-00 Clip |
90468-02033-00 |
from US $1.35 |
||
|
14
|
14
525-13175-01-00
Shaft, Worm
シヤフト，ウオーム; |
525-13175-01-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
シヤフト，ウオーム; |
999-99999-99-00 |
— | ||
|
15
|
15
90201-08624-00 Washer, Plateワツシヤ，プレート; |
90201-08624-00 |
from US $1.70 |
||
|
16
|
16
126-13116-00-00 Gasket, Pump Caseガスケツト，ポンプケース; |
126-13116-00-00 |
from US $1.70 |
||
| replacement | |||||
|
16
|
16
126-13116-01-00 Gasket, Pump Caseガスケツト，ポンプケース; |
126-13116-01-00 |
from US $1.70 |
||
|
17
|
17
985-01050-16-00
Screw, Pan Head
|
985-01050-16-00 |
— | ||
| replacements | |||||
|
17
|
17
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.07 |
||
|
17
|
17
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
18
|
18
93101-10002-00 Oil Sealオイルシール; |
93101-10002-00 |
from US $2.32 |
||
|
19
|
19
137-13176-00-00 Metal, Worm Shaft Outerメタル，ウオームシヤフトアウタ; |
137-13176-00-00 |
from US $9.59 |
||
|
20
|
20
353-13178-00-00
Gear, Pump Drive
ギア，ポンプドライブ ; ２８Ｔ |
353-13178-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
ギア，ポンプドライブ ; ２８Ｔ |
999-99999-99-00 |
— | ||
|
21
|
21
93603-22028-00 Pin, Dowel |
93603-22028-00 |
from US $1.66 |
||
|
22
|
22
93430-08006-00 Circlipサークリツプ; |
93430-08006-00 |
from US $1.42 |
||
| replacement | |||||
|
22
|
22
99001-08600-00 Circlipサークリツプ; |
99001-08600-00 |
from US $1.42 |
||
|
23
|
23
525-13174-00-00 Holder, Oil Pipeホルダー，オイルパイプ; |
525-13174-00-00 |
from US $7.93 |
||
| replacement | |||||
|
23
|
23
525-13174-01-00 ホルダー，オイルパイプ; |
525-13174-01-00 |
US $9.13 |
||
