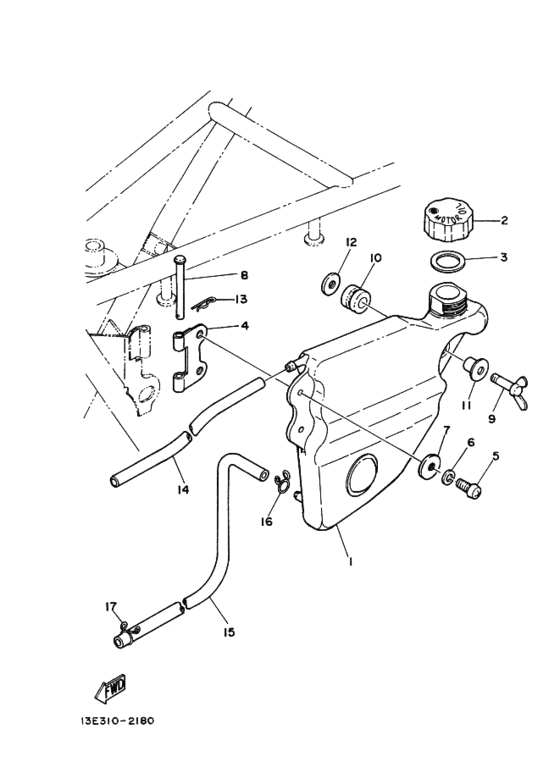

Oil tank Diagram Yamaha TY
- Year
- 1980
- Colour
- White (WW; 0036)
- Model code
- 5250
- Sales region
- Japan (010)
- Engine Capacity
- 175
- Color Variant
- A
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-21751-00-00
Tank, Oil
|
525-21751-00-00 |
— | ||
|
2
|
2
434-21771-00-00 Body, Cap |
434-21771-00-00 |
from US $10.78 |
||
|
3
|
3
90430-18067-00 Gasket |
90430-18067-00 |
from US $4.68 |
||
|
4
|
4
525-21797-00-00
Hinge
|
525-21797-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
92501-06014-00 Screw, Pan Head (97801-06014) |
92501-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
5
|
5
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
6
|
6
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
6
|
6
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
7
|
7
90201-06067-00 Washer, Plateワツシヤ，プレート; |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
7
|
7
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.86 |
||
|
8
|
8
91701-05055-00 Pin |
91701-05055-00 |
from US $2.98 |
||
|
9
|
9
90122-06001-00 Bolt, Wing |
90122-06001-00 |
from US $3.54 |
||
| replacement | |||||
|
9
|
9
901-22060-21-00
Bolt, Wing (38W)
|
901-22060-21-00 |
— | ||
|
10
|
10
904-80141-02-00
Grommet
|
904-80141-02-00 |
— | ||
| replacement | |||||
|
10
|
10
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.56 |
||
|
11
|
11
903-87063-88-00
Collar
カラー; |
903-87063-88-00 |
— | ||
| replacement | |||||
|
11
|
11
90387-06158-00 Collarカラー; |
90387-06158-00 |
from US $1.56 |
||
|
12
|
12
90179-06013-00 Nut, Spec''l Shape |
90179-06013-00 |
from US $2.30 |
||
|
13
|
13
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
14
|
14
90445-09117-00 Hose (L540)ホース; |
90445-09117-00 |
US $10.13 |
||
| replacement | |||||
|
14
|
14
90445-09361-00
Hose (L540)
ホース; |
90445-09361-00 |
— | ||
|
15
|
15
90445-09111-00 Hose (L675)ホース; |
90445-09111-00 |
from US $19.84 |
||
| replacement | |||||
|
15
|
15
904-45090-F6-00 Hose (L1500)ホース; |
904-45090-F6-00 |
from US $6.30 |
||
|
16
|
16
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
16
|
16
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
16
|
16
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
17
|
17
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
