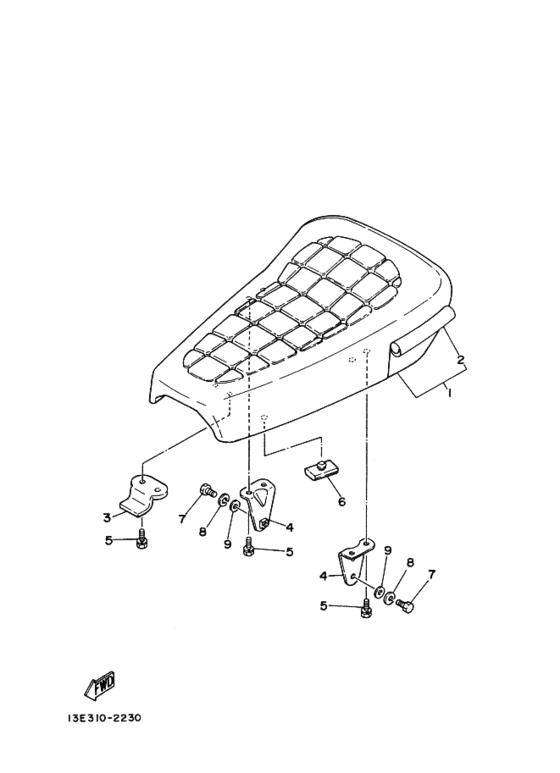

Seat Diagram Yamaha TY
- Year
- 1980
- Colour
- White (WW; 0036)
- Model code
- 5250
- Sales region
- Japan (010)
- Engine Capacity
- 175
- Color Variant
- A
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-W2471-00-00
Single Seat Assembly
シングルシートアセンブリ; |
525-W2471-00-00 |
— | ||
|
2
|
2
525-24711-00-00
Cover, Single Seat
．カバー，シングルシート; |
525-24711-00-00 |
— | ||
|
3
|
3
2Y0-24748-00-00 Bracket, Seatブラケツト，シート; |
2Y0-24748-00-00 |
US $18.84 |
||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
ブラケツト，シート; |
999-99999-99-00 |
— | ||
|
4
|
4
509-24738-01-00
Bracket, Seat
ブラケツト，シート; |
509-24738-01-00 |
— | ||
|
5
|
5
90101-06304-00 Bolt |
90101-06304-00 |
from US $4.82 |
||
|
6
|
6
509-24724-00-00 Damper, Seatダンパ，シート; |
509-24724-00-00 |
from US $5.10 |
||
|
7
|
7
97301-06014-00 Bolt, Hexagon |
97301-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
7
|
7
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.84 |
||
|
8
|
8
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
8
|
8
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
9
|
9
929-01066-00-00
Washer
ワツシヤ，プレート; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
9
|
9
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
9
|
9
90201-061A5-00 Washer, Plate (4H7)ワツシヤ，プレート; |
90201-061A5-00 |
from US $1.84 |
||
|
9
|
9
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.04 |
||
