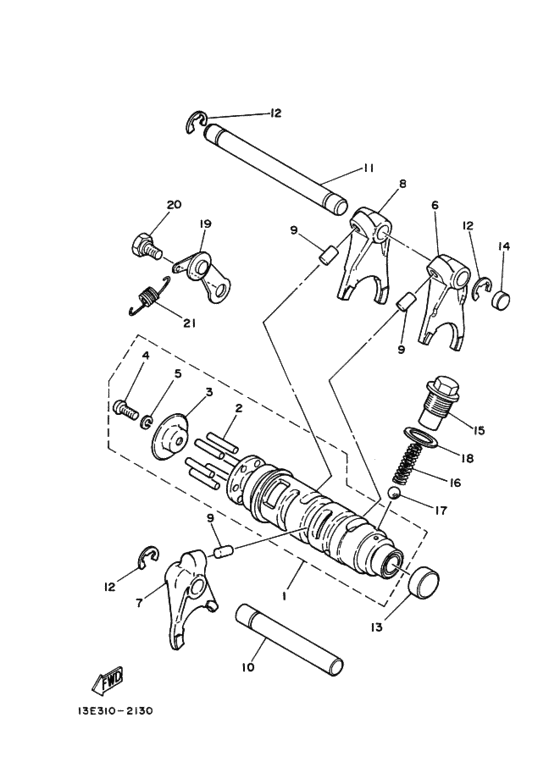

Shift Cam & Fork Diagram Yamaha TY
- Year
- 1980
- Colour
- White (WW; 0036)
- Model code
- 5250
- Sales region
- Japan (010)
- Engine Capacity
- 175
- Color Variant
- A
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1G8-18540-00-00
Shift Cam Assembly
|
1G8-18540-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
93604-22050-00 Pin, Dowel．ピン，ダウエル; |
93604-22050-00 |
from US $1.84 |
||
|
3
|
3
525-18561-00-00
Plate, Side 1
．プレート，サイド １; |
525-18561-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
．プレート，サイド １; |
999-99999-99-00 |
— | ||
|
4
|
4
98501-05012-00 Screw, Pan Head．スクリユ，パンヘツド; |
98501-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
4
|
4
98517-05012-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05012-00 |
from US $1.21 |
||
|
4
|
4
98580-05012-00 Screw, Pan Head．スクリユ，パンヘツド; |
98580-05012-00 |
from US $1.34 |
||
|
5
|
5
929-01051-00-00
Washer, Spring
．ワツシヤ，スプリング; |
929-01051-00-00 |
— | ||
| replacement | |||||
|
5
|
5
92990-05100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
6
|
6
525-18511-00-00
Fork, Shift 1
フオーク，シフト １; |
525-18511-00-00 |
— | ||
|
7
|
7
525-18512-00-00
Fork, Shift 2
フオーク，シフト ２; |
525-18512-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
フオーク，シフト ２; |
999-99999-99-00 |
— | ||
|
8
|
8
525-18513-00-00
Fork, Shift 3
フオーク，シフト ３; |
525-18513-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
フオーク，シフト ３; |
999-99999-99-00 |
— | ||
|
9
|
9
90250-06013-00 Pin, Straight |
90250-06013-00 |
from US $1.70 |
||
|
10
|
10
257-18531-00-00 Bar, Shift Fork Guide 1バー，シフトフオークガイド １; |
257-18531-00-00 |
US $12.78 |
||
|
11
|
11
363-18535-00-00 Bar, Shift Fork Guide 2バー，シフトフオークガイド ２; |
363-18535-00-00 |
from US $11.02 |
||
|
12
|
12
93430-08006-00 Circlipサークリツプ; |
93430-08006-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
99001-08600-00 Circlipサークリツプ; |
99001-08600-00 |
from US $1.42 |
||
|
13
|
13
90338-20023-00 Plug |
90338-20023-00 |
from US $4.68 |
||
|
14
|
14
90338-10063-00
Plug, Special Shape
|
90338-10063-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
90109-14385-00 Bolt |
90109-14385-00 |
from US $9.63 |
||
|
16
|
16
90501-12083-00 Spring, Compression |
90501-12083-00 |
US $1.62 |
||
| replacement | |||||
|
16
|
16
90501-12750-00 Spring, Compression |
90501-12750-00 |
US $1.58 |
||
|
17
|
17
93505-16006-00 Ballボール; |
93505-16006-00 |
from US $1.70 |
||
|
18
|
18
137-15353-00-00
Gasket, Drain
ガスケツト，ドレーン; |
137-15353-00-00 |
— | ||
| replacement | |||||
|
18
|
18
4F4-14766-00-00 Washer, Protector (Gasket)ガスケツト，ドレーン; |
4F4-14766-00-00 |
from US $5.95 |
||
|
19
|
19
525-18140-00-00
Stopper Lever Assy
ストツパレバーアセンブリ; |
525-18140-00-00 |
— | ||
|
20
|
20
90109-06001-00 Bolt 132181770000 |
90109-06001-00 |
from US $2.13 |
||
| replacement | |||||
|
20
|
20
901-09062-39-00 Bolt |
901-09062-39-00 |
from US $1.47 |
||
|
21
|
21
90506-09112-00 Spring, Tension |
90506-09112-00 |
from US $2.55 |
||
