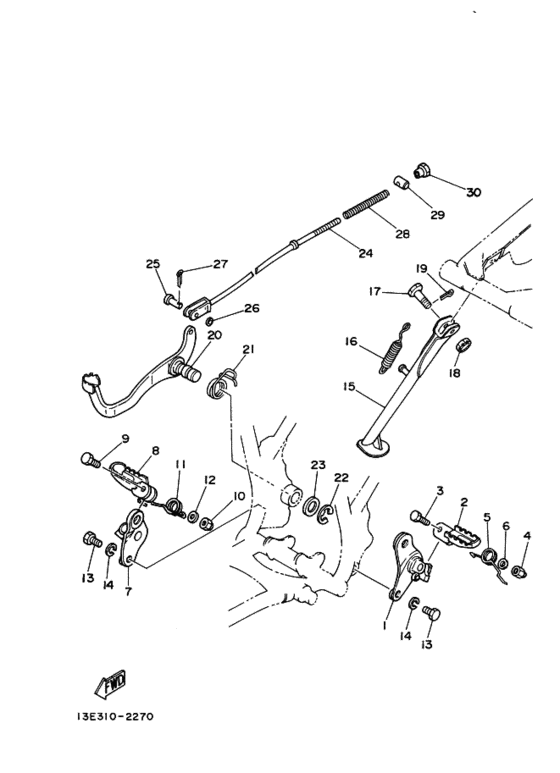

Stand & Footrest Diagram Yamaha TY
- Year
- 1980
- Colour
- White (WW; 0036)
- Model code
- 5250
- Sales region
- Japan (010)
- Engine Capacity
- 175
- Color Variant
- A
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-27412-00-00
Bracket, Footrest 1
ブラケツト，フートレスト １; |
525-27412-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
ブラケツト，フートレスト １; |
999-99999-99-00 |
— | ||
|
2
|
2
434-27411-00-35
Footrest 1
フートレスト １; シルバー |
434-27411-00-35 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
フートレスト １; シルバー |
999-99999-99-00 |
— | ||
|
3
|
3
90101-08250-00
Bolt
|
90101-08250-00 |
— | ||
|
4
|
4
95601-08100-00 Nut, Uナツト，ｕ; |
95601-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
4
|
4
95617-08100-00 Nut, Uナツト，ｕ; |
95617-08100-00 |
from US $3.26 |
||
|
5
|
5
90508-26266-00
Spring, Torsion
スプリング，トーシヨン; |
90508-26266-00 |
— | ||
|
6
|
6
90201-08578-00 Washer, Plateワツシヤ，プレート; |
90201-08578-00 |
from US $1.35 |
||
| replacement | |||||
|
6
|
6
90201-08452-00 Washer (8A7)ワツシヤ，プレート; |
90201-08452-00 |
from US $1.35 |
||
|
7
|
7
525-27422-01-00
Bracket, Footrest 2
ブラケツト，フートレスト ２; |
525-27422-01-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
ブラケツト，フートレスト ２; |
999-99999-99-00 |
— | ||
|
8
|
8
434-27421-00-35
Footrest 2
フートレスト ２; シルバー |
434-27421-00-35 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
フートレスト ２; シルバー |
999-99999-99-00 |
— | ||
|
9
|
9
90101-08250-00
Bolt
|
90101-08250-00 |
— | ||
|
10
|
10
95601-08100-00 Nut, Uナツト，ｕ; |
95601-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
10
|
10
95617-08100-00 Nut, Uナツト，ｕ; |
95617-08100-00 |
from US $3.26 |
||
|
11
|
11
90508-26267-00
Spring, Torsion
スプリング，トーシヨン; |
90508-26267-00 |
— | ||
|
12
|
12
90201-08578-00 Washer, Plateワツシヤ，プレート; |
90201-08578-00 |
from US $1.35 |
||
| replacement | |||||
|
12
|
12
90201-08452-00 Washer (8A7)ワツシヤ，プレート; |
90201-08452-00 |
from US $1.35 |
||
|
13
|
13
97321-08016-00 Bolt |
97321-08016-00 |
from US $1.26 |
||
| replacement | |||||
|
13
|
13
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
14
|
14
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.34 |
||
|
15
|
15
493-27311-00-35
Stand, Side
シルバー |
493-27311-00-35 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
シルバー |
999-99999-99-00 |
— | ||
|
16
|
16
90507-29008-00 Spring, Tension |
90507-29008-00 |
from US $17.28 |
||
|
17
|
17
90102-10006-00 Bolt, With Hole (278-27317-00)ボルト，ウイズホール; |
90102-10006-00 |
from US $8.64 |
||
|
18
|
18
90171-10012-00 Nut, Castle |
90171-10012-00 |
US $3.11 |
||
| replacement | |||||
|
18
|
18
901-71100-49-00 Nut, Castle(54G) |
901-71100-49-00 |
US $3.11 |
||
|
19
|
19
91401-20025-00 Pin, Cotter |
91401-20025-00 |
US $2.27 |
||
| replacement | |||||
|
19
|
19
914-90200-35-00 Pin, Cotter (91401-20030-00) |
914-90200-35-00 |
from US $2.27 |
||
|
20
|
20
525-27211-00-91
Pedal, Brake
ペダル，ブレーキ; ユニクロ （コウタク） |
525-27211-00-91 |
— | ||
|
21
|
21
90508-35264-00
Spring, Torsion
スプリング，トーシヨン; |
90508-35264-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
スプリング，トーシヨン; |
999-99999-99-00 |
— | ||
|
22
|
22
93430-12022-00
Circlip, E-Type
サークリツプ; |
93430-12022-00 |
— | ||
|
23
|
23
90201-17256-00 Washer, Plateワツシヤ，プレート; |
90201-17256-00 |
from US $3.09 |
||
|
24
|
24
276-27231-00-00
Rod, Brake
ロツド，ブレーキ; |
276-27231-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
ロツド，ブレーキ; |
999-99999-99-00 |
— | ||
|
25
|
25
90240-06006-00 Pin, Clevis |
90240-06006-00 |
from US $3.68 |
||
|
26
|
26
92901-06200-00 Washer, Plainワツシヤ，プレーン; |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
26
|
26
92990-06200-00 Washer, Plainワツシヤ，プレーン; |
92990-06200-00 |
from US $1.07 |
||
|
27
|
27
914-01250-15-00
Pin. Cotter
|
914-01250-15-00 |
— | ||
| replacement | |||||
|
27
|
27
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
28
|
28
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.70 |
||
|
29
|
29
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
30
|
30
90179-06176-00 Nut (525) |
90179-06176-00 |
from US $1.42 |
||
| replacement | |||||
|
30
|
30
90179-06411-00 Nut |
90179-06411-00 |
from US $1.34 |
||
