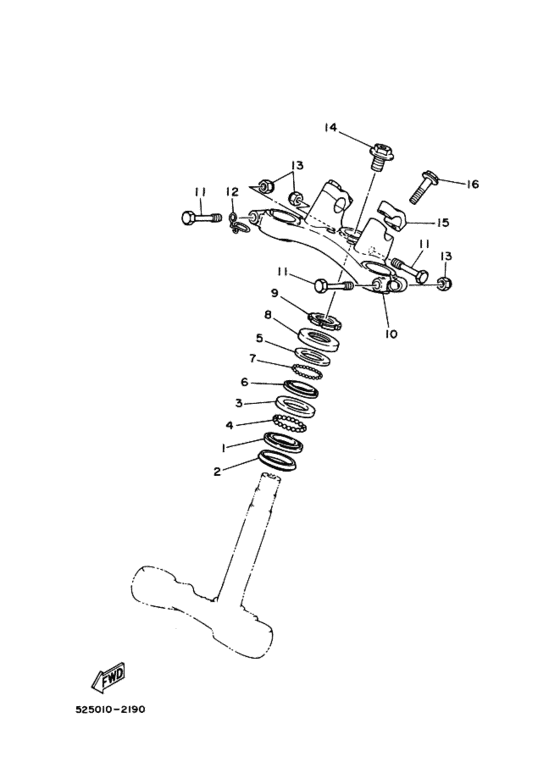

Steering Diagram Yamaha TY
- Year
- 1980
- Colour
- White (WW; 0036)
- Model code
- 5250
- Sales region
- Japan (010)
- Engine Capacity
- 175
- Color Variant
- A
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
156-23411-00-00 Race, Ball 1レース，ボール １; |
156-23411-00-00 |
from US $16.29 |
||
| replacement | |||||
|
1
|
1
B6E-23411-00-00 Race, Ball 1レース，ボール １; |
B6E-23411-00-00 |
from US $9.65 |
||
|
2
|
2
164-23462-00-00 Seal, Dustシール，ステアリング; |
164-23462-00-00 |
from US $4.25 |
||
|
3
|
3
156-23412-00-00 Race, Ball 2レース，ボール ２; |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
3
|
3
B6E-23412-00-00 Race, Ball 2レース，ボール ２; |
B6E-23412-00-00 |
from US $11.83 |
||
|
4
|
4
93501-04011-00 Ballボール; |
93501-04011-00 |
from US $1.34 |
||
| replacement | |||||
|
4
|
4
97D95-06016-00 Bolt, Hexagon Deep Recessボール; |
97D95-06016-00 |
from US $1.28 |
||
|
5
|
5
122-23411-00-00 Race, Ball 1レース，ボール １; |
122-23411-00-00 |
from US $8.78 |
||
| replacements | |||||
|
5
|
5
22F-23411-01-00 Race, Ball 1レース，ボール １; |
22F-23411-01-00 |
US $8.78 |
||
|
5
|
5
BP2-23411-00-00 Race, Ball 1レース，ボール １; |
BP2-23411-00-00 |
from US $6.30 |
||
|
6
|
6
122-23412-00-00 Race, Ball 2レース，ボール ２; |
122-23412-00-00 |
from US $7.93 |
||
| replacements | |||||
|
6
|
6
22F-23412-01-00 Race, Ball 2レース，ボール ２; |
22F-23412-01-00 |
US $7.93 |
||
|
6
|
6
BP2-23412-00-00 Race, Ball 2レース，ボール ２; |
BP2-23412-00-00 |
from US $7.93 |
||
|
7
|
7
93503-16010-00 Ball 3-16ボール; |
93503-16010-00 |
from US $1.35 |
||
| replacement | |||||
|
7
|
7
93503-16003-00 Ballボール; |
93503-16003-00 |
from US $1.34 |
||
|
8
|
8
122-23416-00-00 Cover, Ball Race 2カバー，ボールレース ２; |
122-23416-00-00 |
from US $2.69 |
||
|
9
|
9
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
9
|
9
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.39 |
||
|
9
|
9
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
10
|
10
525-23435-00-00
Crown, Handle
|
525-23435-00-00 |
— | ||
|
11
|
11
97313-08055-00 Bolt (661) |
97313-08055-00 |
from US $4.12 |
||
| replacement | |||||
|
11
|
11
97013-08055-00 Bolt |
97013-08055-00 |
from US $3.55 |
||
|
12
|
12
525-23319-00-00
Holder, Cable 2
ホルダ，ケーブル ２; |
525-23319-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
ホルダ，ケーブル ２; |
999-99999-99-00 |
— | ||
|
13
|
13
95601-08100-00 Nut, Uナツト，ｕ; |
95601-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
13
|
13
95617-08100-00 Nut, Uナツト，ｕ; |
95617-08100-00 |
from US $3.26 |
||
|
14
|
14
90105-14136-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-14136-00 |
from US $2.77 |
||
| replacements | |||||
|
14
|
14
901-05142-20-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
901-05142-20-00 |
from US $3.68 |
||
|
14
|
14
90105-14102-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-14102-00 |
from US $7.97 |
||
|
15
|
15
1E6-23441-10-38
Holder, Handle Upr
クリヤ （バフアリ） |
1E6-23441-10-38 |
— | ||
|
16
|
16
95821-08035-00 Bolt, Flange |
95821-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
16
|
16
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.07 |
||
