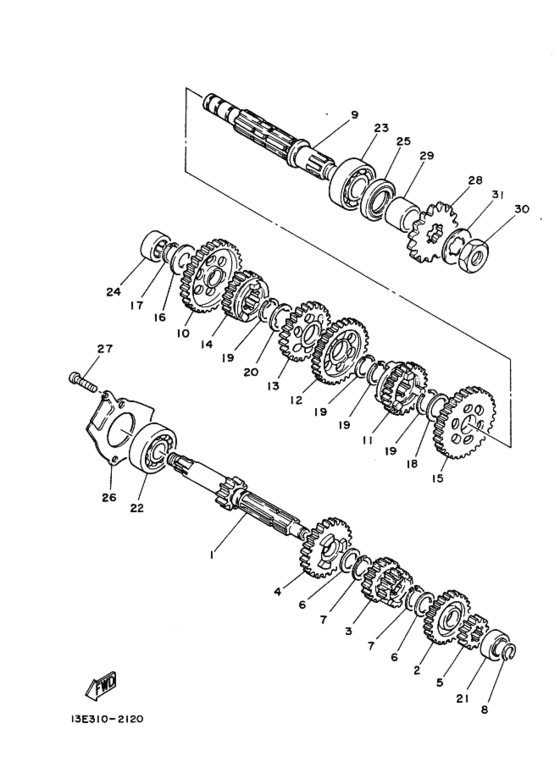

Transmission Diagram Yamaha TY
- Year
- 1980
- Colour
- White (WW; 0036)
- Model code
- 5250
- Sales region
- Japan (010)
- Engine Capacity
- 175
- Color Variant
- A
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-17411-00-00
Axle, Main
アクスル，メイン ; １１Ｔ |
525-17411-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
アクスル，メイン ; １１Ｔ |
999-99999-99-00 |
— | ||
|
2
|
2
525-17151-00-00
Gear, 5Th Pinion
ギア，フイフスピニオン ; ２３Ｔ |
525-17151-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
ギア，フイフスピニオン ; ２３Ｔ |
999-99999-99-00 |
— | ||
|
3
|
3
525-17131-00-00
Gear, 3Rd Pinion
ギア，サードピニオン ; １６Ｔ／１９Ｔ |
525-17131-00-00 |
— | ||
|
4
|
4
525-17161-00-00
Gear, 6Th Pinion
ギア，シツクスピニオン ; ２６Ｔ |
525-17161-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
ギア，シツクスピニオン ; ２６Ｔ |
999-99999-99-00 |
— | ||
|
5
|
5
525-17121-00-00
Gear, 2Nd Pinion
ギア，セカンドピニオン ; １３Ｔ |
525-17121-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
ギア，セカンドピニオン ; １３Ｔ |
999-99999-99-00 |
— | ||
|
6
|
6
90201-17545-00 Washer, Plateワツシヤ，プレート; |
90201-17545-00 |
from US $3.26 |
||
|
7
|
7
93410-17037-00 Circlipサークリツプ; |
93410-17037-00 |
from US $1.70 |
||
|
8
|
8
93440-13042-00
Circlip, Outer
サークリツプ; |
93440-13042-00 |
— | ||
|
9
|
9
525-17421-00-00
Axle, Drive
|
525-17421-00-00 |
— | ||
|
10
|
10
525-17211-00-00
Gear, 1St Wheel
ギア，フアーストホイール ; ３４Ｔ |
525-17211-00-00 |
— | ||
|
11
|
11
525-17251-00-00
Gear, 5Th Wheel
ギア，フイフスホイール ; ２３Ｔ |
525-17251-00-00 |
— | ||
|
12
|
12
525-17231-01-00
Gear, 3Rd Wheel
ギア，サードホイール ; ３０Ｔ |
525-17231-01-00 |
— | ||
|
13
|
13
525-17241-01-00
Gear, 4Th Wheel
ギア，フオースホイール ; ２７Ｔ |
525-17241-01-00 |
— | ||
|
14
|
14
525-17261-00-00
Gear, 6Th Wheel
ギア，シツクスホイール ; ２０Ｔ |
525-17261-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
ギア，シツクスホイール ; ２０Ｔ |
999-99999-99-00 |
— | ||
|
15
|
15
525-17221-00-00
Gear, 2Nd Wheel
ギア，セカンドホイール ; ３２Ｔ |
525-17221-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
ギア，セカンドホイール ; ３２Ｔ |
999-99999-99-00 |
— | ||
|
16
|
16
164-17427-00-06 Shim 1．シム １ ; ０６Ｔ |
164-17427-00-06 |
from US $3.12 |
||
|
17
|
17
934-40150-12-00
Circlip
サークリツプ; |
934-40150-12-00 |
— | ||
| replacement | |||||
|
17
|
17
99009-15400-00 Circlip(1Ar)サークリツプ; |
99009-15400-00 |
from US $1.07 |
||
|
18
|
18
90201-20266-00 Washer, Plateワツシヤ，プレート; |
90201-20266-00 |
from US $1.56 |
||
|
19
|
19
93410-20038-00 Circlipサークリツプ; |
93410-20038-00 |
from US $1.34 |
||
|
20
|
20
90209-16133-00 Washer |
90209-16133-00 |
US $4.97 |
||
|
21
|
21
93318-21305-00
Bearing, Cylinder.#18
|
93318-21305-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
93306-30303-00 Bearingベアリング ; Ｂ６３０３Ｚ |
93306-30303-00 |
from US $28.19 |
||
| replacement | |||||
|
22
|
22
93306-30317-00 Bearingベアリング ; Ｂ６３０３Ｚ |
93306-30317-00 |
from US $28.19 |
||
|
23
|
23
93306-20418-00 Bearingベアリング ; Ｂ６２０４ＣＳ |
93306-20418-00 |
from US $21.96 |
||
| replacements | |||||
|
23
|
23
933-06204-68-00 Bearing(4Ed)ベアリング ; Ｂ６２０４ＣＳ |
933-06204-68-00 |
from US $28.19 |
||
|
23
|
23
93306-20458-00 Bearingベアリング ; Ｂ６２０４ＣＳ |
93306-20458-00 |
from US $21.96 |
||
|
24
|
24
93311-31515-00 Bearing, Cylindrical |
93311-31515-00 |
from US $42.28 |
||
| replacement | |||||
|
24
|
24
93311-31567-00 Bearing |
93311-31567-00 |
from US $22.82 |
||
|
25
|
25
931-02260-42-00 Oil Sealオイルシール; |
931-02260-42-00 |
from US $6.09 |
||
|
26
|
26
1G8-17471-00-00 Plate, Coverプレート，カバー; |
1G8-17471-00-00 |
US $14.96 |
||
|
27
|
27
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
27
|
27
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
28
|
28
174-17461-20-00 Sprocket, Drive (12T)スプロケツト，ドライブ ; １２Ｔ; ＵＲ |
174-17461-20-00 |
from US $20.50 |
||
| replacements | |||||
|
28
|
28
3TU-17460-00-00 Drive Sprocket Assy (12T)スプロケツト，ドライブ ; １２Ｔ; ＵＲ |
3TU-17460-00-00 |
from US $26.39 |
||
|
28
|
28
93822-12011-00 Sprocket,drive 12T(1An1746120)スプロケツト，ドライブ ; １２Ｔ; ＵＲ |
93822-12011-00 |
from US $12.29 |
||
|
28
|
28
174-17461-30-00 Sprocket, Drive (13T)スプロケツト，ドライブ ; １３Ｔ; ＵＲ ＳＴＤ |
174-17461-30-00 |
from US $18.84 |
||
| replacement | |||||
|
28
|
28
93822-13213-00 Sprocket, Drive (13T)スプロケツト，ドライブ ; １３Ｔ; ＵＲ ＳＴＤ |
93822-13213-00 |
from US $18.84 |
||
|
28
|
28
174-17461-40-00 Sprocket, Drive (14T)スプロケツト，ドライブ ; １４Ｔ; ＵＲ |
174-17461-40-00 |
from US $17.71 |
||
| replacement | |||||
|
28
|
28
938-22140-43-00 Sprocket, Drive (5N0-17461-40-0スプロケツト，ドライブ ; １４Ｔ; ＵＲ |
938-22140-43-00 |
from US $24.68 |
||
|
29
|
29
90387-202A0-00 Collarカラー; |
90387-202A0-00 |
from US $9.49 |
||
|
30
|
30
90179-16018-00 Nut |
90179-16018-00 |
from US $3.26 |
||
| replacement | |||||
|
30
|
30
90179-16226-00 Nut (1L8) |
90179-16226-00 |
from US $2.66 |
||
|
31
|
31
90215-16020-00 Washer, Lock |
90215-16020-00 |
from US $3.68 |
||
| replacement | |||||
|
31
|
31
90215-16127-00 Washer, Lock (1L8) |
90215-16127-00 |
from US $3.68 |
||
