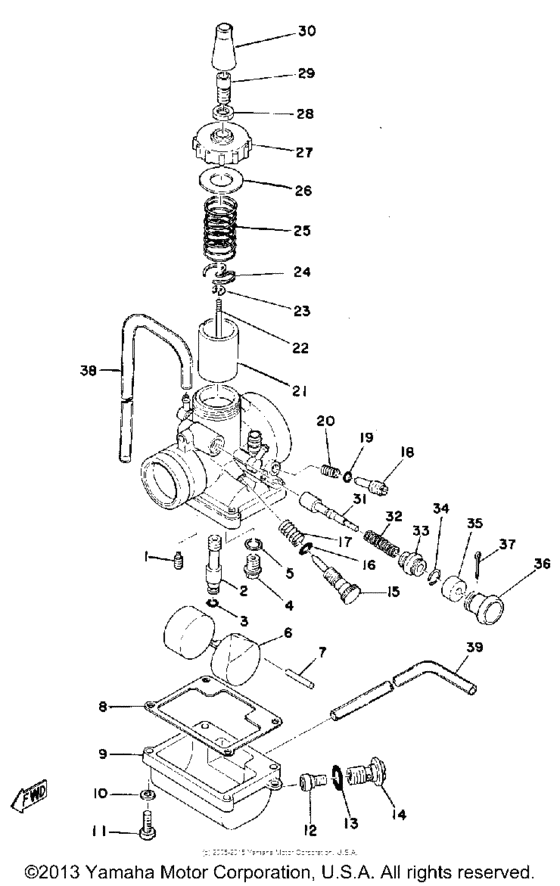

Carburetor Diagram Yamaha TY
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 175
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
260-14142-25-00 Jet, Pilot# 25 |
260-14142-25-00 |
from US $10.46 |
||
|
1
|
1
525-14101-60-00
Carburetor Assembly 1
|
525-14101-60-00 |
— | ||
|
2
|
2
493-14141-30-00
Nozzle, Main
|
493-14141-30-00 |
— | ||
|
3
|
3
214-14147-00-00 O-Ring |
214-14147-00-00 |
from US $3.04 |
||
|
4
|
4
353-14190-18-00 Needle Valve Assembly (#1.8) |
353-14190-18-00 |
from US $43.69 |
||
|
5
|
5
127-14195-00-00 Washer, Needle Valve |
127-14195-00-00 |
from US $2.98 |
||
|
6
|
6
525-14185-00-00
Float
|
525-14185-00-00 |
— | ||
|
7
|
7
127-14186-00-00 Pin, Float |
127-14186-00-00 |
from US $2.98 |
||
|
8
|
8
304-14184-00-00 Gasket, Float Chamber |
304-14184-00-00 |
from US $4.04 |
||
|
9
|
9
493-14181-00-33
Body, Float Chmbr 1
M5-040 |
493-14181-00-33 |
— | ||
|
10
|
10
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
11
|
11
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
11
|
11
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
12
|
12
137-14143-38-A0 Jet, Main (#190) |
137-14143-38-A0 |
from US $10.13 |
||
|
12
|
12
137-14143-34-00 Jet, Main #170Jet, main (170) #170 U.R. |
137-14143-34-00 |
from US $10.73 |
||
|
12
|
12
137-14143-36-A1 Jet, Main (#180) |
137-14143-36-A1 |
from US $11.66 |
||
|
13
|
13
93220-09001-00 O-Ring |
93220-09001-00 |
from US $6.28 |
||
|
14
|
14
493-14166-00-00
Bolt, Banjo
|
493-14166-00-00 |
— | ||
|
15
|
15
493-14122-00-00
Screw, Throttle
|
493-14122-00-00 |
— | ||
|
16
|
16
361-14147-00-00
O-Ring
|
361-14147-00-00 |
— | ||
|
17
|
17
493-14133-00-00 Spring, Throttle Stop |
493-14133-00-00 |
US $10.43 |
||
|
18
|
18
493-14123-00-00
Screw, Air Adjusting
|
493-14123-00-00 |
— | ||
|
19
|
19
354-14147-00-00 O-Ring |
354-14147-00-00 |
from US $8.78 |
||
|
20
|
20
174-14134-00-00 Spring, Air Adjusting |
174-14134-00-00 |
from US $7.79 |
||
|
21
|
21
304-14112-30-00
Valve, Throttle 1
|
304-14112-30-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
493-14116-01-00
Needle
|
493-14116-01-00 |
— | ||
|
23
|
23
164-14137-00-00
Clip
|
164-14137-00-00 |
— | ||
| replacement | |||||
|
23
|
23
3FA-14137-00-00 Clip |
3FA-14137-00-00 |
from US $2.69 |
||
|
24
|
24
137-14136-00-00 Seat, Spring |
137-14136-00-00 |
US $16.20 |
||
|
25
|
25
3X3-14131-00-00 Spring, Thrtl Valve |
3X3-14131-00-00 |
from US $14.45 |
||
|
26
|
26
193-14126-00-00 Gasket |
193-14126-00-00 |
from US $3.26 |
||
|
27
|
27
525-14158-00-33
Top, Mixing Chamber
M5-040 |
525-14158-00-33 |
— | ||
|
28
|
28
802-14161-00-00 Nut, Cable Adjusting |
802-14161-00-00 |
from US $3.47 |
||
|
29
|
29
12G-14106-00-00 Cble Adjust Screw Set |
12G-14106-00-00 |
from US $11.79 |
||
|
30
|
30
802-14169-00-00 Cap |
802-14169-00-00 |
from US $5.81 |
||
| replacement | |||||
|
30
|
30
8A7-14169-00-00 Cap |
8A7-14169-00-00 |
from US $5.68 |
||
|
31
|
31
304-14171-00-00
Plunger, Starter
|
304-14171-00-00 |
— | ||
|
32
|
32
156-14135-00-00 Coil, Spring |
156-14135-00-00 |
from US $7.79 |
||
|
33
|
33
152-14174-00-00 Cap, Plunger |
152-14174-00-00 |
from US $27.49 |
||
|
34
|
34
152-14138-00-00
Clip, Plunger
|
152-14138-00-00 |
— | ||
|
35
|
35
132-14173-00-00 Cover, Plunger Cap |
132-14173-00-00 |
from US $8.08 |
||
|
36
|
36
304-14261-00-00 Holder |
304-14261-00-00 |
from US $31.17 |
||
|
37
|
37
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.77 |
||
|
38
|
38
2J2-14196-00-00 Pipe |
2J2-14196-00-00 |
from US $25.08 |
||
|
39
|
39
23F-14197-00-00 Pipe, Airvent |
23F-14197-00-00 |
from US $15.58 |
||
