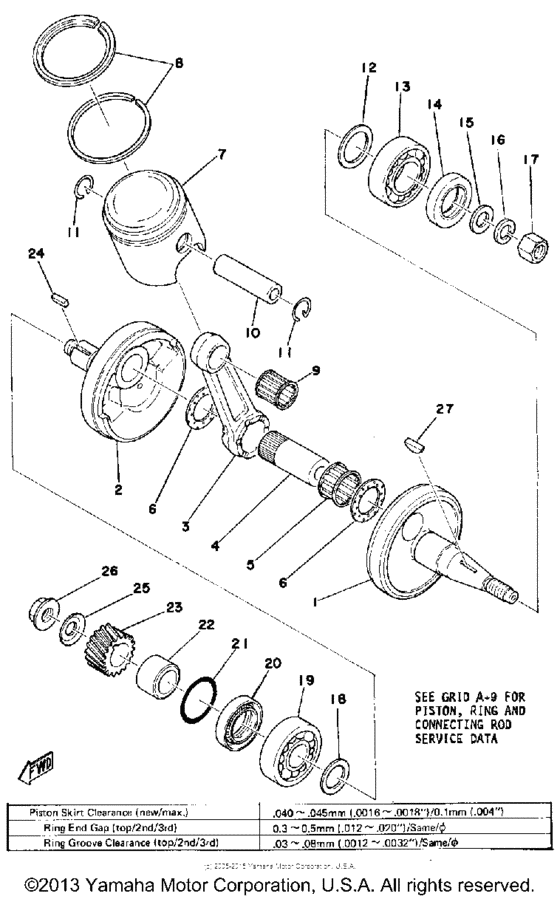

Crank-piston Diagram Yamaha TY
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 175
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-11400-00-00
Crankshaft Assembly
|
525-11400-00-00 |
— | ||
|
1
|
1
525-11412-00-00
Crank 1
|
525-11412-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
525-11422-00-00
Crank 2
|
525-11422-00-00 |
— | ||
|
3
|
3
3R2-11651-01-00
Rod, Connecting
|
3R2-11651-01-00 |
— | ||
|
4
|
4
525-11681-00-00 Pin, Crank 1 |
525-11681-00-00 |
US $38.13 |
||
| replacement | |||||
|
4
|
4
3M5-11681-00-00 Pin, Crank 1 |
3M5-11681-00-00 |
from US $9.78 |
||
|
5
|
5
933-10422-77-00
Bearing, Cylinder
|
933-10422-77-00 |
— | ||
| replacement | |||||
|
5
|
5
933-10422-C8-00 Bearing, Cylinder |
933-10422-C8-00 |
from US $25.92 |
||
|
6
|
6
90209-22248-00 Washer, Special Shape |
90209-22248-00 |
from US $4.38 |
||
|
7
|
7
443-11631-03-96
Piston Std
M5-040 |
443-11631-03-96 |
— | ||
|
7
|
7
443-11636-03-00
Piston 2 O/s 0.50 (66.50Mm 2Nd
O/S 0.50 66.50MM 2ND ALTERNATE PART M5-040 |
443-11636-03-00 |
— | ||
|
7
|
7
443-11638-03-00
Piston 4 O/s 1.00
O/S 1.00 ALTERNATE PART M5-040 |
443-11638-03-00 |
— | ||
|
7
|
7
443-11637-03-00
Piston 3 O/s 0.75
O/S 0.75 ALTERNATE PART M5-040 |
443-11637-03-00 |
— | ||
|
7
|
7
443-11635-03-00
Piston 1 O/s 0.25 (66.25Mm 1St
O/S 0.25 66.25MM 1ST ALTERNATE PART M5-040 |
443-11635-03-00 |
— | ||
|
8
|
8
443-11637-03-00
Piston 3 O/s 0.75
O/S 0.75 |
443-11637-03-00 |
— | ||
|
8
|
8
443-11638-03-00
Piston 4 O/s 1.00
O/S 1.00 |
443-11638-03-00 |
— | ||
|
8
|
8
443-11630-00-00
Piston Kit Std
M5-040 |
443-11630-00-00 |
— | ||
|
8
|
8
443-11630-10-00
Piston Kit 1St
1ST |
443-11630-10-00 |
— | ||
|
8
|
8
443-11610-00-00
Piston Ringset Std
M5-040 |
443-11610-00-00 |
— | ||
|
8
|
8
443-11610-40-00
Piston Ringset 4Th (4Th O.s0)
4TH 4TH O.S0 ALTERNATE PART M5-040 |
443-11610-40-00 |
— | ||
|
8
|
8
443-11610-30-00
Piston Ringset 3Rd (3Rd O.s)
3RD 3RD O.S ALTERNATE PART M5-040 |
443-11610-30-00 |
— | ||
|
8
|
8
443-11610-20-00
Piston Ringset 2Nd (2Nd O.s)
2ND 2ND O.S ALTERNATE PART M5-040 |
443-11610-20-00 |
— | ||
|
8
|
8
443-11610-10-00
Piston Ringset 1St (1St O.s)
1ST 1ST O.S ALTERNATE PART M5-040 |
443-11610-10-00 |
— | ||
|
8
|
8
443-11630-20-00
Piston Kit 2Nd
2ND 11 |
443-11630-20-00 |
— | ||
|
9
|
9
93310-216E1-00 Bearing |
93310-216E1-00 |
from US $11.62 |
||
|
10
|
10
251-11633-00-00 Pin, Piston |
251-11633-00-00 |
from US $10.10 |
||
|
11
|
11
93450-17025-00 Circlip |
93450-17025-00 |
from US $1.70 |
||
|
12
|
12
132-11561-00-03
Shim, Crank 1
U.R. |
132-11561-00-03 |
— | ||
|
12
|
12
132-11561-00-05
Shim, Crank 1
U.R. |
132-11561-00-05 |
— | ||
|
13
|
13
933-06205-29-00 Bearing |
933-06205-29-00 |
from US $17.18 |
||
|
14
|
14
93102-25061-00 Oil Seal, Sd-Type |
93102-25061-00 |
from US $6.66 |
||
|
15
|
15
90201-12535-00 Washer, Plate |
90201-12535-00 |
from US $2.27 |
||
|
16
|
16
929-01121-00-00
Washer, Spring
|
929-01121-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
17
|
17
90170-12181-00 Nut, Hexagon (525) |
90170-12181-00 |
from US $2.13 |
||
|
18
|
18
136-11561-00-04
Shim, Crank 1
U.R. |
136-11561-00-04 |
— | ||
|
18
|
18
136-11561-00-03
Shim, Crank 1
U.R. |
136-11561-00-03 |
— | ||
|
18
|
18
136-11561-00-05
Shim, Crank 1
U.R. |
136-11561-00-05 |
— | ||
|
18
|
18
136-11561-00-06
Shim, Crank 1
U.R. |
136-11561-00-06 |
— | ||
|
18
|
18
136-11561-00-07
Shim, Crank 1
U.R. |
136-11561-00-07 |
— | ||
|
19
|
19
93306-30421-00 Bearing |
93306-30421-00 |
from US $31.91 |
||
| replacement | |||||
|
19
|
19
933-06304-42-00 Bearing |
933-06304-42-00 |
from US $25.80 |
||
|
20
|
20
93103-28011-00 Oil Seal, Sw-Type (93103-28100)93103-28100 |
93103-28011-00 |
from US $6.40 |
||
|
21
|
21
93210-180A6-00 O-Ring |
93210-180A6-00 |
from US $2.02 |
||
|
22
|
22
90387-20488-00 Collar |
90387-20488-00 |
from US $13.46 |
||
|
23
|
23
525-16111-00-00
Gear, Pri Drive
|
525-16111-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
90282-05005-00 Key, Straight |
90282-05005-00 |
from US $1.70 |
||
|
25
|
25
90208-12015-00 Washer, Conical Spring |
90208-12015-00 |
US $1.70 |
||
| replacement | |||||
|
25
|
25
902-08128-00-00 Washer, Conical Spring |
902-08128-00-00 |
US $1.04 |
||
|
26
|
26
901-79122-44-00
Nut
|
901-79122-44-00 |
— | ||
| replacement | |||||
|
26
|
26
90179-12659-00 Nut |
90179-12659-00 |
from US $1.81 |
||
|
27
|
27
902-80160-53-00
Key, Woodruff(3Tb)
|
902-80160-53-00 |
— | ||
| replacement | |||||
|
27
|
27
90280-05001-00 Key, Woodruff |
90280-05001-00 |
from US $9.15 |
||
