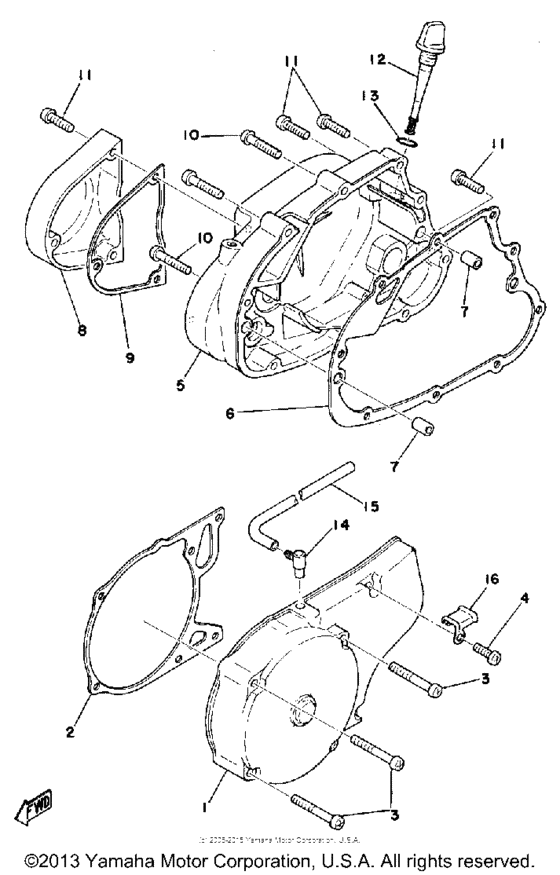

Crankcase cover Diagram Yamaha TY
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 175
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-15411-00-00
Cover, Crankcase L
|
525-15411-00-00 |
— | ||
|
2
|
2
525-15455-00-00 Gasket 1 |
525-15455-00-00 |
from US $19.69 |
||
| replacement | |||||
|
2
|
2
525-15455-10-00 Gasket, Crankcase Cover L |
525-15455-10-00 |
from US $14.25 |
||
|
3
|
3
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
4
|
4
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
5
|
5
525-15431-00-00
Cover, Crankcase 3
|
525-15431-00-00 |
— | ||
|
6
|
6
401-15451-00-00 Gasket, Crankcase Cover 1 |
401-15451-00-00 |
from US $13.45 |
||
| replacement | |||||
|
6
|
6
3UL-15451-00-00 Gasket, Crankcase Cover 1 |
3UL-15451-00-00 |
from US $17.57 |
||
|
7
|
7
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
7
|
7
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
7
|
7
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
8
|
8
525-15416-00-00
Cover, Oil Pump
|
525-15416-00-00 |
— | ||
|
9
|
9
3UL-15456-00-00 Gasket, Oil Pump Cover 1 |
3UL-15456-00-00 |
from US $5.62 |
||
| replacement | |||||
|
9
|
9
3UL-15456-01-00 Gasket, Oil Pump Cover 1 |
3UL-15456-01-00 |
from US $10.06 |
||
|
10
|
10
98580-06035-00 Screw Pan Head |
98580-06035-00 |
US $2.13 |
||
| replacement | |||||
|
10
|
10
97885-06035-00 Screw, Pan Head |
97885-06035-00 |
from US $2.13 |
||
|
11
|
11
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
11
|
11
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
12
|
12
525-15362-01-00
Plug, Oil Level
|
525-15362-01-00 |
— | ||
|
13
|
13
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
13
|
13
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.52 |
||
|
14
|
14
583-15371-00-00 Breather |
583-15371-00-00 |
from US $1.70 |
||
|
15
|
15
90445-07177-00 Hose |
90445-07177-00 |
US $4.39 |
||
| replacement | |||||
|
15
|
15
90445-07MF1-00 Hose (L570) |
90445-07MF1-00 |
from US $4.39 |
||
|
16
|
16
90461-10016-00 Clamp |
90461-10016-00 |
US $9.05 |
||
