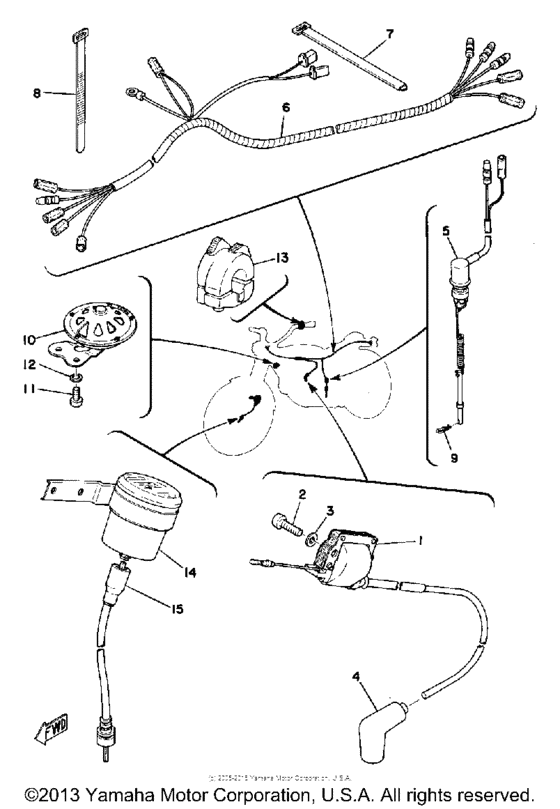

Electrical Diagram Yamaha TY
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 175
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1Y8-82310-40-00 Ignition Coil Assembly |
1Y8-82310-40-00 |
from US $151.70 |
||
|
2
|
2
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
2
|
2
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
3
|
3
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
4
|
4
294-82370-00-00
Plug Cap Assembly
|
294-82370-00-00 |
— | ||
|
5
|
5
525-82530-00-00
Stop Switch Assembly
|
525-82530-00-00 |
— | ||
|
6
|
6
525-82590-50-00
Wire Harness Assembly
|
525-82590-50-00 |
— | ||
|
7
|
7
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
8
|
8
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
8
|
8
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
8
|
8
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
9
|
9
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
9
|
9
434-83380-10-00
Horn
|
434-83380-10-00 |
— | ||
|
11
|
11
985-80060-12-00
Screw, Pan Head
92501-06012-00 ALTERNATE PARTS |
985-80060-12-00 |
— | ||
| replacement | |||||
|
11
|
11
97885-06012-00 Screw, Pan Head92501-06012-00 ALTERNATE PARTS |
97885-06012-00 |
from US $1.56 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
434-83973-00-00
Switch, Handle 3
ALTERNATE PARTS |
434-83973-00-00 |
— | ||
|
14
|
14
434-83510-30-00
Speedometer Assembly
|
434-83510-30-00 |
— | ||
|
15
|
15
434-83550-02-00 Speedometer Cable |
434-83550-02-00 |
from US $28.62 |
||
