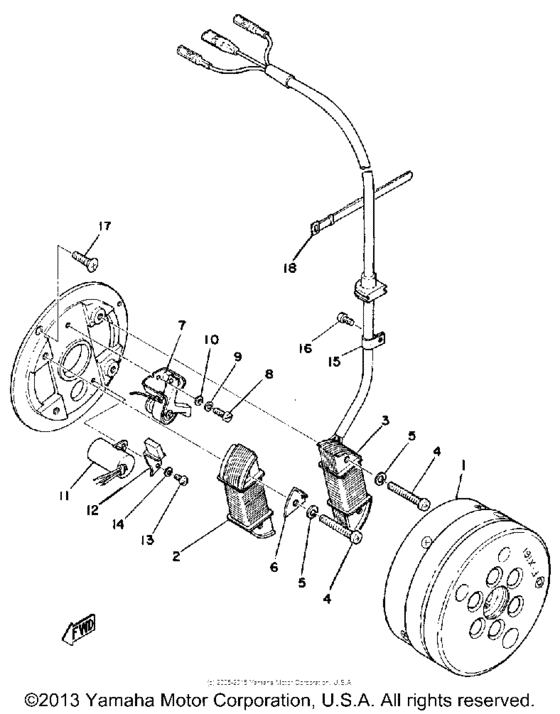

Flywheel & magneto Diagram Yamaha TY
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 175
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-81300-11-00
Flywhl Magneto Assembly
|
525-81300-11-00 |
— | ||
|
1
|
1
525-81350-10-00
Rotor Assembly
|
525-81350-10-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
461-81312-10-00
Coil, Source
|
461-81312-10-00 |
— | ||
|
3
|
3
525-81313-10-00
Coil, Lighting 1
|
525-81313-10-00 |
— | ||
|
4
|
4
985-01050-35-00
Screw, Pan Head
|
985-01050-35-00 |
— | ||
| replacements | |||||
|
4
|
4
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
4
|
4
98580-05035-00 Screw, Pan Head |
98580-05035-00 |
from US $3.40 |
||
|
5
|
5
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
6
|
6
434-81332-10-00
Plate, Timing
|
434-81332-10-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
434-81321-10-00 Contact Brkr Assembly |
434-81321-10-00 |
from US $66.98 |
||
|
8
|
8
110-81346-21-00 Screw, Pan Head |
110-81346-21-00 |
from US $4.39 |
||
|
9
|
9
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
10
|
10
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
11
|
11
207-81326-90-00 Condenser 2 |
207-81326-90-00 |
US $29.83 |
||
|
12
|
12
207-81331-10-00 Lubricator |
207-81331-10-00 |
US $6.52 |
||
|
13
|
13
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
14
|
14
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
15
|
15
109-81328-11-00
Clamp
|
109-81328-11-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
17
|
17
986-03060-12-00
Screw, Oval Head (92701-06012)
92701-06012 |
986-03060-12-00 |
— | ||
|
18
|
18
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
