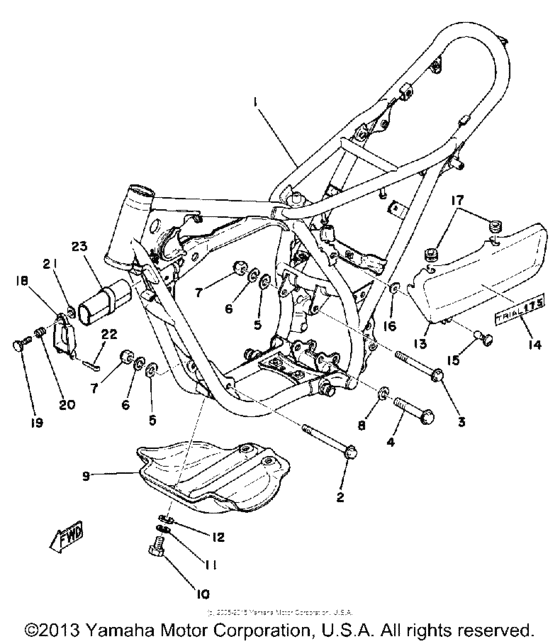

Frame - side cover Diagram Yamaha TY
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 175
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-21110-00-35
Frame
|
525-21110-00-35 |
— | ||
|
2
|
2
90105-08024-00 Bolt, Flange |
90105-08024-00 |
from US $5.10 |
||
|
3
|
3
90105-08120-00 Bolt, Flange |
90105-08120-00 |
from US $7.51 |
||
| replacement | |||||
|
3
|
3
95817-08105-00 Bolt, Flange |
95817-08105-00 |
from US $7.79 |
||
|
4
|
4
90105-10037-00 Bolt, Flange |
90105-10037-00 |
from US $6.52 |
||
|
5
|
5
90209-08050-00 Washer, Spec''l Shap |
90209-08050-00 |
from US $4.11 |
||
|
6
|
6
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
7
|
7
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
7
|
7
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
8
|
8
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
9
|
9
525-21471-00-39
Protector, Engine
|
525-21471-00-39 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
10
|
10
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
11
|
11
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
12
|
12
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
13
|
13
525-12711-00-00
New Genuine Part
IN PRICE BOOK COMP. YELLOW |
525-12711-00-00 |
— | ||
|
14
|
14
525-21787-00-00
Emblem 7
|
525-21787-00-00 |
— | ||
|
15
|
15
371-21714-00-00
Knob, Side Cover 1
|
371-21714-00-00 |
— | ||
|
16
|
16
90480-01401-00 Grommet (41Y) |
90480-01401-00 |
from US $3.05 |
||
|
17
|
17
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.94 |
||
|
18
|
18
461-28171-00-00
Cover, Tool Box
|
461-28171-00-00 |
— | ||
|
19
|
19
434-28172-00-00
Knob, Tool Box
|
434-28172-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
90501-10187-00
Spring, Compression
|
90501-10187-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
901-79064-99-00
Nut
|
901-79064-99-00 |
— | ||
| replacement | |||||
|
21
|
21
90179-06500-00 Nut |
90179-06500-00 |
from US $2.22 |
||
|
22
|
22
91401-30040-00 Pin,cotter |
91401-30040-00 |
from US $4.45 |
||
| replacement | |||||
|
22
|
22
914-90300-45-00 Pin, Cotter |
914-90300-45-00 |
from US $4.53 |
||
|
23
|
23
525-82100-10-00
New Genuine Part
IN PRICE BOOK |
525-82100-10-00 |
— | ||
