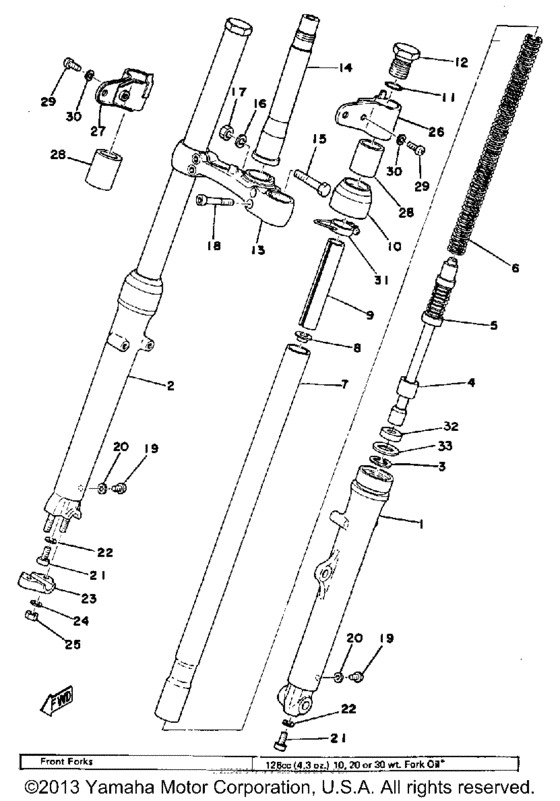

Front fork Diagram Yamaha TY
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 175
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-23101-01-00
Front Fork Assembly
M5-040 |
525-23101-01-00 |
— | ||
|
1
|
1
525-23126-00-00
Tube, Outer 1
|
525-23126-00-00 |
— | ||
|
2
|
2
525-23136-00-00
Tube, Outer 2
|
525-23136-00-00 |
— | ||
|
3
|
3
535-23183-00-00
Circlip
|
535-23183-00-00 |
— | ||
|
4
|
4
535-23171-00-00
Piston, Front Fork
|
535-23171-00-00 |
— | ||
|
5
|
5
525-23170-00-00
Cylinder, Frtfrk
|
525-23170-00-00 |
— | ||
|
6
|
6
525-23141-01-00
Spring, Front Fork
|
525-23141-01-00 |
— | ||
|
7
|
7
525-23124-00-00
Tube, Inner 1
|
525-23124-00-00 |
— | ||
|
8
|
8
304-23142-50-00
Seat, Spring Upper
|
304-23142-50-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
315-23118-50-00
Spacer
|
315-23118-50-00 |
— | ||
|
10
|
10
535-23144-00-00 Seal, Dust |
535-23144-00-00 |
from US $16.16 |
||
| replacement | |||||
|
10
|
10
535-F3144-00-00
Seal Dust (535-23144-00) Dt100
|
535-F3144-00-00 |
— | ||
|
11
|
11
146-23114-00-00 Packing |
146-23114-00-00 |
from US $13.74 |
||
|
12
|
12
2K5-23111-00-00
Bolt, Cap
|
2K5-23111-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
525-23345-00-00
Bracket, Lower
|
525-23345-00-00 |
— | ||
|
14
|
14
516-23341-31-00
Shaft, Steering
|
516-23341-31-00 |
— | ||
|
15
|
15
322-23356-00-00
Bolt 2
|
322-23356-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
17
|
17
322-23357-00-00
Nut
|
322-23357-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
322-23346-00-00
Bolt 1
|
322-23346-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
20
|
20
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
21
|
21
913-11080-20-00
Bolt, Hexagon Socket Head
|
913-11080-20-00 |
— | ||
| replacement | |||||
|
21
|
21
91314-08020-00 Bolt, Hexagon Socket Head |
91314-08020-00 |
from US $1.52 |
||
|
22
|
22
214-23158-00-00
Gasket
|
214-23158-00-00 |
— | ||
|
23
|
23
315-23167-51-00
Holder, Axle
|
315-23167-51-00 |
— | ||
|
24
|
24
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
25
|
25
90170-08176-00 Nut, Hexagon |
90170-08176-00 |
US $3.40 |
||
| replacement | |||||
|
25
|
25
90170-08158-00 Nut, Hexagon (509) |
90170-08158-00 |
from US $2.08 |
||
|
26
|
26
525-23121-00-93
Cover, Upper 1
|
525-23121-00-93 |
— | ||
|
27
|
27
525-23131-00-93
Cover, Upper 2
|
525-23131-00-93 |
— | ||
|
28
|
28
525-23163-00-00
Gasket
|
525-23163-00-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
98580-06018-00 Screw, Pan Head (N151) |
98580-06018-00 |
US $3.26 |
||
| replacement | |||||
|
29
|
29
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
30
|
30
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
31
|
31
525-23318-01-00
Holder, Cable 1
|
525-23318-01-00 |
— | ||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
137-23145-01-00 Oil Seal |
137-23145-01-00 |
from US $47.66 |
||
|
33
|
33
315-23146-50-00
Washer, Oil Seal
|
315-23146-50-00 |
— | ||
