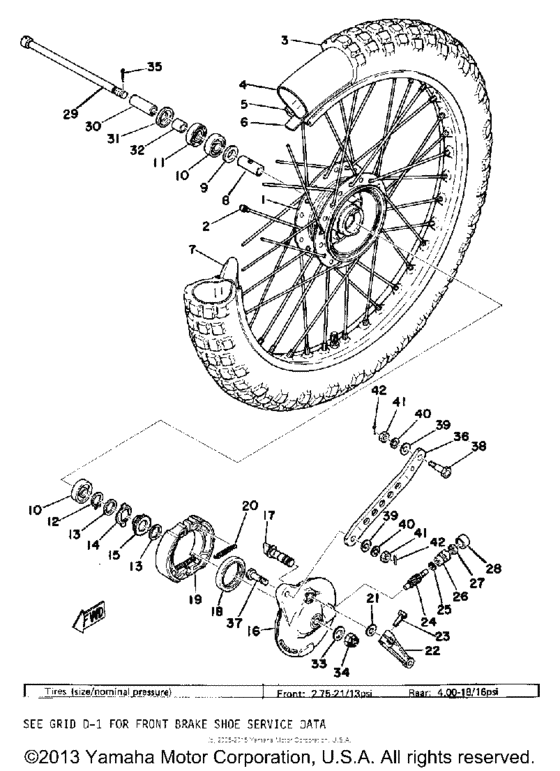

Front wheel Diagram Yamaha TY
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 175
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
248-25111-00-38 Hub, Front |
248-25111-00-38 |
US $196.19 |
||
| replacement | |||||
|
1
|
1
248-25111-10-00 Hub, Front |
248-25111-10-00 |
from US $98.98 |
||
|
2
|
2
345-25104-01-00 Spoke Set, Front |
345-25104-01-00 |
from US $126.11 |
||
|
2
|
2
345-25197-90-00
Spoke Set, Outer 1
|
345-25197-90-00 |
— | ||
|
2
|
2
345-25196-90-00
Spoke Set, Inner 1
|
345-25196-90-00 |
— | ||
|
3
|
3
94127-21151-00
275X21 Dun Tu Et
TU ET |
94127-21151-00 |
— | ||
| replacement | |||||
|
3
|
3
941-27213-25-00
Front Tire
TU ET |
941-27213-25-00 |
— | ||
|
4
|
4
94225-21186-00 Tube 2.75/3.00-212.75/3.00-21 |
94225-21186-00 |
US $27.41 |
||
| replacement | |||||
|
4
|
4
942-27212-93-00
Tube (2.75-21)(2Yy)
2.75/3.00-21 |
942-27212-93-00 |
— | ||
|
5
|
5
94414-21155-00
Rim 1.40X21
1.40X21 |
94414-21155-00 |
— | ||
|
6
|
6
943-27210-24-00 Band, Rim |
943-27210-24-00 |
US $4.39 |
||
|
7
|
7
1T1-25194-00-00 Spacer, Bead |
1T1-25194-00-00 |
from US $56.65 |
||
|
8
|
8
90560-12261-00 Spacer |
90560-12261-00 |
from US $4.96 |
||
| replacement | |||||
|
8
|
8
90560-12138-00 Spacer |
90560-12138-00 |
from US $4.96 |
||
|
9
|
9
109-25315-00-00 Flange, Spacer |
109-25315-00-00 |
from US $2.55 |
||
|
10
|
10
93306-30103-00 Bearing |
93306-30103-00 |
from US $12.75 |
||
| replacement | |||||
|
10
|
10
933-06301-02-00 Bearing |
933-06301-02-00 |
from US $12.75 |
||
|
11
|
11
93102-18008-00 Oil Seal |
93102-18008-00 |
from US $7.23 |
||
|
12
|
12
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
13
|
13
90201-20269-00 Washer, Plate |
90201-20269-00 |
from US $1.70 |
||
|
14
|
14
183-25149-00-00 Clutch, Meter |
183-25149-00-00 |
from US $2.98 |
||
|
15
|
15
37A-25135-00-00
Gear, Drive
|
37A-25135-00-00 |
— | ||
|
16
|
16
434-25121-02-00
Plate, Brake Shoe
|
434-25121-02-00 |
— | ||
|
17
|
17
434-25151-00-00
Camshaft
|
434-25151-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
93105-47007-00 Oil Seal |
93105-47007-00 |
from US $6.06 |
||
|
19
|
19
22F-W2534-00-00
Brakeshoe Set
|
22F-W2534-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
90506-16150-00 Spring, Tension (566) |
90506-16150-00 |
from US $3.97 |
||
|
21
|
21
137-25159-00-00
Seal, Camshaft
|
137-25159-00-00 |
— | ||
|
22
|
22
401-25155-11-00
Lever, Camshaft 1 (401-25155-00
401-25155-00 |
401-25155-11-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
401-25155-00 |
999-99999-99-00 |
— | ||
|
23
|
23
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
23
|
23
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
24
|
24
37A-25138-00-00
Gear, Meter
|
37A-25138-00-00 |
— | ||
|
25
|
25
90201-07076-00 Washer, Plate |
90201-07076-00 |
from US $1.70 |
||
|
26
|
26
109-25136-00-00 Bush |
109-25136-00-00 |
from US $10.71 |
||
|
27
|
27
93104-07003-00 Oil Seal, So-Type |
93104-07003-00 |
from US $1.84 |
||
|
28
|
28
90338-18014-00 Plug |
90338-18014-00 |
from US $2.13 |
||
|
29
|
29
401-25181-01-00 Axle, Wheel |
401-25181-01-00 |
from US $55.68 |
||
|
30
|
30
90387-12100-00
Collar
|
90387-12100-00 |
— | ||
|
31
|
31
2K5-25118-00-00 Cover, Hub Dust |
2K5-25118-00-00 |
from US $10.26 |
||
|
32
|
32
90387-12095-00 Collar |
90387-12095-00 |
from US $5.95 |
||
|
33
|
33
92990-12600-00 Washer, Plate |
92990-12600-00 |
from US $1.42 |
||
|
34
|
34
90171-12005-00 Nut, Castle |
90171-12005-00 |
from US $3.83 |
||
| replacement | |||||
|
34
|
34
90171-12039-00 Nut, Castle(36R) |
90171-12039-00 |
from US $2.27 |
||
|
35
|
35
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
35
|
35
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
36
|
36
434-25171-01-00
Bar, Tension
|
434-25171-01-00 |
— | ||
| replacement | |||||
|
36
|
36
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
37
|
37
90109-08234-00
Bolt
|
90109-08234-00 |
— | ||
| replacement | |||||
|
37
|
37
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
38
|
38
90109-08380-00
Bolt
|
90109-08380-00 |
— | ||
| replacement | |||||
|
38
|
38
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
39
|
39
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
39
|
39
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
40
|
40
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
41
|
41
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
41
|
41
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
42
|
42
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
42
|
42
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
