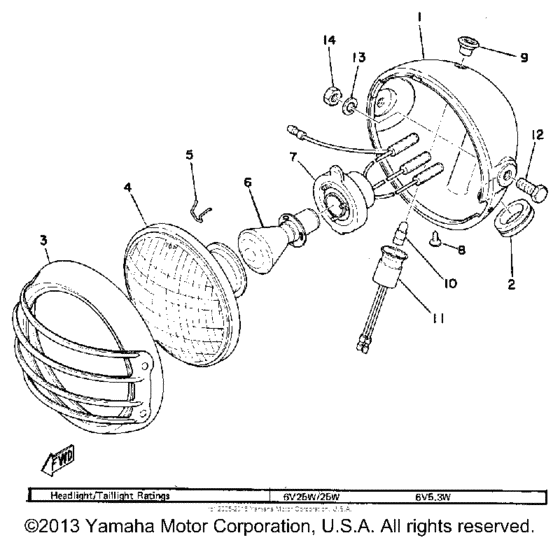

Head lamp Diagram Yamaha TY
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 175
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
539-84130-00-36
Body Assembly, Headlight
|
539-84130-00-36 |
— | ||
|
1
|
1
HEA-DLAMP-UN-IT
New Genuine Part
IN PRICE BOOK N/A |
HEA-DLAMP-UN-IT |
— | ||
|
2
|
2
150-84153-00-00 Grommet, Wrhrnes |
150-84153-00-00 |
from US $14.45 |
||
|
2
|
2
214-84101-61-00
Pilot Light Assembly
|
214-84101-61-00 |
— | ||
|
3
|
3
493-84115-60-00
Rim, Headlight
|
493-84115-60-00 |
— | ||
|
4
|
4
525-84120-60-00
Lens Assembly
|
525-84120-60-00 |
— | ||
|
5
|
5
195-84324-00-00 Spring, Reflector |
195-84324-00-00 |
from US $3.40 |
||
|
6
|
6
359-84114-00-00 Bulb, Hl6V25/25W (251-84114-00)251-84114-0 |
359-84114-00-00 |
from US $6.23 |
||
|
7
|
7
214-84112-61-00 SocketM5-040 |
214-84112-61-00 |
US $81.68 |
||
|
8
|
8
90152-05005-00 Screw, Countersunk |
90152-05005-00 |
from US $1.56 |
||
|
9
|
9
256-84357-61-00
Body, Pilot Light
|
256-84357-61-00 |
— | ||
|
10
|
10
104-83517-10-00 Bulb |
104-83517-10-00 |
from US $4.53 |
||
|
11
|
11
214-84150-61-00
Socket Cord Assembly 2
|
214-84150-61-00 |
— | ||
|
12
|
12
973-13080-20-00
Bolt (661)
661 |
973-13080-20-00 |
— | ||
| replacements | |||||
|
12
|
12
97080-08020-00 Bolt(6Td)661 |
97080-08020-00 |
from US $4.05 |
||
|
12
|
12
97013-08020-00 Bolt661 |
97013-08020-00 |
from US $1.64 |
||
|
13
|
13
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
14
|
14
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
14
|
14
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
