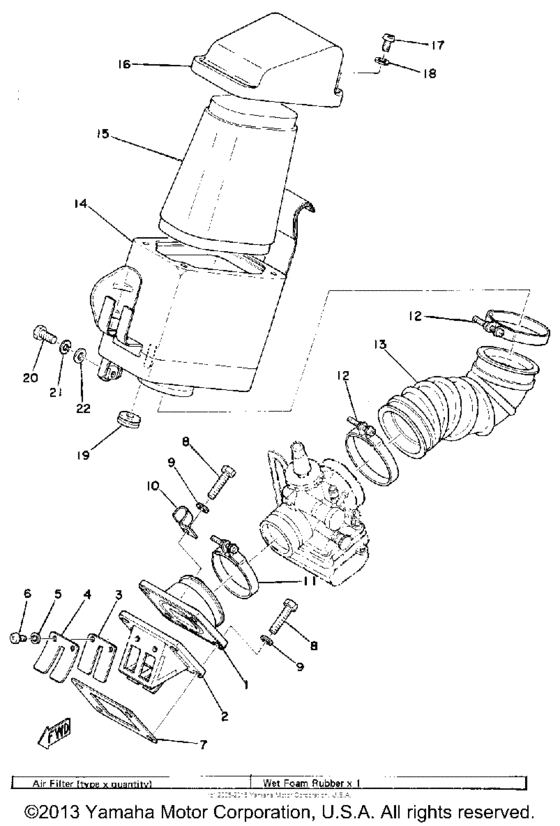

Intake Diagram Yamaha TY
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 175
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-13565-01-00
Joint, Carburetor
|
525-13565-01-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
314-13610-01-00 Reed Valve Assembly |
314-13610-01-00 |
from US $134.50 |
||
| replacement | |||||
|
2
|
2
53V-13610-00-00 Reed Valve Assembly |
53V-13610-00-00 |
from US $217.13 |
||
|
3
|
3
314-13613-01-00 Reed, Valve |
314-13613-01-00 |
from US $23.66 |
||
|
4
|
4
314-13616-01-00
Stopper, Reed Valve
|
314-13616-01-00 |
— | ||
| replacement | |||||
|
4
|
4
10X-13616-00-00
Stopper, Reed Valve
|
10X-13616-00-00 |
— | ||
|
5
|
5
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
6
|
6
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
7
|
7
87A-13621-00-00 Gasket, Valve Seat |
87A-13621-00-00 |
from US $4.11 |
||
|
8
|
8
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
8
|
8
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
10
|
10
90462-05005-00 Clamp |
90462-05005-00 |
from US $2.13 |
||
|
11
|
11
90460-43053-00 Clamp, Hose |
90460-43053-00 |
from US $7.65 |
||
| replacement | |||||
|
11
|
11
90460-43179-00 Clamp, Hose |
90460-43179-00 |
from US $7.65 |
||
|
12
|
12
90460-51059-00 Clamp, Hose |
90460-51059-00 |
from US $7.65 |
||
|
13
|
13
525-14453-00-00
Joint, Air Clnr 1
|
525-14453-00-00 |
— | ||
|
14
|
14
525-14411-00-00
Case, Air Cleaner 1
|
525-14411-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
525-14451-01-00 Element, Air Clnr |
525-14451-01-00 |
from US $28.42 |
||
| replacement | |||||
|
15
|
15
525-14451-02-00 ELEMENT, AIR CLEANER |
525-14451-02-00 |
from US $18.76 |
||
|
16
|
16
525-14412-01-00
Cap, Cleaner Case 1
|
525-14412-01-00 |
— | ||
|
17
|
17
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.36 |
||
|
18
|
18
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
19
|
19
90480-10091-00 Grommet (214-21746-00)214-21746-00 |
90480-10091-00 |
from US $2.83 |
||
|
20
|
20
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
20
|
20
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
22
|
22
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
22
|
22
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
