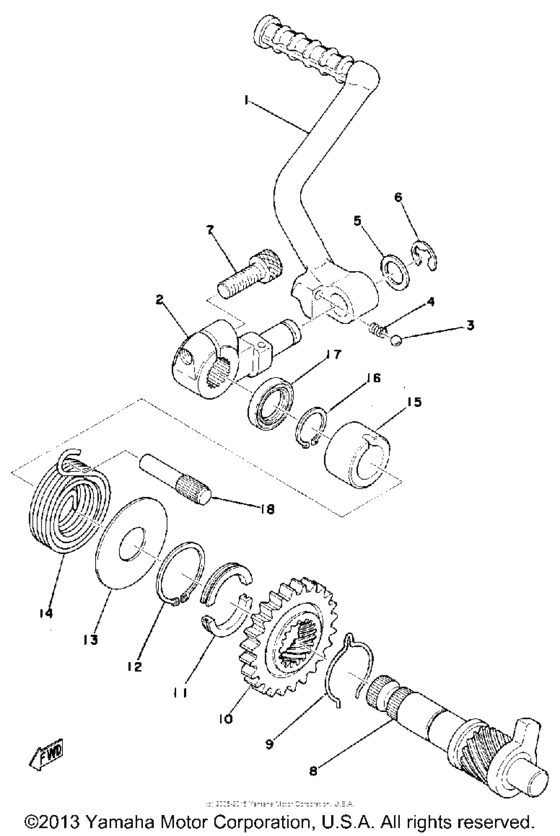

Kick starter Diagram Yamaha TY
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 175
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
999-99008-61-00 Crank Kick (525-15621-00-91)525-15621-00-91 |
999-99008-61-00 |
US $327.98 |
||
|
1
|
1
525-15611-01-93 New Genuine PartIN PRICE BOOK |
525-15611-01-93 |
US $140.41 |
||
|
2
|
2
999-99008-61-00 Crank Kick (525-15621-00-91)525-15621-00-91 |
999-99008-61-00 |
US $327.98 |
||
|
2
|
2
525-15611-01-93 New Genuine PartIN PRICE BOOK |
525-15611-01-93 |
US $140.41 |
||
|
3
|
3
93507-32031-00 Ball 7-32 |
93507-32031-00 |
from US $1.63 |
||
|
4
|
4
90501-12081-00 Spring, Compression |
90501-12081-00 |
from US $1.56 |
||
|
5
|
5
90201-12541-00 Washer, Plate |
90201-12541-00 |
from US $3.26 |
||
|
6
|
6
93430-08007-00 Circlip, E-Type |
93430-08007-00 |
from US $1.84 |
||
|
7
|
7
91316-08025-00 Bolt |
91316-08025-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
913-17080-25-00 Bolt |
913-17080-25-00 |
from US $1.16 |
||
|
8
|
8
525-15660-01-00 Kick Axle Assembly |
525-15660-01-00 |
US $184.72 |
||
|
9
|
9
90468-26048-00 Clip |
90468-26048-00 |
from US $1.94 |
||
|
10
|
10
315-15641-00-00 Gear, Kick27T |
315-15641-00-00 |
from US $59.13 |
||
|
11
|
11
248-15654-00-00 Holder, Kick Gear |
248-15654-00-00 |
from US $9.21 |
||
|
12
|
12
99009-30400-00 Circlip |
99009-30400-00 |
from US $1.56 |
||
|
13
|
13
401-15676-00-00 Cover, Spring |
401-15676-00-00 |
from US $2.98 |
||
|
14
|
14
90508-26041-00 Spring, Torsion |
90508-26041-00 |
from US $8.93 |
||
|
15
|
15
401-15666-00-00
Spacer
|
401-15666-00-00 |
— | ||
|
16
|
16
99009-17400-00 Circlip |
99009-17400-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
93410-17X00-00 Circlip |
93410-17X00-00 |
US $1.50 |
||
|
17
|
17
93101-17062-00 Oil Seal |
93101-17062-00 |
from US $8.22 |
||
|
18
|
18
257-15668-00-00 Stopper |
257-15668-00-00 |
from US $3.67 |
||
