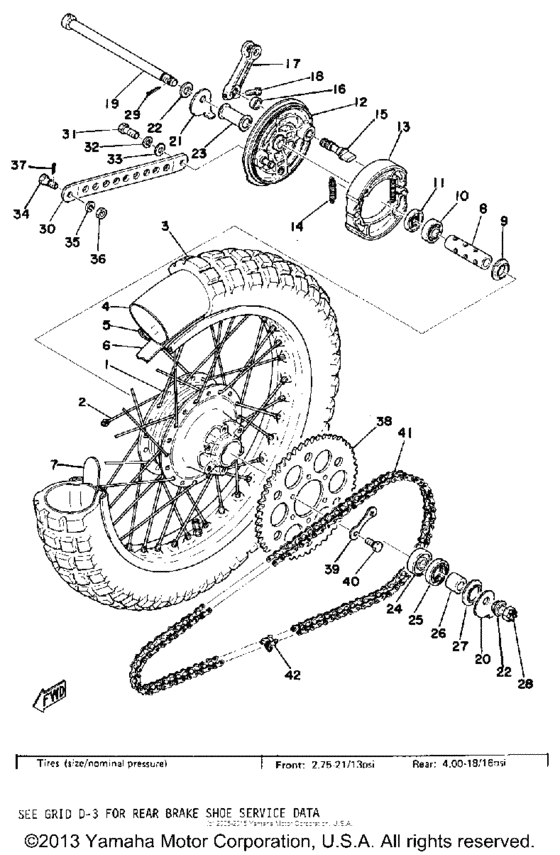

Rear wheel Diagram Yamaha TY
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 175
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
434-25311-01-00
Hub, Rear
|
434-25311-01-00 |
— | ||
|
2
|
2
434-25304-00-00 Spoke Set, Rear |
434-25304-00-00 |
US $166.21 |
||
|
3
|
3
941-40183-17-00
400X18 Dun Tri Uni
|
941-40183-17-00 |
— | ||
|
4
|
4
94240-18098-00 Tube (110-140/80-100-18 M/c)110-140/80-100-18 M/C |
94240-18098-00 |
US $38.32 |
||
| replacement | |||||
|
4
|
4
94212-18188-00 Tube (110-140/80-100-18 M/c)Tube 110-140/80-100-18 M/C |
94212-18188-00 |
US $39.29 |
||
|
5
|
5
94418-18154-00
Rim 1.85X18
1.85X18 |
94418-18154-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
1.85X18 |
999-99999-99-00 |
— | ||
|
6
|
6
94340-18022-00 Band, Rim (2.50-18)2.50-18 |
94340-18022-00 |
from US $4.39 |
||
| replacement | |||||
|
6
|
6
94340-18086-00 Band, Rim (2.50-18)2.50-18 |
94340-18086-00 |
from US $4.72 |
||
|
7
|
7
1T2-25394-00-00 Spacer, Bead |
1T2-25394-00-00 |
from US $50.02 |
||
|
8
|
8
434-25317-01-00
Spacer
|
434-25317-01-00 |
— | ||
| replacement | |||||
|
8
|
8
90560-15314-00
Spacer(1K6)
|
90560-15314-00 |
— | ||
|
9
|
9
146-25115-00-00 Flange, Spacer |
146-25115-00-00 |
from US $6.23 |
||
|
10
|
10
933-06202-04-00 Bearing |
933-06202-04-00 |
from US $12.06 |
||
|
11
|
11
93104-22018-00 Oil Seal |
93104-22018-00 |
from US $6.52 |
||
|
12
|
12
434-25321-01-00
Plate, Brake Shoe
|
434-25321-01-00 |
— | ||
|
13
|
13
437-W2536-00-00
Brake Shoe Set-2Pcs
|
437-W2536-00-00 |
— | ||
| replacement | |||||
|
13
|
13
3KG-W253E-00-00 Brake Shoe Kit |
3KG-W253E-00-00 |
from US $30.49 |
||
|
14
|
14
90506-17328-00 Spring, Tension |
90506-17328-00 |
from US $8.36 |
||
|
15
|
15
2RH-25351-00-00 Camshaft |
2RH-25351-00-00 |
from US $33.29 |
||
|
16
|
16
148-25359-00-00 Seal, Camshaft |
148-25359-00-00 |
from US $2.69 |
||
|
17
|
17
434-25355-01-00
Lever, Camshaft
|
434-25355-01-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
18
|
18
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
19
|
19
525-25381-00-00
Axle, Wheel
|
525-25381-00-00 |
— | ||
|
20
|
20
525-25388-00-00
Puller, Chain 1
|
525-25388-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
525-25389-00-00
Puller, Chain 2
|
525-25389-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
90201-15238-00 Washer, Plate |
90201-15238-00 |
from US $4.11 |
||
|
23
|
23
90387-15490-00
Collar
|
90387-15490-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
933-06302-02-00 Bearing (1H7) |
933-06302-02-00 |
from US $20.54 |
||
| replacement | |||||
|
24
|
24
93306-30212-00 Bearing |
93306-30212-00 |
from US $16.84 |
||
|
25
|
25
93106-26005-00 Oil Seal |
93106-26005-00 |
from US $7.08 |
||
|
26
|
26
90387-15489-00
Collar
|
90387-15489-00 |
— | ||
|
27
|
27
401-25367-00-00 Cover, Hub Dust |
401-25367-00-00 |
from US $8.08 |
||
|
28
|
28
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
28
|
28
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $7.42 |
||
|
29
|
29
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
29
|
29
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
|
30
|
30
434-25371-01-00
Bar, Tension
|
434-25371-01-00 |
— | ||
|
31
|
31
90101-10254-00 Bolt |
90101-10254-00 |
US $3.40 |
||
| replacement | |||||
|
31
|
31
90101-10303-00 Bolt |
90101-10303-00 |
from US $3.74 |
||
|
32
|
32
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
33
|
33
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
34
|
34
90109-08063-00 Bolt |
90109-08063-00 |
from US $4.39 |
||
|
35
|
35
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
36
|
36
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
36
|
36
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
37
|
37
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
37
|
37
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
38
|
38
525-25451-00-00
Sprocket, Drivn 51T
51T |
525-25451-00-00 |
— | ||
|
39
|
39
22W-25412-00-00 Washer |
22W-25412-00-00 |
from US $10.34 |
||
|
40
|
40
90109-08377-00
Bolt (214-25411-00)
214-25411-00 |
90109-08377-00 |
— | ||
|
41
|
41
94580-30114-00 Chain94524-28114 |
94580-30114-00 |
from US $33.86 |
||
| replacement | |||||
|
41
|
41
94A40-07114-00 94524-28114 |
94A40-07114-00 |
US $43.67 |
||
|
42
|
42
94680-24001-00 Chain Joint |
94680-24001-00 |
from US $2.83 |
||
| replacement | |||||
|
42
|
42
94681-64001-00 Joint, Chain |
94681-64001-00 |
from US $2.83 |
||
