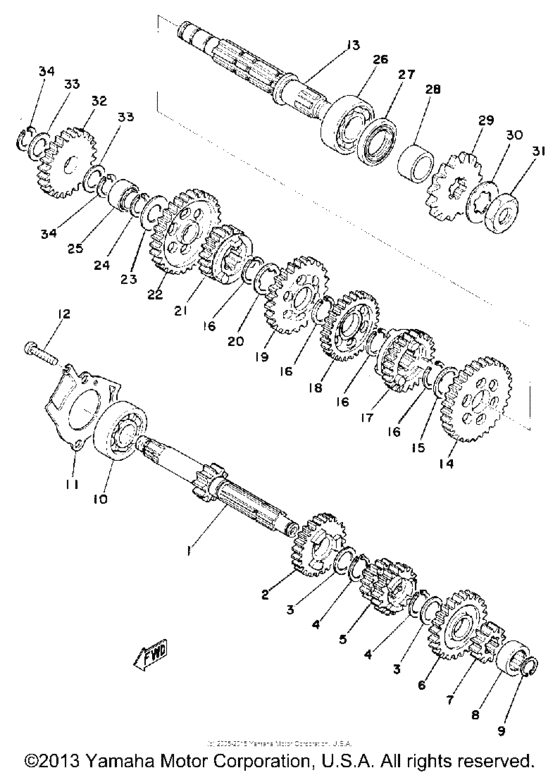

Transmission Diagram Yamaha TY
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 175
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-17411-00-00
Axle, Main
|
525-17411-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
525-17151-00-00
Gear, 5Th Pinion
5TH PINION |
525-17151-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
5TH PINION |
999-99999-99-00 |
— | ||
|
3
|
3
90201-17545-00 Washer, Plate |
90201-17545-00 |
from US $3.26 |
||
|
4
|
4
93410-17037-00 Circlip |
93410-17037-00 |
from US $1.70 |
||
|
5
|
5
525-17131-00-00
Gear, 3Rd Pinion
3RD PINION |
525-17131-00-00 |
— | ||
|
6
|
6
525-17161-00-00
Gear, 6Th Pinion
6TH PINION |
525-17161-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
6TH PINION |
999-99999-99-00 |
— | ||
|
7
|
7
525-17121-00-00
Gear, 2Nd Pinion
2ND PINION |
525-17121-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
2ND PINION |
999-99999-99-00 |
— | ||
|
8
|
8
933-18315-07-00
Bearing, Cylindrical
|
933-18315-07-00 |
— | ||
|
9
|
9
934-30108-01-09 Circlip |
934-30108-01-09 |
US $6.35 |
||
| replacement | |||||
|
9
|
9
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.39 |
||
|
10
|
10
933-06303-09-00
Bearing
|
933-06303-09-00 |
— | ||
| replacement | |||||
|
10
|
10
93306-30317-00 Bearing |
93306-30317-00 |
from US $27.74 |
||
|
11
|
11
1G8-17471-00-00 Plate, Cover |
1G8-17471-00-00 |
US $14.96 |
||
|
12
|
12
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
12
|
12
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
13
|
13
525-17421-00-00
Axle, Drive
|
525-17421-00-00 |
— | ||
|
14
|
14
525-17221-00-00
Gear, 2Nd Wheel
2ND WHEEL |
525-17221-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
2ND WHEEL |
999-99999-99-00 |
— | ||
|
15
|
15
90201-20266-00 Washer, Plate |
90201-20266-00 |
from US $1.56 |
||
|
16
|
16
93410-20038-00 Circlip |
93410-20038-00 |
from US $1.94 |
||
|
17
|
17
525-17261-00-00
Gear, 6Th Wheel
6TH WHEEL |
525-17261-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
6TH WHEEL |
999-99999-99-00 |
— | ||
|
18
|
18
525-17241-01-00
Gear, 4Th Wheel
4TH WHEEL |
525-17241-01-00 |
— | ||
|
19
|
19
525-17231-01-00
Gear, 3Rd Wheel
3RD WHEEL |
525-17231-01-00 |
— | ||
|
20
|
20
90209-16133-00 Washer |
90209-16133-00 |
US $4.97 |
||
|
21
|
21
525-17251-00-00
Gear, 5Th Wheel
5TH WHEEL |
525-17251-00-00 |
— | ||
|
22
|
22
525-17211-00-00
Gear, 1St Wheel
1ST WHEEL |
525-17211-00-00 |
— | ||
|
23
|
23
164-17427-00-06 Shim 1T=0.6 |
164-17427-00-06 |
from US $3.12 |
||
|
24
|
24
934-40150-12-00
Circlip
|
934-40150-12-00 |
— | ||
| replacement | |||||
|
24
|
24
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.18 |
||
|
25
|
25
93311-31567-00 Bearing |
93311-31567-00 |
from US $34.89 |
||
|
26
|
26
93306-20458-00 Bearing |
93306-20458-00 |
from US $22.62 |
||
| replacement | |||||
|
26
|
26
933-06204-68-00 Bearing(4Ed) |
933-06204-68-00 |
from US $29.27 |
||
|
27
|
27
931-02260-42-00 Oil Seal |
931-02260-42-00 |
from US $6.51 |
||
|
28
|
28
90387-202A0-00 Collar |
90387-202A0-00 |
from US $10.68 |
||
|
29
|
29
93822-14037-00 Sprocket, Drive (5N0-17461-40-014T1741746140 U.R |
93822-14037-00 |
from US $17.71 |
||
| replacement | |||||
|
29
|
29
938-22140-43-00 Sprocket, Drive (5N0-17461-40-014T1741746140 U.R |
938-22140-43-00 |
from US $24.68 |
||
|
29
|
29
93822-13024-00 Sprocket, Drive (13T)13T1741746130 STDU.R |
93822-13024-00 |
from US $18.84 |
||
| replacement | |||||
|
29
|
29
93822-13213-00 Sprocket, Drive (13T)13T1741746130 STDU.R |
93822-13213-00 |
from US $18.84 |
||
|
29
|
29
93822-12012-00 Sprocket,drive 12T(1741746120)12T1741746120 U.R |
93822-12012-00 |
from US $20.50 |
||
| replacements | |||||
|
29
|
29
3TU-17460-00-00 Drive Sprocket Assy (12T)12T1741746120 U.R |
3TU-17460-00-00 |
from US $26.39 |
||
|
29
|
29
93822-12011-00 Sprocket,drive 12T(1An1746120)12T1741746120 U.R |
93822-12011-00 |
from US $12.29 |
||
|
30
|
30
90215-16020-00 Washer, Lock |
90215-16020-00 |
from US $3.68 |
||
| replacement | |||||
|
30
|
30
90215-16127-00 Washer, Lock (1L8) |
90215-16127-00 |
from US $3.68 |
||
|
31
|
31
90179-16018-00 Nut |
90179-16018-00 |
from US $3.26 |
||
| replacement | |||||
|
31
|
31
90179-16226-00 Nut (1L8) |
90179-16226-00 |
from US $3.04 |
||
|
32
|
32
525-15651-00-00 Gear, Kick Idle (25T)25T |
525-15651-00-00 |
from US $44.76 |
||
|
33
|
33
137-17417-00-05 Shim 1 (0.5T)0.5T |
137-17417-00-05 |
from US $3.12 |
||
|
34
|
34
934-40150-12-00
Circlip
|
934-40150-12-00 |
— | ||
| replacement | |||||
|
34
|
34
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.18 |
||
