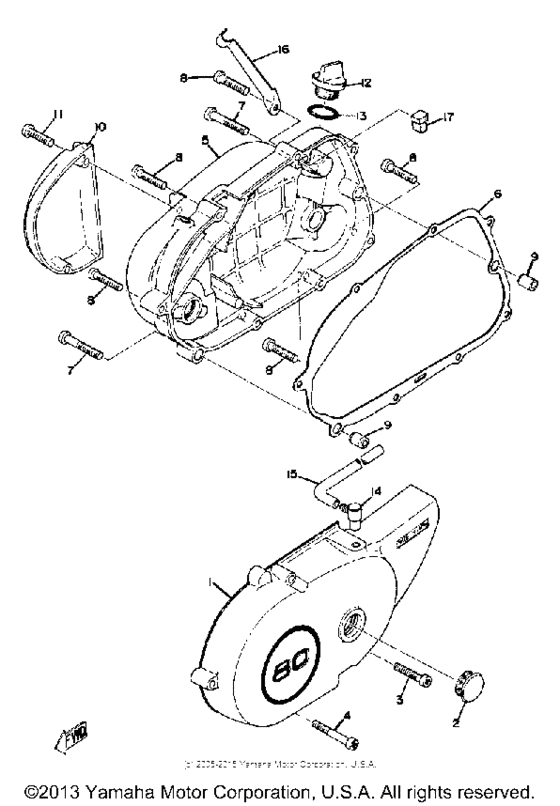

Crankcase cover Diagram Yamaha TY
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 800
- Model
- TY80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
451-15411-00-00
Cover, Crankcase L
|
451-15411-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
441-15417-01-00
Cover, Cap
|
441-15417-01-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
3
|
3
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
4
|
4
98580-06545-00 Screw, Pan Head (92503-06045-0092503-06045-00 |
98580-06545-00 |
from US $4.25 |
||
|
5
|
5
353-15421-00-00
Cover, Crankcase R
|
353-15421-00-00 |
— | ||
|
6
|
6
3MT-15451-00-00 Gasket, Crcs Cover |
3MT-15451-00-00 |
from US $19.72 |
||
|
7
|
7
98580-06040-00 Screw, Pan Head (90501-06040-0090501-06040-00 |
98580-06040-00 |
from US $1.39 |
||
|
8
|
8
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
8
|
8
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
9
|
9
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
9
|
9
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
9
|
9
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
10
|
10
353-15416-00-00 Cover, Oil Pump |
353-15416-00-00 |
US $39.44 |
||
|
11
|
11
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
11
|
11
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
12
|
12
1RG-15363-00-00 Plug, Oil |
1RG-15363-00-00 |
from US $17.14 |
||
| replacement | |||||
|
12
|
12
3Y1-15363-10-00 Plug, Oil |
3Y1-15363-10-00 |
from US $18.86 |
||
|
13
|
13
932-10211-90-00 O-Ring |
932-10211-90-00 |
from US $1.81 |
||
|
14
|
14
583-15371-00-00 Breather |
583-15371-00-00 |
from US $1.70 |
||
|
15
|
15
90446-07009-00 Hose |
90446-07009-00 |
US $4.25 |
||
| replacement | |||||
|
15
|
15
90446-07349-00 Hose(3Xp) |
90446-07349-00 |
from US $4.25 |
||
|
16
|
16
451-13174-00-00
Holder, Oil Pipe
|
451-13174-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
353-15437-02-00
Scraper, Oil
|
353-15437-02-00 |
— | ||
