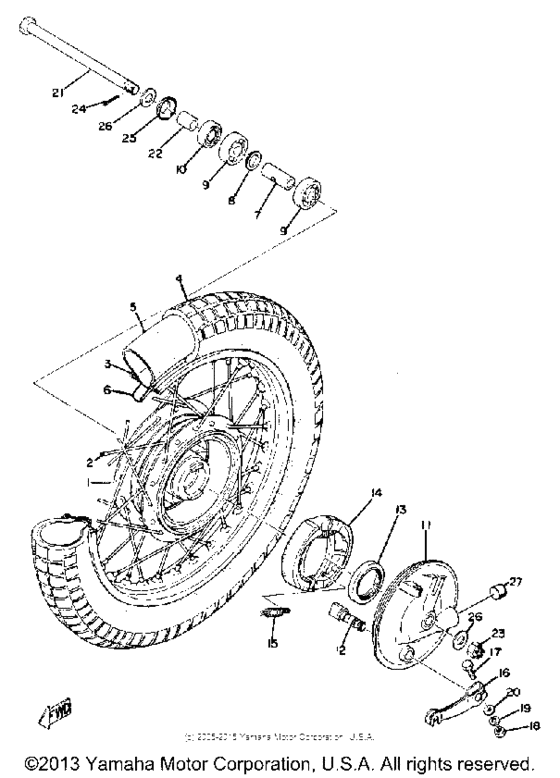

Front wheel Diagram Yamaha TY
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 800
- Model
- TY80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
451-25111-00-00
Hub, Front
|
451-25111-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
451-25104-01-00
Spoke Set, Front
|
451-25104-01-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
944-14161-17-00
Rim 1.40X16
1.40X16 |
944-14161-17-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
1.40X16 |
999-99999-99-00 |
— | ||
|
4
|
4
94125-16327-00
250X16 Irc Trials
|
94125-16327-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
94225-16048-00
Tube 250X16
250X16 |
94225-16048-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
250X16 |
999-99999-99-00 |
— | ||
|
6
|
6
94330-16058-00 Band, Rim (1.60-16)1.60-16 |
94330-16058-00 |
from US $4.25 |
||
|
7
|
7
90560-10103-00 Spacer |
90560-10103-00 |
from US $5.81 |
||
|
8
|
8
2E9-25116-00-00 Flange, Spacer 2 |
2E9-25116-00-00 |
from US $3.47 |
||
|
9
|
9
93306-20009-00 Bearing (3R0) |
93306-20009-00 |
from US $12.62 |
||
|
10
|
10
93106-17006-00 Oil Seal |
93106-17006-00 |
from US $4.68 |
||
|
11
|
11
451-25121-01-00
Plate, Brake Shoe
|
451-25121-01-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
1YT-25351-00-00 Camshaft |
1YT-25351-00-00 |
US $27.76 |
||
|
13
|
13
93106-40012-00 Oil Seal |
93106-40012-00 |
from US $5.10 |
||
| replacement | |||||
|
13
|
13
931-06400-01-00 Oil Seal |
931-06400-01-00 |
from US $5.10 |
||
|
14
|
14
451-W2535-00-00
Brakeshoe Set-2Pcs
|
451-W2535-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
90506-14081-00 Spring, Tension |
90506-14081-00 |
from US $1.35 |
||
|
16
|
16
451-25155-00-00 Lever, Camshaft 1 |
451-25155-00-00 |
from US $19.41 |
||
|
17
|
17
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
17
|
17
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.52 |
||
|
18
|
18
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
19
|
19
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
20
|
20
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
21
|
21
451-25181-01-00
Axle, Wheel
|
451-25181-01-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
90387-10282-00
Collar
|
90387-10282-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
90171-10004-00 Nut, Castle |
90171-10004-00 |
from US $2.41 |
||
| replacement | |||||
|
23
|
23
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $2.02 |
||
|
24
|
24
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
24
|
24
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
25
|
25
451-25118-00-00 Cover, Hub Dust |
451-25118-00-00 |
from US $11.05 |
||
|
26
|
26
90201-10437-00 Washer, Plate |
90201-10437-00 |
from US $1.65 |
||
| replacement | |||||
|
26
|
26
90201-105R9-00 Washer, Plate |
90201-105R9-00 |
from US $1.70 |
||
|
27
|
27
341-11161-00-00
Absorber 1
SVC353 |
341-11161-00-00 |
— | ||
