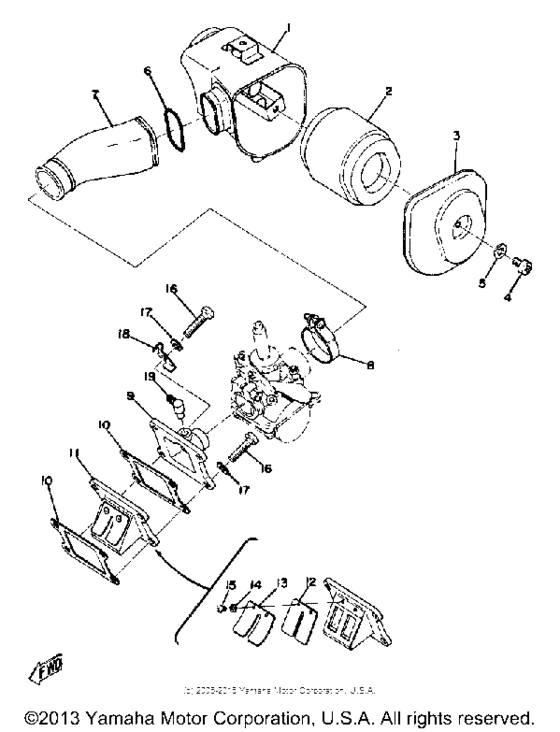

Intake Diagram Yamaha TY
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 800
- Model
- TY80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
451-14411-00-00
Case, Air Cleaner 1
|
451-14411-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
451-14451-00-00
Element, Air Clnr
|
451-14451-00-00 |
— | ||
|
3
|
3
451-14412-00-00
Cap, Cleaner Case 1
|
451-14412-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
5
|
5
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
6
|
6
90506-06075-00 Spring, Tension |
90506-06075-00 |
from US $4.68 |
||
|
7
|
7
451-14453-01-00
Joint, Air Clnr 1
|
451-14453-01-00 |
— | ||
|
8
|
8
90460-33013-00
Clamp, Hose (353-14455-00-00)
353-14455-00-00 |
90460-33013-00 |
— | ||
|
9
|
9
451-13565-00-00
Joint, Carburetor
|
451-13565-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
3MT-13621-00-00 Gasket, Valve Seat |
3MT-13621-00-00 |
from US $6.94 |
||
|
11
|
11
353-13610-01-00
Reed Valve Assembly
|
353-13610-01-00 |
— | ||
|
12
|
12
314-13613-01-00 Reed, Valve |
314-13613-01-00 |
from US $23.66 |
||
|
13
|
13
314-13616-01-00
Stopper, Reed Valve
|
314-13616-01-00 |
— | ||
| replacement | |||||
|
13
|
13
10X-13616-00-00
Stopper, Reed Valve
|
10X-13616-00-00 |
— | ||
|
14
|
14
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
15
|
15
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
16
|
16
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
16
|
16
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
16
|
16
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
18
|
18
367-15378-00-00
Holder
|
367-15378-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
278-13552-02-00
Nozzle
|
278-13552-02-00 |
— | ||
| replacement | |||||
|
19
|
19
3XV-13741-00-00
Nozzle
|
3XV-13741-00-00 |
— | ||
