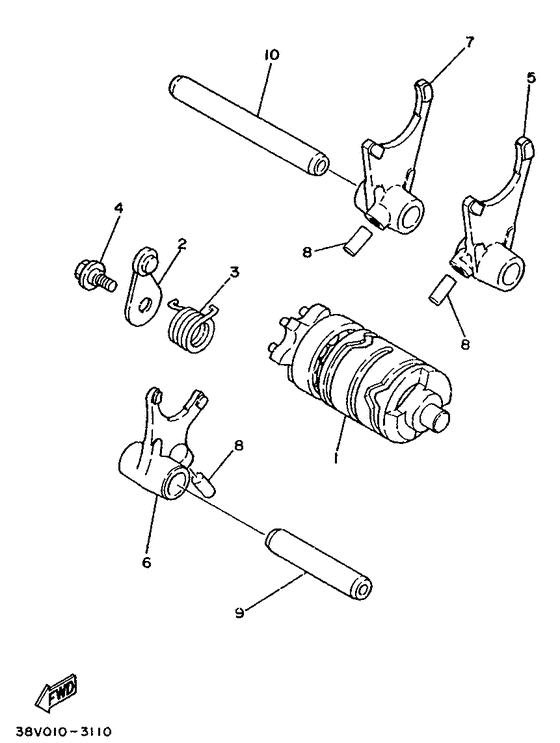

Shift Cam & Fork Diagram Yamaha TY250
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 2AF
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
38V-18540-00-00
Shift Cam Assembly
|
38V-18540-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
3R4-18140-00-00
Stopper Lever Assembly
|
3R4-18140-00-00 |
— | ||
|
03
|
03
90508-26421-00
Spring, Torsion (3R4)
|
90508-26421-00 |
— | ||
|
04
|
04
1W1-18177-00-00 Bolt |
1W1-18177-00-00 |
from US $2.55 |
||
| replacement | |||||
|
04
|
04
90109-06190-00 Bolt |
90109-06190-00 |
from US $2.45 |
||
|
05
|
05
38V-18511-00-00
Fork, Shift 1
|
38V-18511-00-00 |
— | ||
|
06
|
06
38V-18512-00-00
Fork, Shift 2
|
38V-18512-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
38V-18513-00-00
Fork, Shift 3
|
38V-18513-00-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
93606-14154-00 Pin, Dowel |
93606-14154-00 |
from US $3.26 |
||
|
09
|
09
5X5-18531-01-00 Bar, Shift Fork Guide 1 |
5X5-18531-01-00 |
from US $21.01 |
||
| replacement | |||||
|
09
|
09
4BA-18531-00-00 Bar, Shift Fork Guide 1 |
4BA-18531-00-00 |
from US $23.66 |
||
|
10
|
10
5X5-18535-01-00 Bar, Shift Fork Guide 2 |
5X5-18535-01-00 |
US $21.40 |
||
