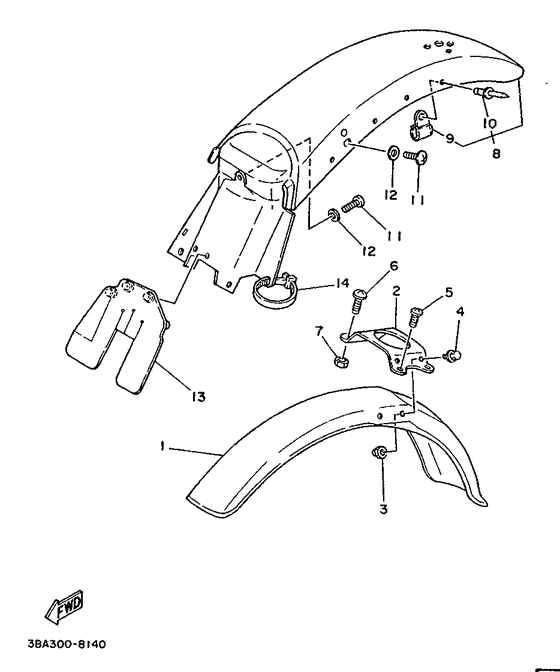

Fender Diagram Yamaha TY250
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 3BA
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
38V-21511-00-00 FenderWhite |
38V-21511-00-00 |
from US $36.08 |
||
| replacement | |||||
|
01
|
01
4AJ-21511-00-00 Fender, FrontWhite |
4AJ-21511-00-00 |
from US $40.86 |
||
|
02
|
02
38V-21512-00-00 Bracket, Fender |
38V-21512-00-00 |
US $60.77 |
||
| replacement | |||||
|
02
|
02
4GG-21512-00-00 Bracket, Fender |
4GG-21512-00-00 |
US $60.77 |
||
|
03
|
03
95601-05200-00 Nut, U Flange |
95601-05200-00 |
from US $1.42 |
||
| replacement | |||||
|
03
|
03
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.52 |
||
|
04
|
04
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
|
05
|
05
92011-06014-00 Screw |
92011-06014-00 |
from US $1.56 |
||
| replacement | |||||
|
05
|
05
92017-06014-00 Bolt, Button Head |
92017-06014-00 |
from US $1.66 |
||
|
06
|
06
92011-06030-00 Bolt, Button HeadScrew |
92011-06030-00 |
from US $1.56 |
||
| replacement | |||||
|
06
|
06
92017-06030-00 Bolt, Button Head |
92017-06030-00 |
from US $1.66 |
||
|
07
|
07
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
07
|
07
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
08
|
08
44J-21610-00-00 Rear FenderWhite |
44J-21610-00-00 |
from US $51.64 |
||
|
09
|
09
90465-08261-00 Clamp (46Y) |
90465-08261-00 |
US $3.40 |
||
| replacement | |||||
|
09
|
09
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
10
|
10
90267-32119-00
Rivet, Blind (46Y)
|
90267-32119-00 |
— | ||
|
11
|
11
92011-06014-00 Screw |
92011-06014-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
92017-06014-00 Bolt, Button Head |
92017-06014-00 |
from US $1.66 |
||
|
12
|
12
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
12
|
12
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
13
|
13
38V-21621-00-00
Flap
|
38V-21621-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
