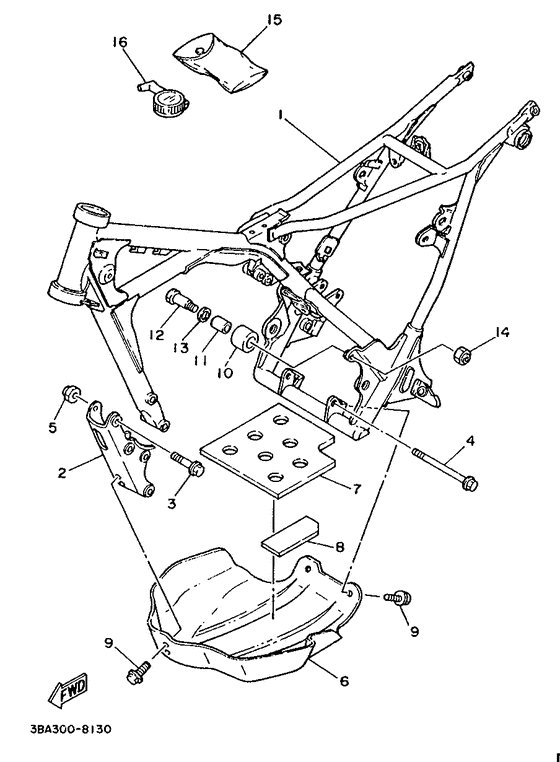

Frame Diagram Yamaha TY250
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 3BA
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3BA-21110-00-UJ
Frame Comp
Radical white |
3BA-21110-00-UJ |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Radical white |
999-99999-99-00 |
— | ||
|
02
|
02
38V-21316-01-UJ
Stay, Engine 3
Radical white |
38V-21316-01-UJ |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
Radical white |
999-99999-99-00 |
— | ||
|
03
|
03
95811-08065-00 Bolt, Flange |
95811-08065-00 |
from US $3.02 |
||
| replacements | |||||
|
03
|
03
95814-08065-00 Bolt, Flange |
95814-08065-00 |
from US $3.89 |
||
|
03
|
03
90105-08721-00 Bolt, Washer Based(4Jg) |
90105-08721-00 |
from US $5.97 |
||
|
04
|
04
90105-08354-00 Bolt, Flange |
90105-08354-00 |
from US $4.53 |
||
| replacement | |||||
|
04
|
04
95817-08120-00 Bolt, Flange |
95817-08120-00 |
from US $4.53 |
||
|
05
|
05
95601-08200-00 Nut, U |
95601-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
05
|
05
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
06
|
06
38V-21471-02-00
Protector, Engine
|
38V-21471-02-00 |
— | ||
| replacements | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
06
|
06
4AJ-21471-00-00
Protector, Engine
|
4AJ-21471-00-00 |
— | ||
|
07
|
07
38V-21485-01-00
Damper, Rubber 1
|
38V-21485-01-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
38V-21486-00-00 Damper 2 |
38V-21486-00-00 |
from US $14.54 |
||
|
09
|
09
95811-08016-00 Bolt, Flange |
95811-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
09
|
09
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
09
|
09
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
|
10
|
10
5X6-22178-00-00 Tensioner |
5X6-22178-00-00 |
from US $32.36 |
||
|
11
|
11
4V4-22184-00-00 Bush |
4V4-22184-00-00 |
from US $3.60 |
||
|
12
|
12
90109-08705-00 Bolt |
90109-08705-00 |
from US $10.13 |
||
|
13
|
13
90201-13202-00 Washer Plate 201156530000 |
90201-13202-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
90201-13013-00 Washer, Plate |
90201-13013-00 |
from US $1.70 |
||
|
14
|
14
95602-08200-00 Nut, U Flange |
95602-08200-00 |
from US $1.84 |
||
| replacement | |||||
|
14
|
14
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
15
|
15
38V-28100-00-00
Tool Kit
|
38V-28100-00-00 |
— | ||
| replacement | |||||
|
15
|
15
4ML-28100-00-00
Tool Kit
|
4ML-28100-00-00 |
— | ||
|
16
|
16
38V-2811A-01-00
Gauge, Air
|
38V-2811A-01-00 |
— | ||
