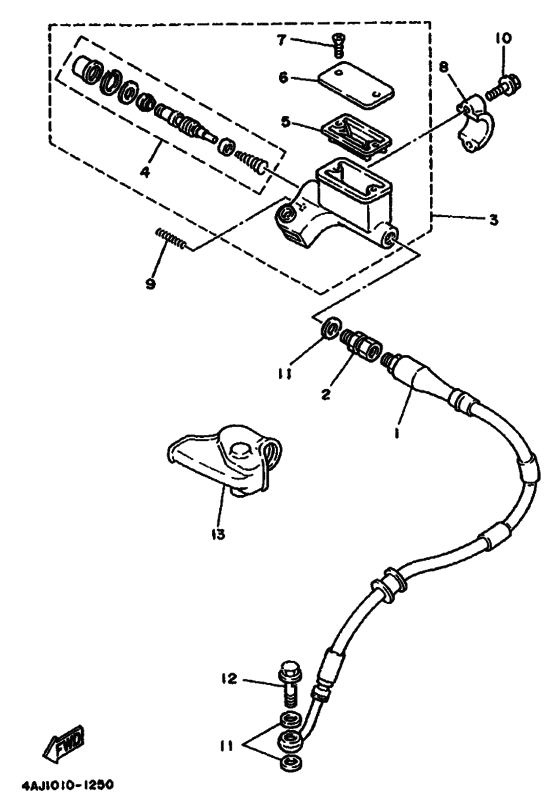

Front master cylinder Diagram Yamaha TY250
- Year
- 1991
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4AJ2
- Sales region
- Europe (999)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4AJ-25872-10-00
Hose, Brake 1
|
4AJ-25872-10-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
3LC-25885-00-00 Joint |
3LC-25885-00-00 |
from US $19.41 |
||
|
3
|
3
3SP-25870-00-00 Master Cylinder Sub Assy |
3SP-25870-00-00 |
from US $167.17 |
||
| replacement | |||||
|
3
|
3
3SP-25870-01-00 Master Cylinder Sub Assy |
3SP-25870-01-00 |
from US $167.17 |
||
|
4
|
4
3SP-W0041-00-00 Cylinder Kit, Master |
3SP-W0041-00-00 |
from US $42 |
||
|
5
|
5
56A-25854-00-00 Gasket, Diaphragm |
56A-25854-00-00 |
from US $17.14 |
||
|
6
|
6
2VN-25852-00-00 Cap, Reservoir |
2VN-25852-00-00 |
from US $13.84 |
||
| replacement | |||||
|
6
|
6
2VN-25852-02-00 Cap, Reservoir |
2VN-25852-02-00 |
from US $17.77 |
||
|
7
|
7
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
7
|
7
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
8
|
8
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
9
|
9
90501-061G2-00 Spring, Compression |
90501-061G2-00 |
from US $1.70 |
||
|
10
|
10
950-26060-25-00
Bolt, Flange
|
950-26060-25-00 |
— | ||
| replacements | |||||
|
10
|
10
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $2.22 |
||
|
10
|
10
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.52 |
||
|
11
|
11
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
11
|
11
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
12
|
12
90401-10146-00
Bolt, Union
|
90401-10146-00 |
— | ||
|
13
|
13
56A-26372-01-00 Cover, Handle Lever 1 |
56A-26372-01-00 |
from US $22.10 |
||
