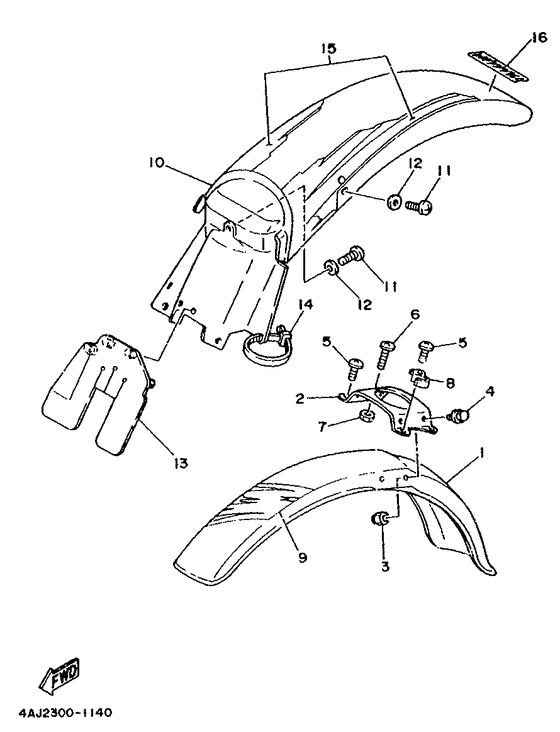

Fender Diagram Yamaha TY250
- Year
- 1991
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4AJ2
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4AJ-21511-00-00 Fender, Front |
4AJ-21511-00-00 |
from US $40.86 |
||
|
02
|
02
38V-21512-00-00 Bracket, Fender |
38V-21512-00-00 |
US $60.77 |
||
| replacement | |||||
|
02
|
02
4GG-21512-00-00 Bracket, Fender |
4GG-21512-00-00 |
US $60.77 |
||
|
03
|
03
95601-05200-00 Nut, U Flange |
95601-05200-00 |
from US $1.42 |
||
| replacement | |||||
|
03
|
03
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.52 |
||
|
04
|
04
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
|
05
|
05
92011-06014-00 Screw |
92011-06014-00 |
from US $1.56 |
||
| replacement | |||||
|
05
|
05
92017-06014-00 Bolt, Button Head |
92017-06014-00 |
from US $1.70 |
||
|
06
|
06
92011-06030-00 Bolt, Button HeadScrew |
92011-06030-00 |
from US $1.56 |
||
| replacement | |||||
|
06
|
06
92017-06030-00 Bolt, Button Head |
92017-06030-00 |
from US $1.66 |
||
|
07
|
07
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
07
|
07
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
08
|
08
4AJ-25875-00-00
Holder, Brake Hose 1
|
4AJ-25875-00-00 |
— | ||
|
09
|
09
4AJ-21575-00-00
Seal 1
|
4AJ-21575-00-00 |
— | ||
|
10
|
10
4AJ-21610-10-00
Rear Fender Comp
|
4AJ-21610-10-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
92011-06014-00 Screw |
92011-06014-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
92017-06014-00 Bolt, Button Head |
92017-06014-00 |
from US $1.70 |
||
|
12
|
12
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
12
|
12
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
13
|
13
38V-21621-00-00
Flap
|
38V-21621-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
|
15
|
15
4AJ-21660-00-00
Graphic
|
4AJ-21660-00-00 |
— | ||
|
16
|
16
99241-00020-00 Emblem, Yamaha |
99241-00020-00 |
from US $8.08 |
||
| replacement | |||||
|
16
|
16
99241-00080-00 Emblem, Yamaha |
99241-00080-00 |
from US $8.08 |
||
