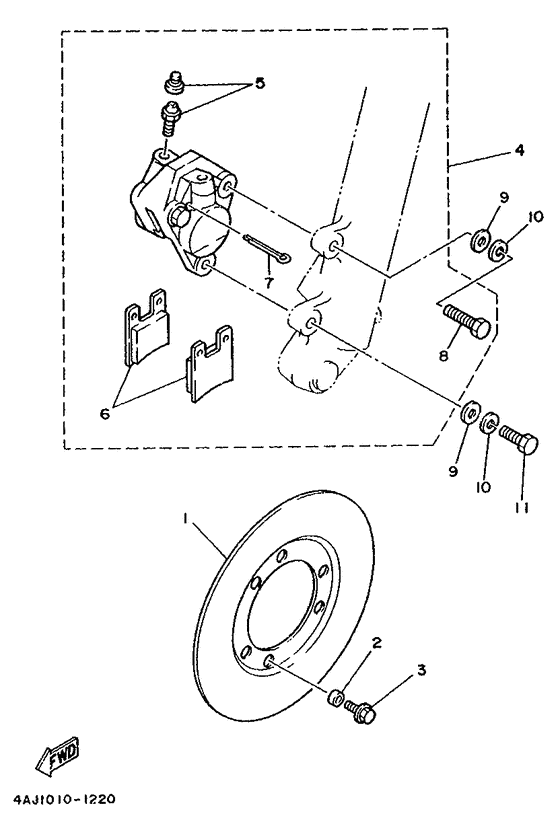

Front brake. caliper Diagram Yamaha TY250
- Year
- 1991
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4AJ2
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4AJ-2582T-00-00
Disc, Brake (Left)
|
4AJ-2582T-00-00 |
— | ||
|
02
|
02
90337-065X6-00
Collar
|
90337-065X6-00 |
— | ||
|
03
|
03
90105-06397-00 Bolt, Flange |
90105-06397-00 |
from US $1.35 |
||
| replacements | |||||
|
03
|
03
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.18 |
||
|
03
|
03
90105-06066-00 Bolt, Flange |
90105-06066-00 |
from US $1.70 |
||
|
03
|
03
90105-06154-00 Bolt, Flange |
90105-06154-00 |
from US $1.35 |
||
|
04
|
04
4AJ-2580T-00-00
Caliper Assy (Left)
|
4AJ-2580T-00-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
4AJ-W0048-00-00
Bleed Screw Kit
|
4AJ-W0048-00-00 |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
06
|
06
4AJ-W0045-00-00
Brake Pad Kit
|
4AJ-W0045-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
91490-40045-00 Pin. Cotter |
91490-40045-00 |
from US $3.04 |
||
|
08
|
08
98011-08055-00 Bolt |
98011-08055-00 |
US $4.68 |
||
| replacement | |||||
|
08
|
08
97017-08055-00 Bolt |
97017-08055-00 |
from US $4.68 |
||
|
09
|
09
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
09
|
09
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
10
|
10
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
11
|
11
97011-08025-00 Bolt(2Lt) |
97011-08025-00 |
from US $1.21 |
||
| replacement | |||||
|
11
|
11
97017-08025-00 Bolt |
97017-08025-00 |
from US $1.21 |
||
