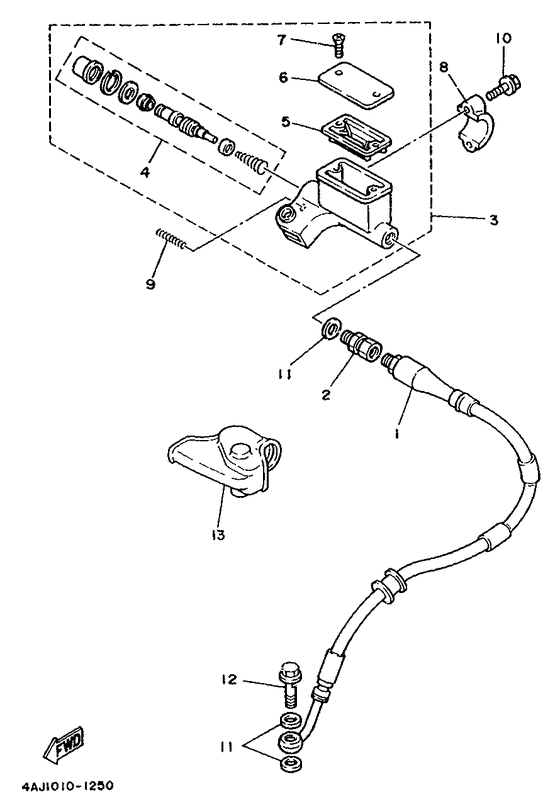

Front master cylinder Diagram Yamaha TY250
- Year
- 1991
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4AJ2
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4AJ-25872-10-00
Hose, Brake 1
|
4AJ-25872-10-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
3LC-25885-00-00 Joint |
3LC-25885-00-00 |
from US $19.41 |
||
|
03
|
03
3SP-25870-00-00 Master Cylinder Sub Assy |
3SP-25870-00-00 |
from US $167.17 |
||
| replacement | |||||
|
03
|
03
3SP-25870-01-00 Master Cylinder Sub Assy |
3SP-25870-01-00 |
from US $167.17 |
||
|
04
|
04
3SP-W0041-00-00 Cylinder Kit, Master |
3SP-W0041-00-00 |
from US $42 |
||
|
05
|
05
56A-25854-00-00 Gasket, Diaphragm |
56A-25854-00-00 |
from US $17.14 |
||
|
06
|
06
2VN-25852-00-00 Cap, Reservoir |
2VN-25852-00-00 |
from US $13.84 |
||
| replacement | |||||
|
06
|
06
2VN-25852-02-00 Cap, Reservoir |
2VN-25852-02-00 |
from US $17.77 |
||
|
07
|
07
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
07
|
07
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
08
|
08
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
09
|
09
90501-061G2-00 Spring, Compression |
90501-061G2-00 |
from US $1.70 |
||
|
10
|
10
950-26060-25-00
Bolt, Flange
|
950-26060-25-00 |
— | ||
| replacements | |||||
|
10
|
10
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $2.22 |
||
|
10
|
10
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.52 |
||
|
11
|
11
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
11
|
11
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
12
|
12
90401-10146-00
Bolt, Union
|
90401-10146-00 |
— | ||
|
13
|
13
56A-26372-01-00 Cover, Handle Lever 1 |
56A-26372-01-00 |
from US $22.10 |
||
