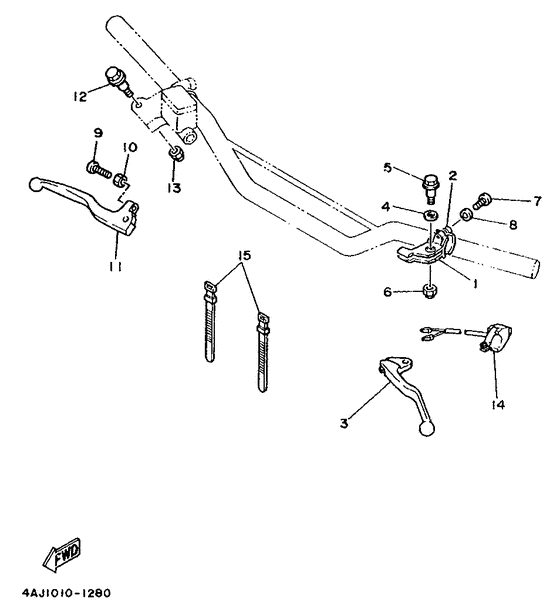

Handle switch & lever Diagram Yamaha TY250
- Year
- 1991
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4AJ2
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
38V-82911-00-00 Holder, Lever 1 |
38V-82911-00-00 |
from US $42.41 |
||
|
02
|
02
38V-82913-00-00 Holder, Lever Lower 1 |
38V-82913-00-00 |
from US $5.06 |
||
|
03
|
03
23X-83912-00-00
Lever 1
|
23X-83912-00-00 |
— | ||
| replacement | |||||
|
03
|
03
23X-83912-02-00 Lever 1 |
23X-83912-02-00 |
from US $21.96 |
||
|
04
|
04
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
05
|
05
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
05
|
05
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
06
|
06
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
06
|
06
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
07
|
07
985-06050-18-00
Screw, Pan Head
|
985-06050-18-00 |
— | ||
| replacement | |||||
|
07
|
07
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
08
|
08
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
08
|
08
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
09
|
09
90149-06153-00 Screw |
90149-06153-00 |
from US $1.70 |
||
| replacement | |||||
|
09
|
09
90149-06131-00 Screw |
90149-06131-00 |
from US $1.81 |
||
|
10
|
10
90170-06010-00 Nut |
90170-06010-00 |
from US $2.08 |
||
|
11
|
11
3SP-83922-00-00 Lever R |
3SP-83922-00-00 |
from US $23.94 |
||
| replacement | |||||
|
11
|
11
3SP-83922-01-00 Lever 2 |
3SP-83922-01-00 |
from US $18.80 |
||
|
12
|
12
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.52 |
||
|
13
|
13
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
13
|
13
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
14
|
14
23X-83976-00-00 Switch, Handle 1 |
23X-83976-00-00 |
from US $35.92 |
||
| replacement | |||||
|
14
|
14
23X-83976-01-00 Switch, Handle 1 |
23X-83976-01-00 |
from US $39.07 |
||
|
15
|
15
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
