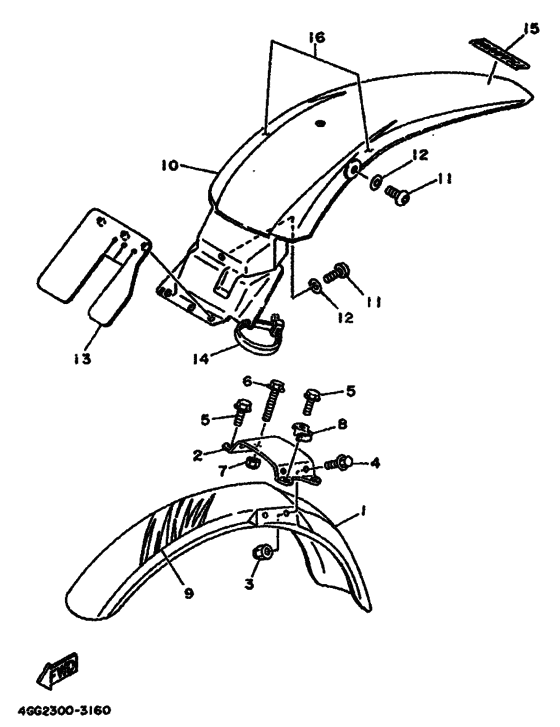

Fender Diagram Yamaha TY250
- Year
- 1993
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4GG2
- Sales region
- Europe (999)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4GG-21511-00-00
Fender, Front
|
4GG-21511-00-00 |
— | ||
|
2
|
2
4GG-21512-00-00 Bracket, Fender |
4GG-21512-00-00 |
US $60.77 |
||
|
3
|
3
95601-05200-00 Nut, U Flange |
95601-05200-00 |
from US $1.42 |
||
| replacement | |||||
|
3
|
3
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.52 |
||
|
4
|
4
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
|
5
|
5
95023-06012-00 Bolt, Flange (Small Head) |
95023-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
5
|
5
95024-06012-00 Bolt, Flange (Small Head) |
95024-06012-00 |
from US $1.56 |
||
|
6
|
6
95023-06030-00 Bolt, Flange (Small Head) |
95023-06030-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
95024-06030-00 Bolt, Flange (Small Head) |
95024-06030-00 |
from US $1.56 |
||
|
7
|
7
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
7
|
7
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
8
|
8
4AJ-25875-00-00
Holder, Brake Hose 1
|
4AJ-25875-00-00 |
— | ||
|
9
|
9
4GG-21569-00-00
Graphic 1
|
4GG-21569-00-00 |
— | ||
|
10
|
10
4GG-21610-10-00
Rear Fender Comp
|
4GG-21610-10-00 |
— | ||
|
11
|
11
92011-06014-00 Screw |
92011-06014-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
92017-06014-00 Bolt, Button Head |
92017-06014-00 |
from US $1.70 |
||
|
12
|
12
90201-06571-00 Washer, Plate |
90201-06571-00 |
from US $1.70 |
||
|
13
|
13
4GG-21621-00-00
Flap
|
4GG-21621-00-00 |
— | ||
|
14
|
14
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
|
15
|
15
99241-00080-00 Emblem, Yamaha |
99241-00080-00 |
from US $8.08 |
||
|
16
|
16
4GG-2165A-01-00
Graphic Set,rear Fender
|
4GG-2165A-01-00 |
— | ||
