Frame Diagram Yamaha TY250
- Year
- 1993
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4GG2
- Sales region
- Europe (999)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?

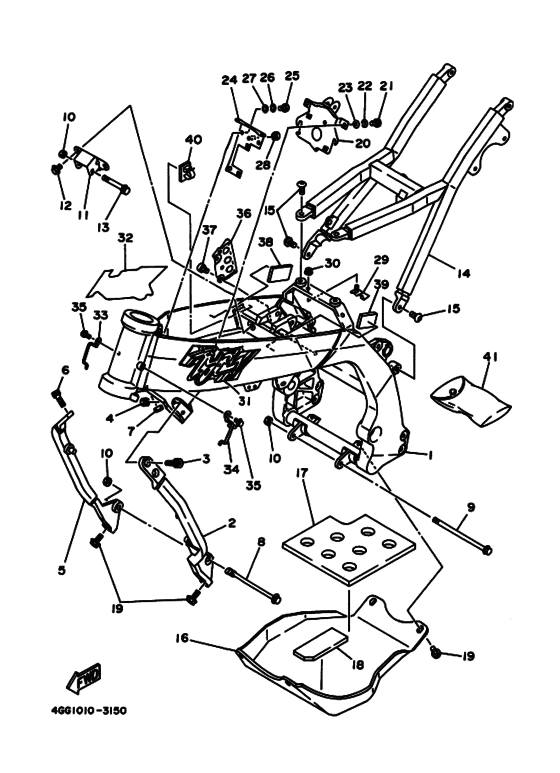

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4GG-21110-00-00
Frame Comp
|
4GG-21110-00-00 |
— | ||
|
2
|
2
4GG-21140-00-00
Down Tube Comp
|
4GG-21140-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99023-40-00
Down Tube Comp
|
999-99023-40-00 |
— | ||
|
3
|
3
91311-08030-00 Bolt, Hexagon Socket Head |
91311-08030-00 |
from US $1.07 |
||
| replacement | |||||
|
3
|
3
91314-08030-00 Bolt, Hexagon Socket Head |
91314-08030-00 |
from US $1.18 |
||
|
4
|
4
95611-08200-00 Nut, Self-Locking |
95611-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
4
|
4
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
5
|
5
4GG-21150-00-00
Down Tube Comp.2
|
4GG-21150-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99023-41-00
Down Tube Comp
|
999-99023-41-00 |
— | ||
|
6
|
6
91311-08030-00 Bolt, Hexagon Socket Head |
91311-08030-00 |
from US $1.07 |
||
| replacement | |||||
|
6
|
6
91314-08030-00 Bolt, Hexagon Socket Head |
91314-08030-00 |
from US $1.18 |
||
|
7
|
7
95611-08200-00 Nut, Self-Locking |
95611-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
7
|
7
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
8
|
8
90105-08223-00 Bolt, Flange |
90105-08223-00 |
from US $4.68 |
||
|
9
|
9
90105-08364-00 Bolt, Flange |
90105-08364-00 |
from US $5.68 |
||
|
10
|
10
95611-08200-00 Nut, Self-Locking |
95611-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
10
|
10
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
11
|
11
4GG-21415-00-00
Bracket, Front Upper 1
|
4GG-21415-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
13
|
13
90105-08212-00 Bolt, Flange |
90105-08212-00 |
US $4.53 |
||
| replacement | |||||
|
13
|
13
90105-08310-00 Bolt, Flange |
90105-08310-00 |
from US $4.53 |
||
|
14
|
14
4GG-21190-10-00
Rear Frame Comp
|
4GG-21190-10-00 |
— | ||
|
15
|
15
92011-08016-00 Bolt, Button Head |
92011-08016-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
92017-08016-00 Bolt, Button |
92017-08016-00 |
from US $1.56 |
||
|
16
|
16
4GG-21471-00-00
Protector, Engine
|
4GG-21471-00-00 |
— | ||
|
17
|
17
38V-21485-01-00
Damper, Rubber 1
|
38V-21485-01-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
38V-21486-00-00 Damper 2 |
38V-21486-00-00 |
from US $14.54 |
||
|
19
|
19
95811-08016-00 Bolt, Flange |
95811-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
19
|
19
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
19
|
19
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
|
20
|
20
4GG-21274-00-00
Bracket, C.d.i. Unit
|
4GG-21274-00-00 |
— | ||
|
21
|
21
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
21
|
21
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
22
|
22
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
23
|
23
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
23
|
23
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
23
|
23
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
24
|
24
4GG-21359-00-00
Bracket, Coil
|
4GG-21359-00-00 |
— | ||
|
25
|
25
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
25
|
25
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
26
|
26
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
27
|
27
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
27
|
27
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
27
|
27
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
27
|
27
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
28
|
28
90480-12320-00 Grommet |
90480-12320-00 |
from US $1.66 |
||
|
29
|
29
4GG-2133G-00-00
Bracket, Reserver
|
4GG-2133G-00-00 |
— | ||
|
30
|
30
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
30
|
30
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
31
|
31
4GG-2118E-00-00
Emblem 1
|
4GG-2118E-00-00 |
— | ||
|
32
|
32
4GG-2118F-00-00
Emblem 2
|
4GG-2118F-00-00 |
— | ||
|
33
|
33
4GG-21339-00-00
Guide, Wire
|
4GG-21339-00-00 |
— | ||
|
34
|
34
4GG-21339-10-00
Guide, Wire
|
4GG-21339-10-00 |
— | ||
| replacement | |||||
|
34
|
34
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
35
|
35
92011-06010-00 Screw |
92011-06010-00 |
from US $1.56 |
||
| replacement | |||||
|
35
|
35
92017-06010-00 Bolt, Button Head |
92017-06010-00 |
from US $1.56 |
||
|
36
|
36
4GG-27491-00-00
Protector
|
4GG-27491-00-00 |
— | ||
| replacement | |||||
|
36
|
36
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
37
|
37
920-16060-12-00 Bolt, Button Head |
920-16060-12-00 |
US $1.42 |
||
| replacements | |||||
|
37
|
37
92014-06012-00 Bolt, Button Head |
92014-06012-00 |
from US $1.18 |
||
|
37
|
37
92017-06012-00 Bolt, Button Head |
92017-06012-00 |
from US $1.52 |
||
|
38
|
38
4GG-2139X-00-00
Damper
|
4GG-2139X-00-00 |
— | ||
|
39
|
39
31A-28217-00-00 Damper 1 |
31A-28217-00-00 |
from US $4.50 |
||
|
40
|
40
90464-25160-00 Clamp |
90464-25160-00 |
from US $5.24 |
||
|
41
|
41
4GG-28100-00-00
Tool Kit
|
4GG-28100-00-00 |
— | ||
| replacement | |||||
|
41
|
41
4ML-28100-00-00
Tool Kit
|
4ML-28100-00-00 |
— | ||
