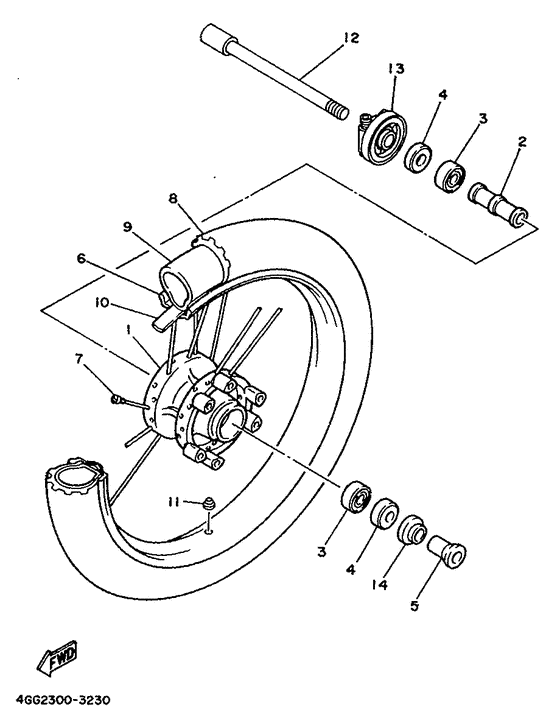

Front wheel Diagram Yamaha TY250
- Year
- 1993
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4GG2
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4AJ-25111-00-35
Hub, Front
Silver |
4AJ-25111-00-35 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Silver |
999-99999-99-00 |
— | ||
|
02
|
02
90560-15352-00 Spacer |
90560-15352-00 |
from US $11.19 |
||
| replacement | |||||
|
02
|
02
90560-15240-00 Spacer (34L) |
90560-15240-00 |
from US $11.23 |
||
|
03
|
03
93306-20226-00 Bearing |
93306-20226-00 |
from US $15.26 |
||
|
04
|
04
93106-20021-00 Oil Seal |
93106-20021-00 |
from US $5.13 |
||
|
05
|
05
90560-15375-00
Spacer
|
90560-15375-00 |
— | ||
|
06
|
06
94416-21493-00
Rim (1.60-21)
|
94416-21493-00 |
— | ||
|
07
|
07
4AJ-25104-00-00
Spoke Set, Front
|
4AJ-25104-00-00 |
— | ||
|
08
|
08
94127-2101V-00
Tire
Dunlop |
94127-2101V-00 |
— | ||
| replacement | |||||
|
08
|
08
94127-2104U-00
Tire (2.75-21)
Dunlop |
94127-2104U-00 |
— | ||
|
09
|
09
942-27211-23-00 Tube (Mcs 2.75/3.00-21 Tr6)Bridgestone |
942-27211-23-00 |
US $54.59 |
||
|
10
|
10
94330-21084-00 Band, Rim (1.60-21)Bridgestone |
94330-21084-00 |
from US $4.39 |
||
|
11
|
11
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.81 |
||
|
12
|
12
38V-25181-00-00
Axle, Wheel
|
38V-25181-00-00 |
— | ||
|
13
|
13
44J-25190-00-00
Gear Unit Assembly
|
44J-25190-00-00 |
— | ||
|
14
|
14
322-25118-00-00 Cover, Hub Dust |
322-25118-00-00 |
from US $10.63 |
||
