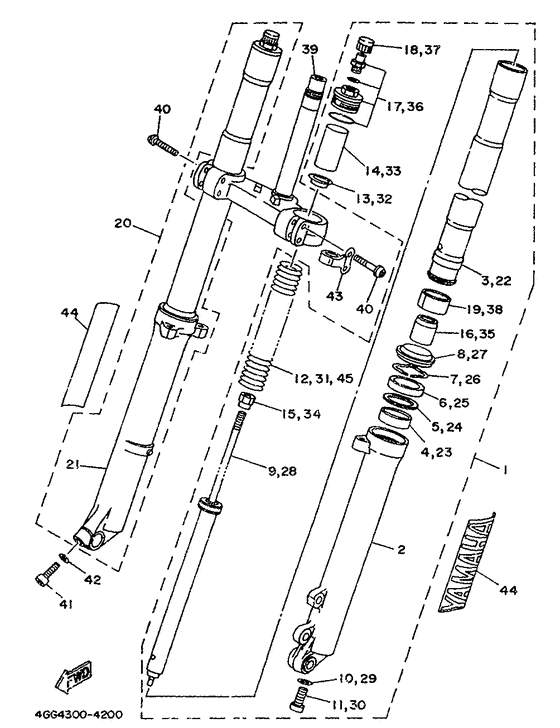

Front fork Diagram Yamaha TY250
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4GG6
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4GG-23102-40-00
Front Fork Assy (L.h)
|
4GG-23102-40-00 |
— | ||
|
02
|
02
4ML-23126-00-00
Tube, Outer (L.h)
|
4ML-23126-00-00 |
— | ||
|
03
|
03
4GG-23110-00-00
Inner Tube Comp.1
|
4GG-23110-00-00 |
— | ||
|
04
|
04
3JD-23125-L0-00 Metal, Slide 1 |
3JD-23125-L0-00 |
from US $21.11 |
||
| replacement | |||||
|
04
|
04
4FM-23125-40-00 Metal, Slide 1 |
4FM-23125-40-00 |
from US $23.31 |
||
|
05
|
05
36Y-23146-10-00 Washer, Oil Seal |
36Y-23146-10-00 |
from US $8.05 |
||
|
06
|
06
3SP-23145-L0-00 Oil Seal |
3SP-23145-L0-00 |
from US $10.10 |
||
|
07
|
07
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $4.58 |
||
|
08
|
08
3L0-23144-00-00
Seal, Dust
|
3L0-23144-00-00 |
— | ||
|
09
|
09
4GG-23170-00-00
Cylinder Comp., Front Fork
|
4GG-23170-00-00 |
— | ||
|
10
|
10
3K8-23158-L0-00
Gasket
|
3K8-23158-L0-00 |
— | ||
|
11
|
11
4GG-23181-00-00
Bolt, Hexagon Socket Head
|
4GG-23181-00-00 |
— | ||
|
12
|
12
4GG-23141-00-00
Spring, Front Fork
K=0.35 kg/mm |
4GG-23141-00-00 |
— | ||
|
13
|
13
3EN-23149-50-00 Washer, Spring Upper |
3EN-23149-50-00 |
from US $3.60 |
||
|
14
|
14
4GG-23118-00-00
Spacer
|
4GG-23118-00-00 |
— | ||
|
15
|
15
4DA-23778-L0-00 Nut |
4DA-23778-L0-00 |
US $32.96 |
||
|
16
|
16
4GG-23173-00-00
Spindle, Taper
|
4GG-23173-00-00 |
— | ||
|
17
|
17
4GG-23111-00-00
Bolt, Cap
|
4GG-23111-00-00 |
— | ||
|
18
|
18
24M-23184-00-00 Cap, Air Valve |
24M-23184-00-00 |
US $8.39 |
||
|
19
|
19
3JD-23171-L0-00 Metal, Slide |
3JD-23171-L0-00 |
from US $20.98 |
||
| replacement | |||||
|
19
|
19
4FM-23171-40-00 Metal, Slide |
4FM-23171-40-00 |
from US $13.48 |
||
|
20
|
20
4GG-23103-40-00
Front Fork Assy (R.h)
|
4GG-23103-40-00 |
— | ||
|
21
|
21
4ML-23136-00-00
Tube, Outer 2
|
4ML-23136-00-00 |
— | ||
| replacement | |||||
|
21
|
21
4GG-23136-20-00
Tube, Outer 2
|
4GG-23136-20-00 |
— | ||
|
22
|
22
4GG-23100-00-00
Front Fork Assy
|
4GG-23100-00-00 |
— | ||
|
23
|
23
3JD-23125-L0-00 Metal, Slide 1 |
3JD-23125-L0-00 |
from US $21.11 |
||
| replacement | |||||
|
23
|
23
4FM-23125-40-00 Metal, Slide 1 |
4FM-23125-40-00 |
from US $23.31 |
||
|
24
|
24
36Y-23146-10-00 Washer, Oil Seal |
36Y-23146-10-00 |
from US $8.05 |
||
|
25
|
25
3SP-23145-L0-00 Oil Seal |
3SP-23145-L0-00 |
from US $10.10 |
||
|
26
|
26
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $4.58 |
||
|
27
|
27
3LO-23144-00-00
Seal, Dust
|
3LO-23144-00-00 |
— | ||
|
28
|
28
4GG-23170-00-00
Cylinder Comp., Front Fork
|
4GG-23170-00-00 |
— | ||
|
29
|
29
2K8-23158-L0-00 Gasket |
2K8-23158-L0-00 |
from US $14.29 |
||
|
30
|
30
4GG-23181-00-00
Bolt, Hexagon Socket Head
|
4GG-23181-00-00 |
— | ||
|
31
|
31
4GG-23141-00-00
Spring, Front Fork
K-0.35 kg/mm |
4GG-23141-00-00 |
— | ||
|
32
|
32
3EN-23149-50-00 Washer, Spring Upper |
3EN-23149-50-00 |
from US $3.60 |
||
|
33
|
33
4GG-23118-00-00
Spacer
|
4GG-23118-00-00 |
— | ||
|
34
|
34
4DA-23778-L0-00 Nut |
4DA-23778-L0-00 |
US $32.96 |
||
|
35
|
35
4GG-23173-00-00
Spindle, Taper
|
4GG-23173-00-00 |
— | ||
|
36
|
36
4GG-23111-00-00
Bolt, Cap
|
4GG-23111-00-00 |
— | ||
|
37
|
37
24M-23184-00-00 Cap, Air Valve |
24M-23184-00-00 |
US $8.39 |
||
|
38
|
38
3JD-23171-LO-00
Piston, Front Fork
|
3JD-23171-LO-00 |
— | ||
|
39
|
39
4GG-23340-00-00
Under Bracket Comp
For japan |
4GG-23340-00-00 |
— | ||
|
39
|
39
4GG-23340-10-00
Under Bracket Comp
For europe |
4GG-23340-10-00 |
— | ||
|
40
|
40
90110-08071-00 Bolt, Hexagon Socket Head |
90110-08071-00 |
from US $4.16 |
||
|
41
|
41
91311-08028-00 Bolt, Skt Head 46Y |
91311-08028-00 |
US $1.07 |
||
| replacement | |||||
|
41
|
41
913-17080-25-00 Bolt |
913-17080-25-00 |
from US $1.16 |
||
|
42
|
42
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
43
|
43
3R4-23317-00-00 Holder, Cable |
3R4-23317-00-00 |
from US $25.08 |
||
|
44
|
44
99237-00160-00 Emblem, Yamaha |
99237-00160-00 |
from US $10.34 |
||
| replacement | |||||
|
44
|
44
99247-00160-00 Emblem, Yamaha |
99247-00160-00 |
from US $9.65 |
||
|
45
|
45
4GG-23141-10-00
Spring, Front Fork
Ap k=0.38 kg/mm |
4GG-23141-10-00 |
— | ||
