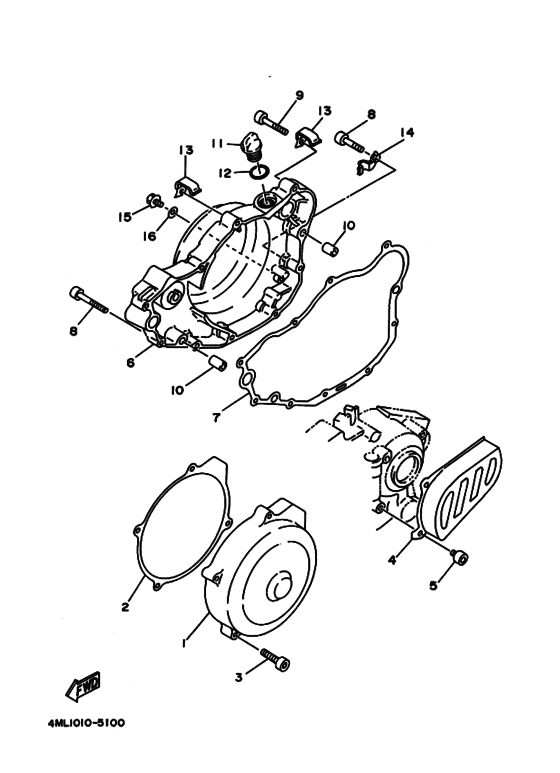

Crankcase cover 1 Diagram Yamaha TY250 SCOTTISH
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4ML1
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4GG-15411-00-00 Cover, Crankcase 1カバー，クランクケース １; |
4GG-15411-00-00 |
US $164.94 |
||
|
2
|
2
4GG-15451-00-00 Gasket, Crankcase Cover 1ガスケツト，クランクケースカバー; |
4GG-15451-00-00 |
US $11.19 |
||
|
3
|
3
913-17060-30-00
Bolt
ボルト; |
913-17060-30-00 |
— | ||
| replacement | |||||
|
3
|
3
90110-06138-00 Boltボルト; |
90110-06138-00 |
from US $0.99 |
||
|
4
|
4
4ML-15421-00-00
Cover, Crankcase 2
カバー，クランクケース ２; |
4ML-15421-00-00 |
— | ||
|
5
|
5
91317-06010-00 Boltボルト; |
91317-06010-00 |
from US $1.07 |
||
|
6
|
6
4ML-15431-00-00
Cover, Crankcase 3
カバー，クランクケース ３; |
4ML-15431-00-00 |
— | ||
|
7
|
7
4ML-15462-00-00 Gasket, Crankcase Cover 3ガスケツト，クランクケースカバー ３; |
4ML-15462-00-00 |
US $32.30 |
||
|
8
|
8
913-17060-30-00
Bolt
ボルト; |
913-17060-30-00 |
— | ||
| replacement | |||||
|
8
|
8
90110-06138-00 Boltボルト; |
90110-06138-00 |
from US $0.99 |
||
|
9
|
9
91317-06040-00 Boltボルト; |
91317-06040-00 |
from US $1.07 |
||
|
10
|
10
995-30100-14-00
Pin, Dowel
ピン，ダウエル; |
995-30100-14-00 |
— | ||
| replacements | |||||
|
10
|
10
99530-10114-00 Pin, Dowelピン，ダウエル; |
99530-10114-00 |
from US $1.70 |
||
|
10
|
10
995-10101-14-00
Pin, Dowel
ピン，ダウエル; |
995-10101-14-00 |
— | ||
|
11
|
11
1RG-15363-00-00 Plug, Oil |
1RG-15363-00-00 |
from US $17.14 |
||
| replacement | |||||
|
11
|
11
3Y1-15363-10-00 Plug, Oil |
3Y1-15363-10-00 |
from US $17.14 |
||
|
12
|
12
932-10191-23-00 O-Ring |
932-10191-23-00 |
from US $1.70 |
||
|
13
|
13
90465-08370-00 Clamp |
90465-08370-00 |
US $20.54 |
||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
90465-08372-00
Clamp
クランプ; |
90465-08372-00 |
— | ||
|
15
|
15
95027-06008-00 Bolt, Flangeボルト，フランジ; |
95027-06008-00 |
from US $1.43 |
||
|
16
|
16
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.28 |
||
