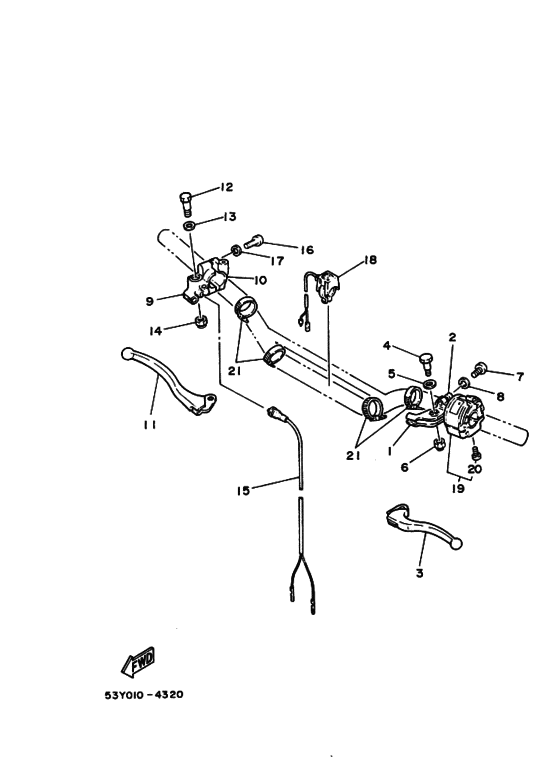

Handle switch & lever Diagram Yamaha TY250
- Year
- 1984
- Colour
- White (WW; 0036)
- Model code
- 53Y0
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33G-82911-00-00 Holder, Lever 1ホルダ，レバー １; |
33G-82911-00-00 |
from US $33.44 |
||
| replacement | |||||
|
1
|
1
1LN-82911-00-00 Holder, Lever 1ホルダ，レバー １; |
1LN-82911-00-00 |
from US $36.90 |
||
|
2
|
2
33G-82913-00-00
Holder, Lever Lower 1
ホルダ，レバーロワ １; |
33G-82913-00-00 |
— | ||
| replacement | |||||
|
2
|
2
33G-82913-01-00 Holder, Lever Lower 1ホルダ，レバーロワ １; |
33G-82913-01-00 |
from US $18.03 |
||
|
3
|
3
5Y1-83912-00-00 Lever 1レバー １; |
5Y1-83912-00-00 |
from US $23.52 |
||
| replacement | |||||
|
3
|
3
3FY-83912-02-00 Lever 1レバー １; |
3FY-83912-02-00 |
from US $23.52 |
||
|
4
|
4
90109-06576-00 Bolt |
90109-06576-00 |
from US $4.11 |
||
| replacements | |||||
|
4
|
4
90109-06017-00 Bolt |
90109-06017-00 |
from US $4.11 |
||
|
4
|
4
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
5
|
5
90201-082A9-00 Washer, Plateワツシヤ，プレート; |
90201-082A9-00 |
from US $1.70 |
||
| replacement | |||||
|
5
|
5
90201-08083-00 Washer, Plateワツシヤ，プレート; |
90201-08083-00 |
from US $1.60 |
||
|
6
|
6
95606-06100-00 Nut, Uナツト，Ｕ; |
95606-06100-00 |
US $1.21 |
||
| replacement | |||||
|
6
|
6
95617-06100-00 Nut, Uナツト，Ｕ; |
95617-06100-00 |
from US $1.39 |
||
|
7
|
7
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
7
|
7
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
8
|
8
929-06051-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-06051-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92907-05100-00 Washer, Springワツシヤ，スプリング; |
92907-05100-00 |
from US $1.56 |
||
|
9
|
9
33G-82921-00-00
Holder, Lever 2
ホルダ，レバー ２; |
33G-82921-00-00 |
— | ||
|
10
|
10
33G-82923-00-00 Holder,lever Lowerホルダ，レバーロワ; |
33G-82923-00-00 |
from US $19.60 |
||
| replacement | |||||
|
10
|
10
33G-82923-01-00 Holder, Lever Lowerホルダ，レバーロワ; |
33G-82923-01-00 |
from US $13.91 |
||
|
11
|
11
5Y1-83922-00-00 Lever 2レバー ２; |
5Y1-83922-00-00 |
from US $24.23 |
||
| replacement | |||||
|
11
|
11
5Y1-83922-11-00 LEVER 2レバー ２; |
5Y1-83922-11-00 |
from US $19.09 |
||
|
12
|
12
90109-06576-00 Bolt |
90109-06576-00 |
from US $4.11 |
||
| replacements | |||||
|
12
|
12
90109-06017-00 Bolt |
90109-06017-00 |
from US $4.11 |
||
|
12
|
12
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
13
|
13
90201-082A9-00 Washer, Plateワツシヤ，プレート; |
90201-082A9-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
90201-08083-00 Washer, Plateワツシヤ，プレート; |
90201-08083-00 |
from US $1.60 |
||
|
14
|
14
95606-06100-00 Nut, Uナツト，Ｕ; |
95606-06100-00 |
US $1.21 |
||
| replacement | |||||
|
14
|
14
95617-06100-00 Nut, Uナツト，Ｕ; |
95617-06100-00 |
from US $1.39 |
||
|
15
|
15
361-83980-30-00 Front Stop Switch Assy |
361-83980-30-00 |
from US $25.58 |
||
| replacement | |||||
|
15
|
15
395-83980-09-00 Front Stop Switch Assy |
395-83980-09-00 |
from US $28.79 |
||
|
16
|
16
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
16
|
16
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
17
|
17
929-06051-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-06051-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92907-05100-00 Washer, Springワツシヤ，スプリング; |
92907-05100-00 |
from US $1.56 |
||
|
18
|
18
22W-83976-00-00 Switch, Handle 1 |
22W-83976-00-00 |
from US $35.92 |
||
| replacements | |||||
|
18
|
18
23X-83976-00-00 Switch, Handle 1 |
23X-83976-00-00 |
from US $35.92 |
||
|
18
|
18
23X-83976-01-00 Switch, Handle 1 |
23X-83976-01-00 |
from US $41.81 |
||
|
19
|
19
53Y-85972-00-00
ｽｲﾂﾁ,ﾊﾝﾄﾞﾙ 4
スイツチ，ハンドル ４; |
53Y-85972-00-00 |
— | ||
|
20
|
20
985-06050-30-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-06050-30-00 |
— | ||
| replacement | |||||
|
20
|
20
98517-05030-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05030-00 |
from US $1.22 |
||
|
21
|
21
437-83936-00-00
Band, Switch Cord
バンド，スイツチコード; |
437-83936-00-00 |
— | ||
| replacement | |||||
|
21
|
21
437-83936-01-00 Band, Switch Cordバンド，スイツチコード; |
437-83936-01-00 |
from US $1.81 |
||
