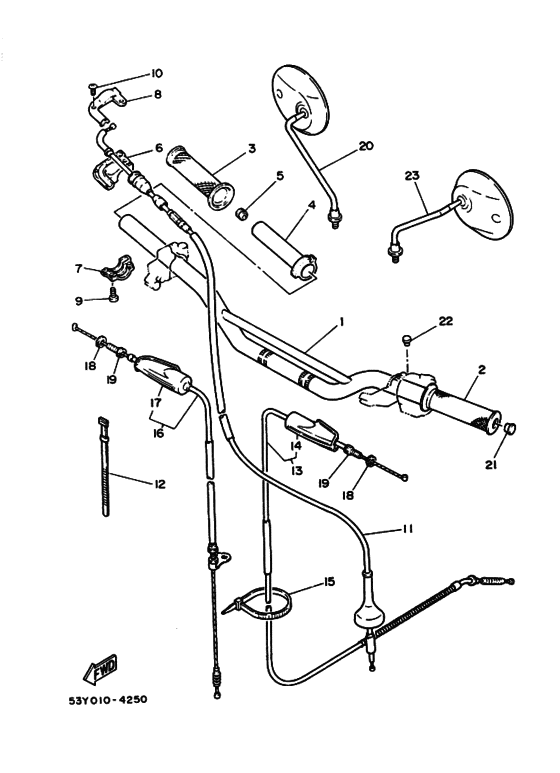

Steering handle & cable Diagram Yamaha TY250
- Year
- 1984
- Colour
- White (WW; 0036)
- Model code
- 53Y0
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53Y-26111-00-00
Handlebar
ハンドルバー; |
53Y-26111-00-00 |
— | ||
|
2
|
2
38V-26241-00-00 Grip Lhグリツプ ; レフト |
38V-26241-00-00 |
US $21.17 |
||
|
3
|
3
38V-26242-00-00
Grip Rh
グリツプ ; ライト |
38V-26242-00-00 |
— | ||
|
4
|
4
434-26243-12-00 Tube, Throttle Guideチユーブ，スロツトルガイド; |
434-26243-12-00 |
from US $12.62 |
||
|
5
|
5
688-82535-00-00 Plug |
688-82535-00-00 |
from US $2.41 |
||
| replacement | |||||
|
5
|
5
90338-12192-00 Plug(2Gu) |
90338-12192-00 |
from US $2.02 |
||
|
6
|
6
38V-26281-00-98 Cap, Grip Upperツヤケシブラツク |
38V-26281-00-98 |
from US $29.04 |
||
|
7
|
7
493-26282-00-98 Cap, Grip Underキヤツプ，グリツプロワー; ツヤケシブラツク |
493-26282-00-98 |
from US $37.44 |
||
|
8
|
8
38V-2628H-00-00 Cap, Wireキヤプ，ワイヤ; |
38V-2628H-00-00 |
from US $8.22 |
||
|
9
|
9
985-06050-16-00
Screw, Pan Head
|
985-06050-16-00 |
— | ||
| replacements | |||||
|
9
|
9
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
9
|
9
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
10
|
10
98606-04012-00 Screw, Flat Headスクリユ，オーバルヘツド; |
98606-04012-00 |
from US $1.42 |
||
| replacement | |||||
|
10
|
10
98707-04012-00 Screw, Flat Headスクリユ，オーバルヘツド; |
98707-04012-00 |
from US $1.52 |
||
|
11
|
11
38V-26311-01-00
Cable, Throttle 1
ケーブル，スロツトル １; |
38V-26311-01-00 |
— | ||
|
12
|
12
437-83936-10-00 Band, Switch Cordバンド，スイツチコード; |
437-83936-10-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
437-83936-11-00 Band, Switch Cordバンド，スイツチコード; |
437-83936-11-00 |
from US $1.56 |
||
|
13
|
13
38V-26335-00-00
Cable, clutch
ケーブル，クラツチ; |
38V-26335-00-00 |
— | ||
|
14
|
14
382-26372-01-00
Cover, Handle Lever 1
．カバー，ハンドルレバー １; |
382-26372-01-00 |
— | ||
| replacement | |||||
|
14
|
14
498-26372-00-00 Cover, Lever．カバー，ハンドルレバー １; |
498-26372-00-00 |
from US $6.38 |
||
|
15
|
15
90465-13152-00 Band |
90465-13152-00 |
from US $1.28 |
||
| replacement | |||||
|
15
|
15
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
16
|
16
53Y-26341-00-00
Cable, Brake
ケーブル，ブレーキ; |
53Y-26341-00-00 |
— | ||
| replacement | |||||
|
16
|
16
53Y-26341-01-00
Wire, Brake Front
ケーブル，ブレーキ; |
53Y-26341-01-00 |
— | ||
|
17
|
17
498-26372-00-00 Cover, Lever．カバー，ハンドルレバー １; |
498-26372-00-00 |
from US $6.38 |
||
|
18
|
18
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
18
|
18
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
19
|
19
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
19
|
19
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
20
|
20
48Y-26290-00-00 Back Mirror Assy (Right)バツクミラーアセンブリ ; ライト |
48Y-26290-00-00 |
US $51.12 |
||
| replacement | |||||
|
20
|
20
55V-26290-00-00 Rear View Mirror Assy (Right)バツクミラーアセンブリ ; ライト |
55V-26290-00-00 |
US $51.12 |
||
|
21
|
21
90339-18122-00
Plug
プラグ; |
90339-18122-00 |
— | ||
|
22
|
22
90338-09012-00 Plug |
90338-09012-00 |
from US $3.33 |
||
|
23
|
23
48Y-26290-10-00 Back Mirror Assy (Left)バツクミラーアセンブリ ; レフト; ＡＰ |
48Y-26290-10-00 |
US $51.12 |
||
| replacement | |||||
|
23
|
23
55V-26280-00-00 Rear View Mirror Assy(Left)Back mirror assy (left) バツクミラーアセンブリ ; レフト; ＡＰ |
55V-26280-00-00 |
from US $51.12 |
||
