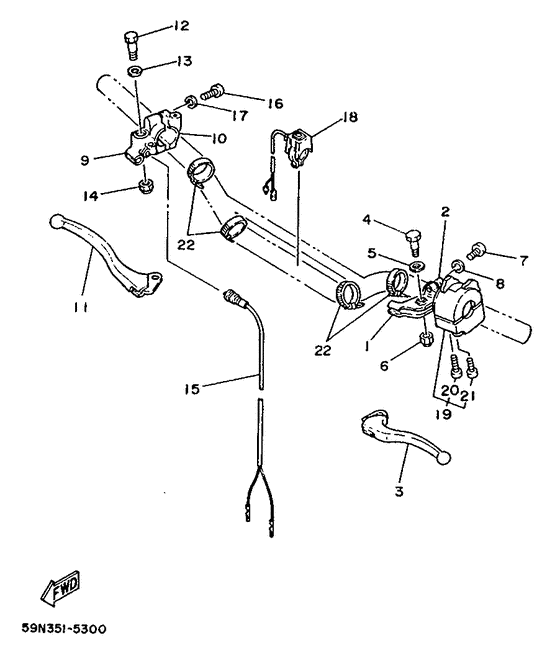

Handle switch & lever Diagram Yamaha TY250
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 59N
- Sales region
- England (999)
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
33G-82911-00-00 Holder, Lever 1 |
33G-82911-00-00 |
from US $33.44 |
||
| replacement | |||||
|
01
|
01
1LN-82911-00-00 Holder, Lever 1 |
1LN-82911-00-00 |
from US $36.90 |
||
|
02
|
02
33G-82913-00-00
Holder, Lever Lower 1
|
33G-82913-00-00 |
— | ||
| replacement | |||||
|
02
|
02
33G-82913-01-00 Holder, Lever Lower 1 |
33G-82913-01-00 |
from US $18.03 |
||
|
03
|
03
5Y1-83912-00-00 Lever 1 |
5Y1-83912-00-00 |
from US $23.52 |
||
| replacement | |||||
|
03
|
03
3FY-83912-02-00 Lever 1 |
3FY-83912-02-00 |
from US $23.52 |
||
|
04
|
04
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
04
|
04
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
05
|
05
90201-082A9-00 Washer, Plate |
90201-082A9-00 |
from US $1.70 |
||
| replacement | |||||
|
05
|
05
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
06
|
06
95606-06100-00 Nut, U |
95606-06100-00 |
US $1.21 |
||
| replacement | |||||
|
06
|
06
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
07
|
07
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
07
|
07
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
08
|
08
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
08
|
08
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
09
|
09
33G-82921-00-00
Holder, Lever 2
|
33G-82921-00-00 |
— | ||
|
10
|
10
33G-82923-00-00 Holder,lever Lower |
33G-82923-00-00 |
from US $19.60 |
||
| replacement | |||||
|
10
|
10
33G-82923-01-00 Holder, Lever Lower |
33G-82923-01-00 |
from US $13.91 |
||
|
11
|
11
5Y1-83922-00-00 Lever 2 |
5Y1-83922-00-00 |
from US $24.23 |
||
| replacement | |||||
|
11
|
11
5Y1-83922-11-00 LEVER 2 |
5Y1-83922-11-00 |
from US $19.09 |
||
|
12
|
12
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
12
|
12
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
13
|
13
90201-082A9-00 Washer, Plate |
90201-082A9-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
14
|
14
95606-06100-00 Nut, U |
95606-06100-00 |
US $1.21 |
||
| replacement | |||||
|
14
|
14
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
15
|
15
395-83980-00-00 Front Stop Switch As |
395-83980-00-00 |
from US $34.31 |
||
| replacement | |||||
|
15
|
15
395-83980-09-00 Front Stop Switch Assy |
395-83980-09-00 |
from US $28.79 |
||
|
16
|
16
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
16
|
16
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
17
|
17
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
18
|
18
53Y-83976-00-00 Switch, Handle 1 |
53Y-83976-00-00 |
from US $35.51 |
||
|
19
|
19
59N-83973-00-00
Switch, Handle 3
|
59N-83973-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
985-06050-30-00
Screw, Pan Head
|
985-06050-30-00 |
— | ||
| replacement | |||||
|
20
|
20
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
21
|
21
98506-05035-00 Screw, Pan Head |
98506-05035-00 |
from US $1.42 |
||
| replacement | |||||
|
21
|
21
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
22
|
22
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
22
|
22
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
