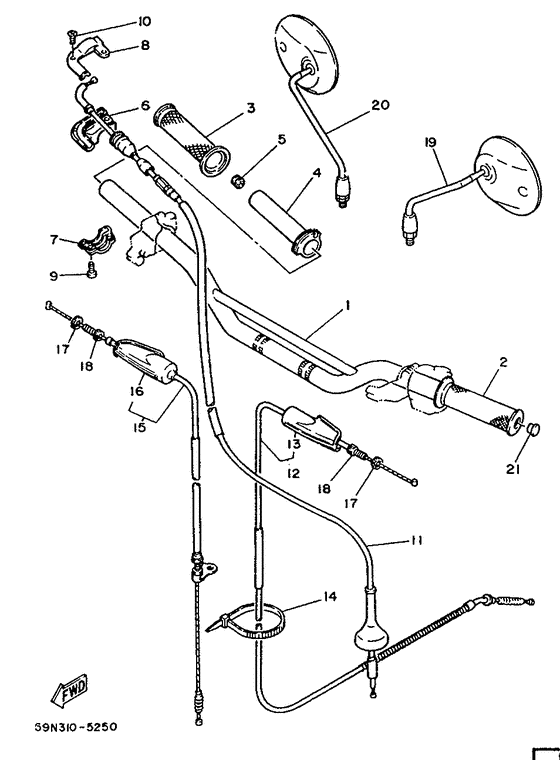

Steering handle & cable Diagram Yamaha TY250
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 59N
- Sales region
- England (999)
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
53Y-26111-00-00
Handlebar
|
53Y-26111-00-00 |
— | ||
|
02
|
02
38V-26241-00-00 Grip Lh |
38V-26241-00-00 |
US $21.17 |
||
|
03
|
03
38V-26242-00-00
Grip Rh
|
38V-26242-00-00 |
— | ||
|
04
|
04
434-26243-12-00 Tube, Throttle Guide |
434-26243-12-00 |
from US $12.62 |
||
|
05
|
05
688-82535-00-00 Plug |
688-82535-00-00 |
from US $2.41 |
||
| replacement | |||||
|
05
|
05
90338-12192-00 Plug(2Gu) |
90338-12192-00 |
from US $2.02 |
||
|
06
|
06
38V-26281-00-98 Cap, Grip UpperLow gloss black |
38V-26281-00-98 |
from US $29.04 |
||
|
07
|
07
493-26282-00-98 Cap, Grip UnderLow gloss black |
493-26282-00-98 |
from US $37.44 |
||
|
08
|
08
38V-2628H-00-00 Cap, Wire |
38V-2628H-00-00 |
from US $8.22 |
||
|
09
|
09
985-06050-16-00
Screw, Pan Head
|
985-06050-16-00 |
— | ||
| replacements | |||||
|
09
|
09
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
09
|
09
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
10
|
10
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
10
|
10
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
11
|
11
38V-26311-01-00
Cable, Throttle 1
|
38V-26311-01-00 |
— | ||
|
12
|
12
38V-26335-00-00
Cable, clutch
|
38V-26335-00-00 |
— | ||
|
13
|
13
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
13
|
13
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
14
|
14
90465-13169-00 Band |
90465-13169-00 |
from US $1.28 |
||
| replacement | |||||
|
14
|
14
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
15
|
15
53Y-26341-00-00
Cable, Brake
|
53Y-26341-00-00 |
— | ||
| replacement | |||||
|
15
|
15
53Y-26341-01-00
Wire, Brake Front
|
53Y-26341-01-00 |
— | ||
|
16
|
16
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
17
|
17
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
17
|
17
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
18
|
18
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
18
|
18
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
19
|
19
55V-26280-00-00 Rear View Mirror Assy(Left)Back mirror assy (left) |
55V-26280-00-00 |
from US $51.12 |
||
|
20
|
20
55V-26290-00-00 Rear View Mirror Assy (Right) |
55V-26290-00-00 |
US $51.12 |
||
|
21
|
21
90338-18122-00 Plug |
90338-18122-00 |
from US $1.63 |
||
