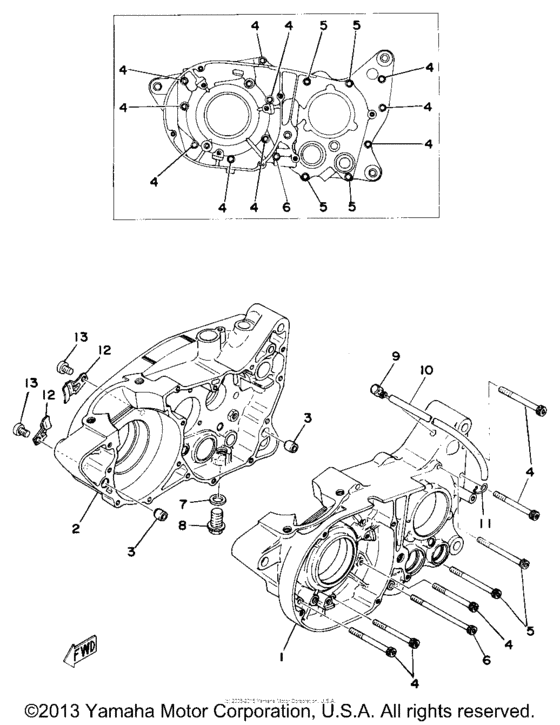

Crankcase Diagram Yamaha TY250
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
434-15111-01-00
Crankcase 1
|
434-15111-01-00 |
— | ||
|
2
|
2
434-15121-01-00
Crankcase 2
|
434-15121-01-00 |
— | ||
|
3
|
3
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
3
|
3
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
4
|
4
91316-06065-00 Bolt (431) |
91316-06065-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
91317-06065-00 Bolt |
91317-06065-00 |
from US $1.66 |
||
|
5
|
5
91316-06075-00 Bolt |
91316-06075-00 |
from US $1.56 |
||
| replacement | |||||
|
5
|
5
91317-06075-00 Bolt, Socket |
91317-06075-00 |
from US $1.50 |
||
|
6
|
6
91316-06100-00
Bolt, Socket Head
|
91316-06100-00 |
— | ||
|
7
|
7
137-15353-00-00
Gasket, Drain
|
137-15353-00-00 |
— | ||
| replacement | |||||
|
7
|
7
4F4-14766-00-00 Washer, Protector (Gasket) |
4F4-14766-00-00 |
from US $5.95 |
||
|
8
|
8
90109-14385-00 Bolt |
90109-14385-00 |
from US $9.63 |
||
|
9
|
9
583-15371-00-00 Breather |
583-15371-00-00 |
from US $1.70 |
||
|
10
|
10
904-46072-41-00 Hose (3Ak)3AK |
904-46072-41-00 |
from US $3.40 |
||
|
11
|
11
90462-05005-00 Clamp |
90462-05005-00 |
from US $2.13 |
||
|
12
|
12
434-15118-00-00
Holder
|
434-15118-00-00 |
— | ||
|
13
|
13
98501-08012-00
Screw, Pan Head (9806-08012)
9806-08012 |
98501-08012-00 |
— | ||
| replacement | |||||
|
13
|
13
985-80080-12-00
Screw, Pan Head (9806-08012)
9806-08012 |
985-80080-12-00 |
— | ||
