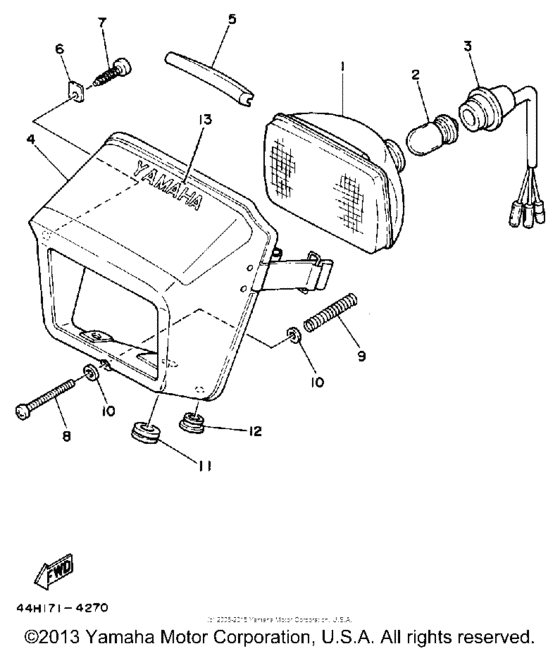

Headlight Diagram Yamaha TY350 TRIALS
- Year
- 1986
- Sales region
- USA
- Engine Capacity
- 350
- Model
- TY350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18A-84120-00-00 Lens Assembly (26A-84110-00)26A-84110-00 |
18A-84120-00-00 |
from US $31.59 |
||
|
2
|
2
527-84114-09-XX Bulb, Hl 6V25/25WHL 6V25/25W |
527-84114-09-XX |
US $6.30 |
||
|
3
|
3
26A-84140-00-00
Socket Cord Assembly
|
26A-84140-00-00 |
— | ||
|
4
|
4
44H-84130-00-00
Body Assembly, Headlight
|
44H-84130-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
26A-84143-00-00
Damper, Headlight Stay
|
26A-84143-00-00 |
— | ||
|
6
|
6
26A-8411H-00-00 Plate, Stopper |
26A-8411H-00-00 |
US $3.37 |
||
|
7
|
7
97701-40510-00 Screw, Tapping |
97701-40510-00 |
from US $1.56 |
||
| replacement | |||||
|
7
|
7
97707-40610-00 Screw, Tapping |
97707-40610-00 |
from US $1.66 |
||
|
8
|
8
97701-40555-00 Screw, Rim Adjuster |
97701-40555-00 |
from US $4.39 |
||
| replacement | |||||
|
8
|
8
18A-84131-00-00 Screw, Rim Adjusting |
18A-84131-00-00 |
from US $4.39 |
||
|
9
|
9
18A-84132-00-00 Spring, Screw |
18A-84132-00-00 |
from US $4.11 |
||
|
10
|
10
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
11
|
11
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.94 |
||
|
12
|
12
90480-10070-00 Grommet |
90480-10070-00 |
from US $1.98 |
||
| replacement | |||||
|
12
|
12
904-80100-17-00 Grommet |
904-80100-17-00 |
from US $2.08 |
||
|
13
|
13
44H-84141-00-00
Emblem, Headlight
|
44H-84141-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
