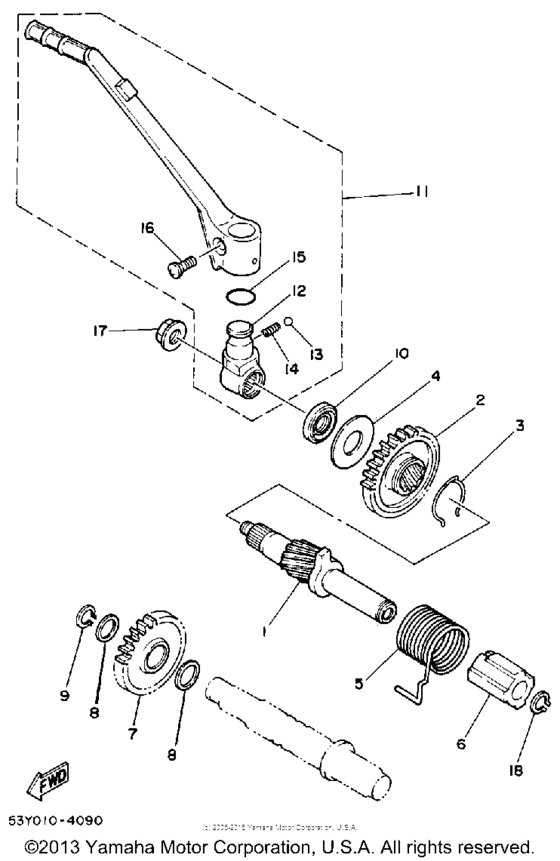

Starter Diagram Yamaha TY350 TRIALS
- Year
- 1986
- Sales region
- USA
- Engine Capacity
- 350
- Model
- TY350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38V-15660-00-00
Kick Axle Assembly
|
38V-15660-00-00 |
— | ||
|
2
|
2
38V-15641-01-00
Gear, Kick
|
38V-15641-01-00 |
— | ||
|
3
|
3
90468-26048-00 Clip |
90468-26048-00 |
from US $1.94 |
||
|
4
|
4
90201-20358-00
Washer, Plate
|
90201-20358-00 |
— | ||
|
5
|
5
90508-30632-00
Spring, Torsion 46Y
46Y |
90508-30632-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
46Y |
999-99999-99-00 |
— | ||
|
6
|
6
38V-15664-00-00
Guide, Spring
|
38V-15664-00-00 |
— | ||
|
7
|
7
38V-15651-00-00
Gear, Kick Idle (23T)
23T |
38V-15651-00-00 |
— | ||
|
8
|
8
90201-17545-00 Washer, Plate |
90201-17545-00 |
from US $3.26 |
||
|
9
|
9
99009-17400-00 Circlip |
99009-17400-00 |
from US $1.56 |
||
| replacement | |||||
|
9
|
9
93410-17X00-00 Circlip |
93410-17X00-00 |
US $1.50 |
||
|
10
|
10
931-02203-09-00 Oil Seal (25Y) |
931-02203-09-00 |
from US $10.69 |
||
|
11
|
11
53Y-15620-00-00
Kick Crank Assembly
|
53Y-15620-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
53Y-15621-00-00
Boss, Kick Crank
|
53Y-15621-00-00 |
— | ||
|
13
|
13
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
14
|
14
90501-13720-00 Spring, Compression |
90501-13720-00 |
from US $2.55 |
||
|
15
|
15
93210-19501-00 O-Ring |
93210-19501-00 |
from US $1.35 |
||
| replacement | |||||
|
15
|
15
93210-19758-00 O-Ring |
93210-19758-00 |
from US $1.39 |
||
|
16
|
16
90157-06048-00 Screw, Countersunk |
90157-06048-00 |
from US $2.27 |
||
| replacement | |||||
|
16
|
16
90152-06010-00 Screw, Countersunk (5Y1) |
90152-06010-00 |
from US $2.27 |
||
|
17
|
17
901-79122-44-00
Nut
|
901-79122-44-00 |
— | ||
| replacement | |||||
|
17
|
17
90179-12659-00 Nut |
90179-12659-00 |
from US $1.81 |
||
|
18
|
18
93410-17037-00 Circlip |
93410-17037-00 |
from US $1.70 |
||
