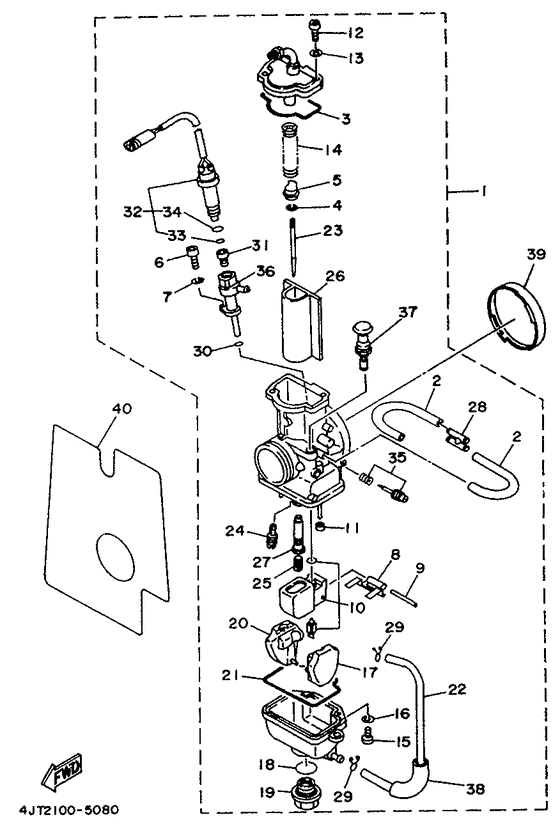

Carburetor Diagram Yamaha TZ125
- Year
- 1995
- Colour
- White (WW; 0036)
- Model code
- 4JT2
- Sales region
- North America (999)
- Engine Capacity
- 125
- Model
- TZ125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4JT-14101-10-00
Carburetor Assy 1
|
4JT-14101-10-00 |
— | ||
|
02
|
02
310-14196-00-00
Pipe, Overflow
|
310-14196-00-00 |
— | ||
|
03
|
03
3JD-14147-00-00 O-Ring |
3JD-14147-00-00 |
from US $13 |
||
|
04
|
04
256-14919-00-00 Clip |
256-14919-00-00 |
from US $3.12 |
||
|
05
|
05
3JD-14194-00-00
Ring
|
3JD-14194-00-00 |
— | ||
|
06
|
06
91317-04010-00 Bolt |
91317-04010-00 |
from US $1.28 |
||
|
07
|
07
92907-04100-00 Washer, Spring |
92907-04100-00 |
from US $1.21 |
||
|
08
|
08
363-14187-00-00
Arm, Float
|
363-14187-00-00 |
— | ||
|
09
|
09
353-14186-00-00 Pin, Float |
353-14186-00-00 |
from US $4.39 |
||
|
10
|
10
4DP-14107-35-00 Needle Valve Set |
4DP-14107-35-00 |
from US $41.65 |
||
| replacement | |||||
|
10
|
10
3JD-14107-35-00 Needle Valve Set |
3JD-14107-35-00 |
from US $51.84 |
||
|
11
|
11
214-14118-00-00 Cap |
214-14118-00-00 |
from US $10.39 |
||
|
12
|
12
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
13
|
13
92907-04100-00 Washer, Spring |
92907-04100-00 |
from US $1.21 |
||
|
14
|
14
3JD-14131-00-00
Spring, Throttle Valve
|
3JD-14131-00-00 |
— | ||
|
15
|
15
98507-03010-00 Screw, Pan Head |
98507-03010-00 |
from US $1.56 |
||
|
16
|
16
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
17
|
17
3JD-14185-00-00
Float
|
3JD-14185-00-00 |
— | ||
|
18
|
18
3JE-14561-00-00 O-Ring |
3JE-14561-00-00 |
from US $9.49 |
||
|
19
|
19
4DP-14115-00-00
Plug, Screw
|
4DP-14115-00-00 |
— | ||
|
20
|
20
3JE-14185-00-00
Float
|
3JE-14185-00-00 |
— | ||
|
21
|
21
3JE-14147-00-00 O-Ring |
3JE-14147-00-00 |
from US $14.31 |
||
|
22
|
22
3V3-14987-00-00 Hose |
3V3-14987-00-00 |
from US $24.51 |
||
|
23
|
23
275-14116-F0-00
Needle
|
275-14116-F0-00 |
— | ||
|
24
|
24
193-14142-20-00 Jet, Pilot #20Std |
193-14142-20-00 |
from US $10.48 |
||
|
24
|
24
193-14142-15-00 Jet, Pilot (# 15)Ur |
193-14142-15-00 |
from US $9.61 |
||
| replacement | |||||
|
24
|
24
193-14142-15-A0 Jet, Pilot (# 15)Ur |
193-14142-15-A0 |
from US $10.46 |
||
|
24
|
24
193-14142-17-00 Jet, Pilot #17 (#17.5)Ur |
193-14142-17-00 |
from US $10.94 |
||
|
25
|
25
137-14143-82-00 Jet, Main (#410)Ur |
137-14143-82-00 |
from US $10.66 |
||
|
25
|
25
137-14143-84-00 Jet, Main (#420)Ur |
137-14143-84-00 |
from US $10.66 |
||
|
25
|
25
137-14143-86-00 Jet, Main (#430)Ur |
137-14143-86-00 |
from US $10.66 |
||
|
25
|
25
137-14143-88-00 Jet, Main (#440)Ur |
137-14143-88-00 |
from US $10.66 |
||
|
25
|
25
137-14143-90-00 Jet, Main (#450)Ur |
137-14143-90-00 |
from US $9.76 |
||
|
25
|
25
137-14143-92-00 Jet, Main (#460)Ur |
137-14143-92-00 |
from US $9.76 |
||
|
25
|
25
137-14143-94-00 Jet, Main (#470)Ur |
137-14143-94-00 |
from US $9.76 |
||
|
25
|
25
137-14143-96-00 Jet, Main (#480)Ur |
137-14143-96-00 |
from US $9.77 |
||
|
25
|
25
137-14143-66-00 Jet, Main (#330)Ur |
137-14143-66-00 |
from US $9.31 |
||
| replacement | |||||
|
25
|
25
137-14143-66-A1 Jet, Main (#330)Ur |
137-14143-66-A1 |
from US $11.14 |
||
|
25
|
25
137-14143-98-00 Jet, Main (490)Ur |
137-14143-98-00 |
from US $7.61 |
||
|
25
|
25
137-14143-68-00 Jet, Main (#340)Ur |
137-14143-68-00 |
from US $10.62 |
||
|
25
|
25
137-1414K-00-00 Jet, Main (500)Ur |
137-1414K-00-00 |
from US $9.45 |
||
|
25
|
25
137-14143-70-00 Jet, Main (350)Ur |
137-14143-70-00 |
from US $9.77 |
||
|
25
|
25
137-1414K-04-00
Jet, Main (#520)
Ur |
137-1414K-04-00 |
— | ||
|
25
|
25
137-14143-72-00 Jet, Main (360)Ur |
137-14143-72-00 |
from US $9.77 |
||
|
25
|
25
137-1414K-08-00 Jet, Main (540)Ur |
137-1414K-08-00 |
from US $10.78 |
||
|
25
|
25
137-14143-74-00 Jet, Main (370)Ur |
137-14143-74-00 |
from US $10.67 |
||
|
25
|
25
137-1414K-12-00 Jet, Main (560)Std |
137-1414K-12-00 |
from US $10.78 |
||
|
25
|
25
137-14143-76-00 Jet, Main (380)Ur |
137-14143-76-00 |
from US $10.13 |
||
|
25
|
25
137-14143-78-00 Jet, Main (#390)Ur |
137-14143-78-00 |
from US $9.77 |
||
|
25
|
25
137-14143-80-00 Jet, Main (#400)Ur |
137-14143-80-00 |
from US $10.66 |
||
|
26
|
26
4DP-14112-35-00
Valve, Throttle 1
|
4DP-14112-35-00 |
— | ||
|
27
|
27
3TC-14141-R7-00
Nozzle, Main
Std |
3TC-14141-R7-00 |
— | ||
|
27
|
27
3TC-14141-R3-00
Nozzle, Main (R-3)
Ur |
3TC-14141-R3-00 |
— | ||
|
27
|
27
3TC-14141-R5-00
Nozzle, Main (R-5)
Ur |
3TC-14141-R5-00 |
— | ||
|
27
|
27
3TC-14141-R4-00
Nozzle, Main (R-4)
Ur |
3TC-14141-R4-00 |
— | ||
|
28
|
28
8JO-14251-00-00
Nipple
|
8JO-14251-00-00 |
— | ||
|
29
|
29
8A7-14139-00-00 Clip, Pipe |
8A7-14139-00-00 |
from US $3.40 |
||
|
30
|
30
214-14147-00-00 O-Ring |
214-14147-00-00 |
from US $10.66 |
||
|
31
|
31
3G2-14231-11-00 Jet, Power (# 55)Ur |
3G2-14231-11-00 |
from US $12.80 |
||
|
31
|
31
3G2-14231-12-00 Jet, MainStd |
3G2-14231-12-00 |
from US $12.02 |
||
|
31
|
31
3G2-14231-13-00 Jet, Main #65 (#65)Ur |
3G2-14231-13-00 |
from US $11.38 |
||
|
32
|
32
3LC-1410H-00-00
Fuel Cut Solenoid Valve
|
3LC-1410H-00-00 |
— | ||
|
33
|
33
3LC-14147-00-00
O-Ring
|
3LC-14147-00-00 |
— | ||
|
34
|
34
3LC-1416A-00-00 O-Ring |
3LC-1416A-00-00 |
from US $6.32 |
||
|
35
|
35
3JD-14104-00-00 Air Screw Set |
3JD-14104-00-00 |
from US $8.21 |
||
| replacement | |||||
|
35
|
35
4GL-14104-00-00 Air Screw Set |
4GL-14104-00-00 |
from US $10.84 |
||
|
36
|
36
4DP-14261-00-00
Holder
|
4DP-14261-00-00 |
— | ||
|
37
|
37
3JE-14171-00-00 Plunger, Starter |
3JE-14171-00-00 |
from US $45.45 |
||
|
38
|
38
4JT-14349-00-00
Pipe
|
4JT-14349-00-00 |
— | ||
|
39
|
39
4JT-14157-00-00 Cover, Mixing |
4JT-14157-00-00 |
US $48.98 |
||
|
40
|
40
4JT-14283-00-00 Cover, Carburetor 1 |
4JT-14283-00-00 |
US $27.99 |
||
