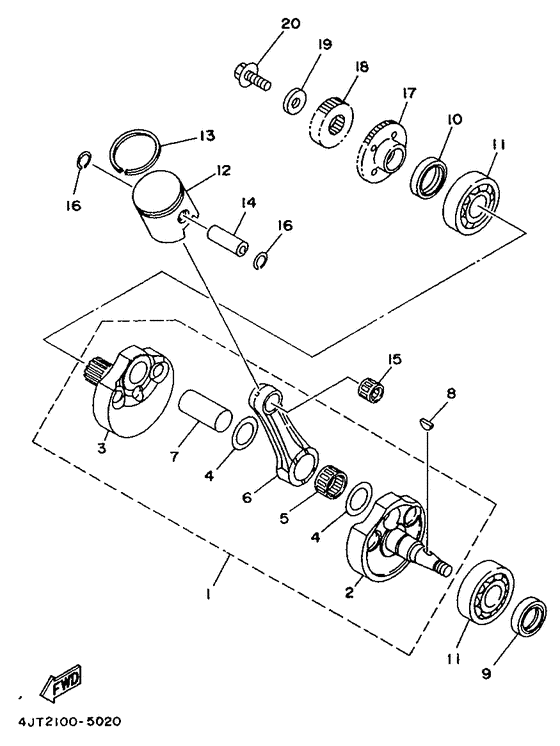

Crankshaft & Piston Diagram Yamaha TZ125
- Year
- 1995
- Colour
- White (WW; 0036)
- Model code
- 4JT2
- Sales region
- North America (999)
- Engine Capacity
- 125
- Model
- TZ125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4JT-11400-01-00
Crankshaft Assy
|
4JT-11400-01-00 |
— | ||
| replacement | |||||
|
01
|
01
4JT-11400-02-00
Crankshaft Assy
|
4JT-11400-02-00 |
— | ||
|
02
|
02
4JT-11412-01-00
Crank 1
|
4JT-11412-01-00 |
— | ||
|
03
|
03
4JT-11422-01-00
Crank 2
|
4JT-11422-01-00 |
— | ||
|
04
|
04
90209-24327-00 Washer |
90209-24327-00 |
from US $17.99 |
||
|
05
|
05
93310-524P1-00 Bearing, Cylindrical(4Jt) |
93310-524P1-00 |
from US $98.51 |
||
| replacement | |||||
|
05
|
05
93310-52403-00 Bearing |
93310-52403-00 |
from US $98.51 |
||
|
06
|
06
4JT-11651-00-00 Rod, Connecting |
4JT-11651-00-00 |
US $136.48 |
||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
4JT-11681-00-00
Pin, Crank 1
|
4JT-11681-00-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
90280-40010-00
Key, woodruff
|
90280-40010-00 |
— | ||
|
09
|
09
93102-25142-00 Oil Seal |
93102-25142-00 |
from US $13.56 |
||
|
10
|
10
93103-32177-00 Oil Seal |
93103-32177-00 |
from US $24.37 |
||
| replacements | |||||
|
10
|
10
93103-32807-00 Oil Seal |
93103-32807-00 |
US $26.35 |
||
|
10
|
10
931-03321-83-00 Oil Seal |
931-03321-83-00 |
from US $26.35 |
||
|
11
|
11
93306-30566-00 Bearing |
93306-30566-00 |
from US $60.51 |
||
|
12
|
12
4DP-11631-01-D0 Piston (Std)Ur |
4DP-11631-01-D0 |
from US $104.70 |
||
| replacement | |||||
|
12
|
12
4DP-11631-02-D0 Piston (Std)Ur |
4DP-11631-02-D0 |
from US $104.70 |
||
|
12
|
12
4DP-11631-01-A0 Piston (Std)Ur |
4DP-11631-01-A0 |
from US $143.69 |
||
| replacement | |||||
|
12
|
12
4DP-11631-02-A0 Piston (Std)Ur |
4DP-11631-02-A0 |
from US $143.69 |
||
|
12
|
12
4DP-11631-01-B0 Piston (Std)Ur |
4DP-11631-01-B0 |
from US $143.69 |
||
| replacement | |||||
|
12
|
12
4DP-11631-02-B0 Piston (Std)Ur |
4DP-11631-02-B0 |
from US $143.69 |
||
|
12
|
12
4DP-11631-01-C0 Piston (Std)Ur |
4DP-11631-01-C0 |
from US $121.98 |
||
| replacement | |||||
|
12
|
12
4DP-11631-02-C0 Piston (Std)Ur |
4DP-11631-02-C0 |
from US $121.98 |
||
|
13
|
13
1RK-11611-01-00 Ring, Piston |
1RK-11611-01-00 |
from US $65.35 |
||
|
14
|
14
137-11633-10-00 Pin, Piston |
137-11633-10-00 |
from US $18.99 |
||
|
15
|
15
93310-316D5-00 Bearing, Cylindrical(4Dp) |
93310-316D5-00 |
from US $26.92 |
||
|
16
|
16
934-50171-29-00 Circlip |
934-50171-29-00 |
from US $1.35 |
||
|
17
|
17
4JT-11536-00-00 Gear, Drive |
4JT-11536-00-00 |
from US $174.08 |
||
|
18
|
18
4JT-16111-01-00 Gear, Primary Drive |
4JT-16111-01-00 |
US $59.37 |
||
|
19
|
19
90201-10144-00 Washer, Plate |
90201-10144-00 |
from US $2.13 |
||
|
20
|
20
90105-10445-00 Bolt, Flange |
90105-10445-00 |
from US $6.52 |
||
