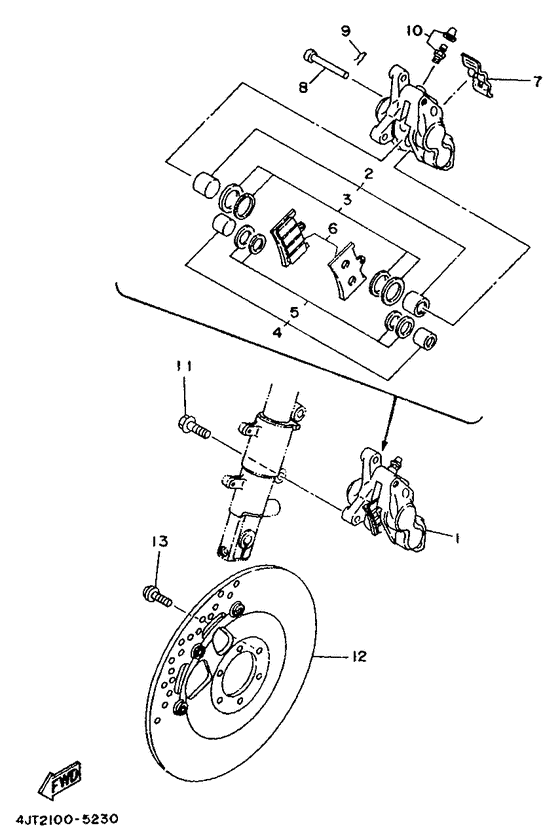

Front brake. caliper Diagram Yamaha TZ125
- Year
- 1995
- Colour
- White (WW; 0036)
- Model code
- 4JT2
- Sales region
- North America (999)
- Engine Capacity
- 125
- Model
- TZ125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4FL-2580U-00-00
Caliper Assy (Right)
|
4FL-2580U-00-00 |
— | ||
|
02
|
02
3GM-W0057-00-00 Piston Assembly, Caliper |
3GM-W0057-00-00 |
US $133 |
||
|
03
|
03
3GM-W0047-00-00 Caliper Seal Kit |
3GM-W0047-00-00 |
from US $47.39 |
||
|
04
|
04
3MA-W0057-10-00
Piston Assy, Caliper
|
3MA-W0057-10-00 |
— | ||
|
05
|
05
3MA-W0047-10-00
Caliper Seal Kit
|
3MA-W0047-10-00 |
— | ||
| replacement | |||||
|
05
|
05
3MA-25803-10-00 Caliper Seal Kit |
3MA-25803-10-00 |
from US $36.34 |
||
|
06
|
06
3MA-W0045-00-00 Brake Pad Kit |
3MA-W0045-00-00 |
US $75.99 |
||
| replacement | |||||
|
06
|
06
4SV-25805-00-00 Brake Pad Kit |
4SV-25805-00-00 |
from US $75.99 |
||
|
07
|
07
4FL-25919-00-00
Support, Pad
|
4FL-25919-00-00 |
— | ||
|
08
|
08
3MA-25924-00-00 Pin, Pad |
3MA-25924-00-00 |
US $19.41 |
||
|
09
|
09
3MA-25925-00-00 Clip |
3MA-25925-00-00 |
from US $10.91 |
||
|
10
|
10
1J3-W0048-00-00 Bleed Screw Kit |
1J3-W0048-00-00 |
from US $14.45 |
||
|
11
|
11
90105-10725-00 Bolt, Washer Based |
90105-10725-00 |
from US $7.61 |
||
|
12
|
12
3XV-2581T-10-00
Disk Brake Assy
|
3XV-2581T-10-00 |
— | ||
|
13
|
13
901-09087-18-00
Bolt,hex. Socket But
|
901-09087-18-00 |
— | ||
| replacement | |||||
|
13
|
13
90111-08084-00 Bolt,hex. Socket Button |
90111-08084-00 |
from US $5.81 |
||
