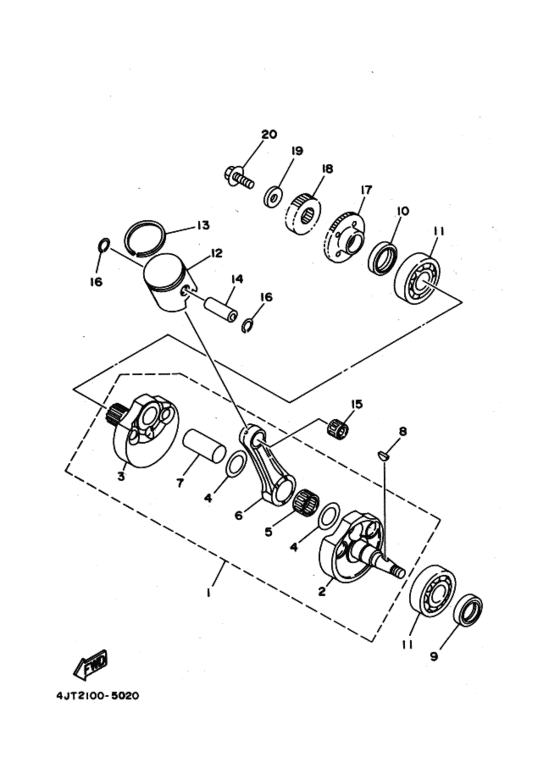

Crankshaft & Piston Diagram Yamaha TZ125
- Year
- 1996
- Colour
- White (WW; 0036)
- Model code
- 4JT3
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- TZ125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4JT-11400-01-00
Crankshaft Assy
ＣＲＡＮＫＳＨＡＦＴ ＡＳＳＹ; |
4JT-11400-01-00 |
— | ||
| replacement | |||||
|
1
|
1
4JT-11400-02-00
Crankshaft Assy
ＣＲＡＮＫＳＨＡＦＴ ＡＳＳＹ; |
4JT-11400-02-00 |
— | ||
|
2
|
2
4JT-11412-01-00
Crank 1
．ＣＲＡＮＫ １; |
4JT-11412-01-00 |
— | ||
|
3
|
3
4JT-11422-01-00
Crank 2
．ＣＲＡＮＫ ２; |
4JT-11422-01-00 |
— | ||
|
4
|
4
90209-24327-00 Washer．ＷＡＳＨＥＲ; |
90209-24327-00 |
from US $17.99 |
||
|
5
|
5
93310-524P1-00 Bearing, Cylindrical(4Jt)．ＢＥＡＲＩＮＧ， ＣＹＬＩＮＤＲＩＣＡＬ; |
93310-524P1-00 |
from US $98.51 |
||
| replacement | |||||
|
5
|
5
93310-52403-00 Bearing．ＢＥＡＲＩＮＧ， ＣＹＬＩＮＤＲＩＣＡＬ; |
93310-52403-00 |
from US $98.51 |
||
|
6
|
6
4JT-11651-00-00 Rod, Connecting．ＲＯＤ， ＣＯＮＮＥＣＴＩＮＧ; |
4JT-11651-00-00 |
US $136.48 |
||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
．ＲＯＤ， ＣＯＮＮＥＣＴＩＮＧ; |
999-99999-99-00 |
— | ||
|
7
|
7
4JT-11681-00-00
Pin, Crank 1
．ＰＩＮ， ＣＲＡＮＫ １; |
4JT-11681-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
．ＰＩＮ， ＣＲＡＮＫ １; |
999-99999-99-00 |
— | ||
|
8
|
8
90280-04001-00
Key, Woodruff(3Ma)
ＫＥＹ， ＷＯＯＤＲＵＦＦ; |
90280-04001-00 |
— | ||
| replacement | |||||
|
8
|
8
90280-04051-00
Key, Woodruff
ＫＥＹ， ＷＯＯＤＲＵＦＦ; |
90280-04051-00 |
— | ||
|
9
|
9
93102-25142-00 Oil SealＯＩＬ ＳＥＡＬ; |
93102-25142-00 |
from US $13.82 |
||
|
10
|
10
93103-32177-00 Oil SealＯＩＬ ＳＥＡＬ; |
93103-32177-00 |
from US $24.37 |
||
| replacements | |||||
|
10
|
10
93103-32807-00 Oil SealＯＩＬ ＳＥＡＬ; |
93103-32807-00 |
US $26.35 |
||
|
10
|
10
931-03321-83-00 Oil SealＯＩＬ ＳＥＡＬ; |
931-03321-83-00 |
from US $26.35 |
||
|
11
|
11
93306-30566-00 BearingＢＥＡＲＩＮＧ; |
93306-30566-00 |
from US $60.51 |
||
|
12
|
12
4DP-11631-01-A0 Piston (Std)ＰＩＳＴＯＮ ; ＳＴＤ; ＵＲ |
4DP-11631-01-A0 |
from US $143.69 |
||
| replacement | |||||
|
12
|
12
4DP-11631-02-A0 Piston (Std)ＰＩＳＴＯＮ ; ＳＴＤ; ＵＲ |
4DP-11631-02-A0 |
from US $143.69 |
||
|
12
|
12
4DP-11631-01-B0 Piston (Std)ＰＩＳＴＯＮ ; ＳＴＤ; ＵＲ |
4DP-11631-01-B0 |
from US $143.69 |
||
| replacement | |||||
|
12
|
12
4DP-11631-02-B0 Piston (Std)ＰＩＳＴＯＮ ; ＳＴＤ; ＵＲ |
4DP-11631-02-B0 |
from US $143.69 |
||
|
12
|
12
4DP-11631-01-C0 Piston (Std)ＰＩＳＴＯＮ ; ＳＴＤ; ＵＲ |
4DP-11631-01-C0 |
from US $121.98 |
||
| replacement | |||||
|
12
|
12
4DP-11631-02-C0 Piston (Std)ＰＩＳＴＯＮ ; ＳＴＤ; ＵＲ |
4DP-11631-02-C0 |
from US $121.98 |
||
|
12
|
12
4DP-11631-01-D0 Piston (Std)ＰＩＳＴＯＮ ; ＳＴＤ; ＵＲ |
4DP-11631-01-D0 |
from US $104.70 |
||
| replacement | |||||
|
12
|
12
4DP-11631-02-D0 Piston (Std)ＰＩＳＴＯＮ ; ＳＴＤ; ＵＲ |
4DP-11631-02-D0 |
from US $104.70 |
||
|
13
|
13
1RK-11611-01-00 Ring, PistonＲＩＮＧ， ＰＩＳＴＯＮ; |
1RK-11611-01-00 |
from US $65.35 |
||
|
14
|
14
137-11633-10-00 Pin, PistonＰＩＮ， ＰＩＳＴＯＮ; |
137-11633-10-00 |
from US $18.99 |
||
|
15
|
15
93310-316D5-00 Bearing, Cylindrical(4Dp)ＢＥＡＲＩＮＧ， ＣＹＬＩＮＤＲＩＣＡＬ; |
93310-316D5-00 |
from US $26.92 |
||
|
16
|
16
934-50171-29-00 CirclipＣＩＲＣＬＩＰ; |
934-50171-29-00 |
from US $1.35 |
||
|
17
|
17
4JT-11536-00-00 Gear, DriveＧＥＡＲ， ＤＲＩＶＥ; |
4JT-11536-00-00 |
from US $174.08 |
||
|
18
|
18
4JT-16111-01-00 Gear, Primary DriveＧＥＡＲ， ＰＲＩＭＡＲＹ ＤＲＩＶＥ; |
4JT-16111-01-00 |
US $59.37 |
||
|
19
|
19
90201-10144-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-10144-00 |
from US $2.13 |
||
|
20
|
20
90105-10445-00 Bolt, FlangeＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
90105-10445-00 |
from US $6.52 |
||
