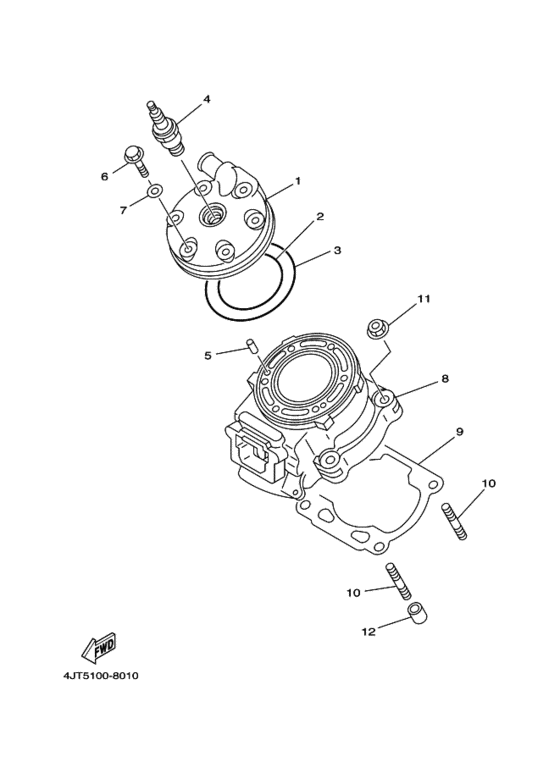

Cylinder head Diagram Yamaha TZ125
- Year
- 1998
- Colour
- White (WW; 0036)
- Model code
- 4JT5
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- TZ125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4JT-11111-20-00
Head, Cylinder 1
ＨＥＡＤ， ＣＹＬＩＮＤＥＲ １; |
4JT-11111-20-00 |
— | ||
|
2
|
2
93210-63442-00 O-RingＯ−ＲＩＮＧ; |
93210-63442-00 |
from US $6.66 |
||
|
3
|
3
93210-88696-00 O-RingＯ−ＲＩＮＧ; |
93210-88696-00 |
from US $7.79 |
||
|
4
|
4
94709-00373-00
Plug, Spark (R6385-105P)
ＰＬＵＧ， ＳＰＡＲＫ ; Ｒ６３８５−１０５Ｐ; ＮＧＫ |
94709-00373-00 |
— | ||
|
5
|
5
93604-08071-00 Pin, DowelＰＩＮ， ＤＯＷＥＬ; |
93604-08071-00 |
from US $1.45 |
||
|
6
|
6
90105-063A0-00 Bolt, Washer BasedＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
90105-063A0-00 |
from US $2.59 |
||
| replacement | |||||
|
6
|
6
95817-06040-00 Bolt, FlangeＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
95817-06040-00 |
from US $1.21 |
||
|
7
|
7
90430-06166-00 GasketＧＡＳＫＥＴ; |
90430-06166-00 |
from US $1.28 |
||
|
8
|
8
4JT-11311-10-00
Cylinder 1
ＣＹＬＩＮＤＥＲ １; |
4JT-11311-10-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
ＣＹＬＩＮＤＥＲ １; |
999-99999-99-00 |
— | ||
|
9
|
9
4JT-11351-02-00 Gasket, Cylinder (0.8T)．ＧＡＳＫＥＴ， ＣＹＬＩＮＤＥＲ ; ０８Ｔ; ＳＴＤ |
4JT-11351-02-00 |
from US $20.26 |
||
|
9
|
9
4JT-11351-12-00 Gasket, Cylinder (0.7T)．ＧＡＳＫＥＴ， ＣＹＬＩＮＤＥＲ ; ０７Ｔ; ＵＲ |
4JT-11351-12-00 |
from US $20.26 |
||
|
9
|
9
4JT-11351-22-00 Gasket, Cylinder (0.6T)．ＧＡＳＫＥＴ， ＣＹＬＩＮＤＥＲ ; ０６Ｔ; ＵＲ |
4JT-11351-22-00 |
from US $19 |
||
|
10
|
10
90116-08409-00 Bolt, StudＢＯＬＴ， ＳＴＵＤ; |
90116-08409-00 |
from US $5.38 |
||
|
11
|
11
957-07085-00-00
Nut, Flange
ＮＵＴ， ＦＬＡＮＧＥ; |
957-07085-00-00 |
— | ||
| replacement | |||||
|
11
|
11
90179-08491-00 Nut(55X)ＮＵＴ， ＦＬＡＮＧＥ; |
90179-08491-00 |
from US $1.28 |
||
|
12
|
12
995-10101-14-00
Pin, Dowel
ＰＩＮ， ＤＯＷＥＬ; |
995-10101-14-00 |
— | ||
| replacement | |||||
|
12
|
12
99530-10114-00 Pin, DowelＰＩＮ， ＤＯＷＥＬ; |
99530-10114-00 |
from US $1.66 |
||
