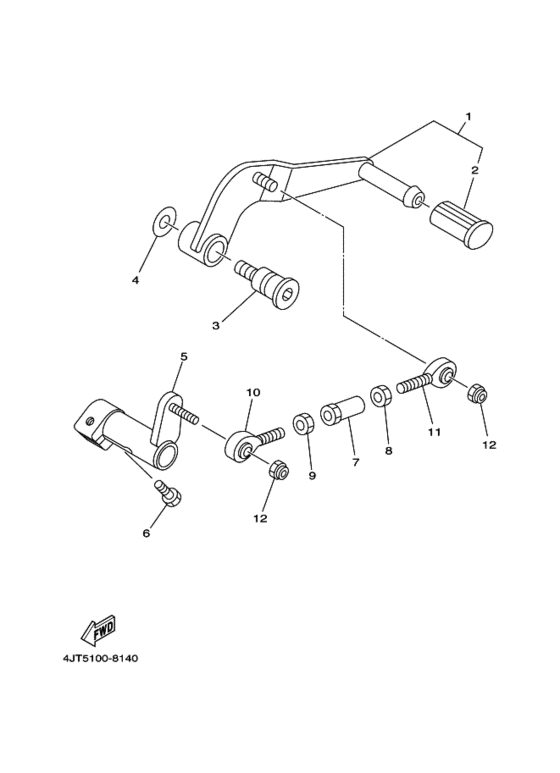

Shift shaft Diagram Yamaha TZ125
- Year
- 1998
- Colour
- White (WW; 0036)
- Model code
- 4JT5
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- TZ125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4JT-18110-20-00 Shift Pedal AssyＳＨＩＦＴ ＰＥＤＡＬ ＡＳＳＹ; |
4JT-18110-20-00 |
US $193.03 |
||
|
2
|
2
4A0-18113-00-00 Cover, Shift Pedal．ＣＯＶＥＲ， ＳＨＩＦＴ ＰＥＤＡＬ; |
4A0-18113-00-00 |
from US $7.37 |
||
| replacement | |||||
|
2
|
2
240-18113-00-00 Cover, Shift Pedal．ＣＯＶＥＲ， ＳＨＩＦＴ ＰＥＤＡＬ; |
240-18113-00-00 |
from US $7.37 |
||
|
3
|
3
90109-087F6-00 BoltＢＯＬＴ; |
90109-087F6-00 |
from US $65.35 |
||
|
4
|
4
90201-087F0-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-087F0-00 |
from US $1.70 |
||
|
5
|
5
4JT-18112-10-00
Arm, Shift
ＡＲＭ， ＳＨＩＦＴ; |
4JT-18112-10-00 |
— | ||
|
6
|
6
970-17060-20-00 BoltＢＯＬＴ; |
970-17060-20-00 |
from US $1.07 |
||
|
7
|
7
4JT-18115-10-00 Rod, ShiftＲＯＤ， ＳＨＩＦＴ; |
4JT-18115-10-00 |
US $42.88 |
||
|
8
|
8
901-70062-28-00 Nut (Counter Clockwise)ＮＵＴ; ＣＯＵＮＴＥＲ ＣＬＯＣＫＷＩＳＥ |
901-70062-28-00 |
from US $1.70 |
||
|
9
|
9
95304-06700-00 NutＮＵＴ; |
95304-06700-00 |
from US $1.42 |
||
| replacements | |||||
|
9
|
9
9538R-06700-00 NutＮＵＴ; |
9538R-06700-00 |
from US $1.42 |
||
|
9
|
9
953-80067-00-00 NutＮＵＴ; |
953-80067-00-00 |
from US $1.34 |
||
|
10
|
10
5F7-18116-00-00 Joint, Rod 1ＪＯＩＮＴ， ＲＯＤ １; |
5F7-18116-00-00 |
from US $70.51 |
||
|
11
|
11
3TC-18117-00-00 Joint, Rod 2ＪＯＩＮＴ， ＲＯＤ ２; |
3TC-18117-00-00 |
from US $70.13 |
||
|
12
|
12
956-07061-00-00
Nut, U
ＮＵＴ， Ｕ; |
956-07061-00-00 |
— | ||
| replacement | |||||
|
12
|
12
95617-06100-00 Nut, UＮＵＴ， Ｕ; |
95617-06100-00 |
from US $1.21 |
||
